SGM8558-2.pdf• 230mA Output Drive Capability
• Low Input Offset Voltage: 15μV (MAX)
• Low Noise: 8nV/ Hz at 1kHz
• 230mA Current Limitation
• Over-Temperature Protection
• Supply Voltage Range: 2.8V to 5.5V
• Supply Current: 0.86mA/Amplifier (TYP)
0.2μA (TYP) Shutdown Current for SGM8558-3
• Gain-Bandwidth Product: 15MHz
• High Slew Rate: 8V/μs
• Voltage Gain (RL = 2kΩ): 139dB
• Power Supply Rejection Ratio: 130dB
• No Phase Reversal for Overdriven Inputs
• Unity-Gain Stable for Capacitive Loads to 780pF
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging: SGM8558-1 Available in Green
SOIC-8 and SOT-23-5 Packages SGM8558-2 Available

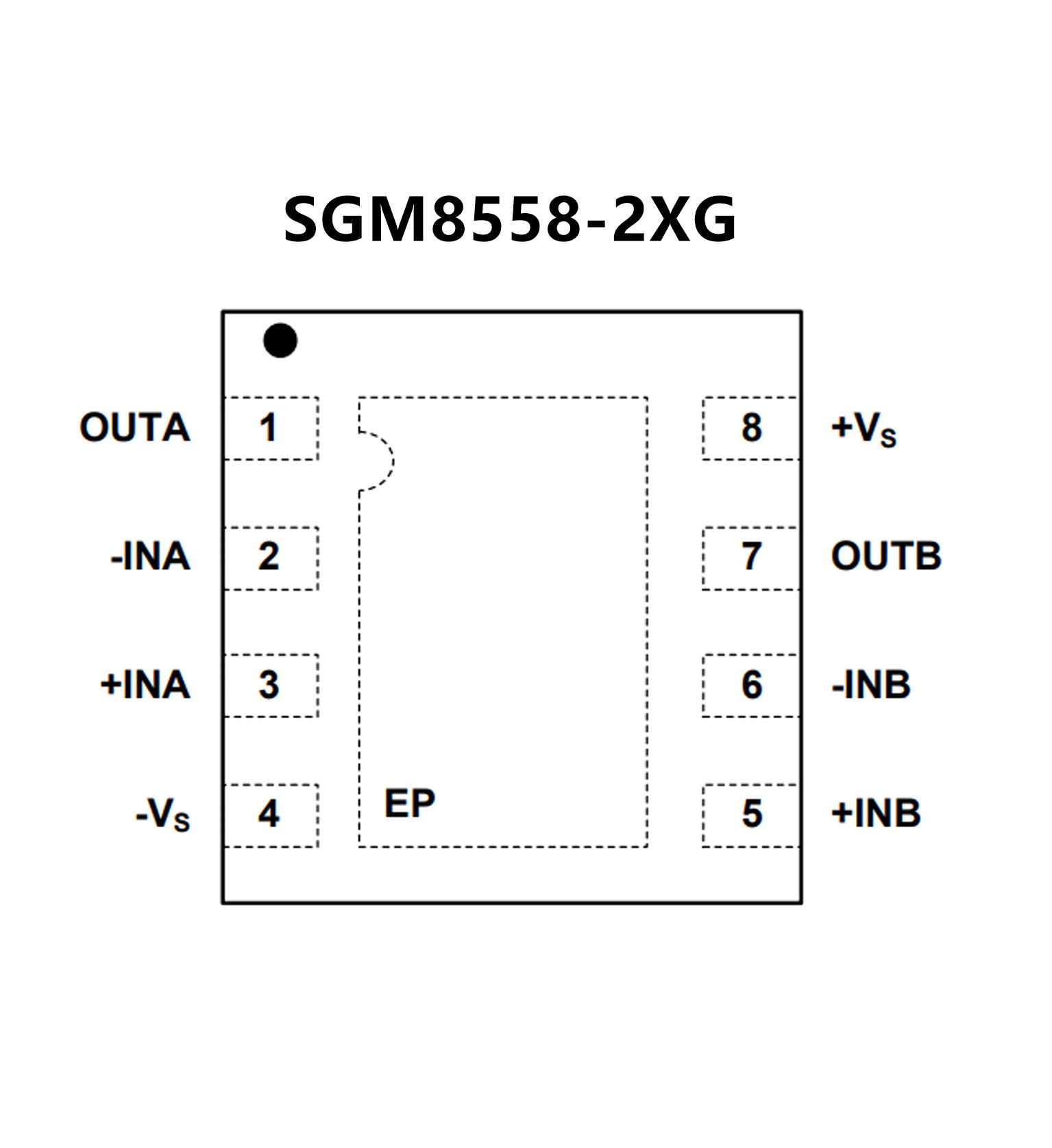

in Green TDFN-3×3-8L and SOIC-8 Packages
SGM8558-3 Available in a Green SOT-23-6 Package
SGM8558-4 Available in a Green SOIC-14 Package
• Low offset voltage: 65 μV maximum
• Low input bias currents: 1 pA maximum
• Low noise: 8 nV/√Hz
• Wide bandwidth: 10 MHz
• High open-loop gain: 1000 V/mV
• Unity gain stable
• Single-supply operation: 2.7 V to 5.5 V

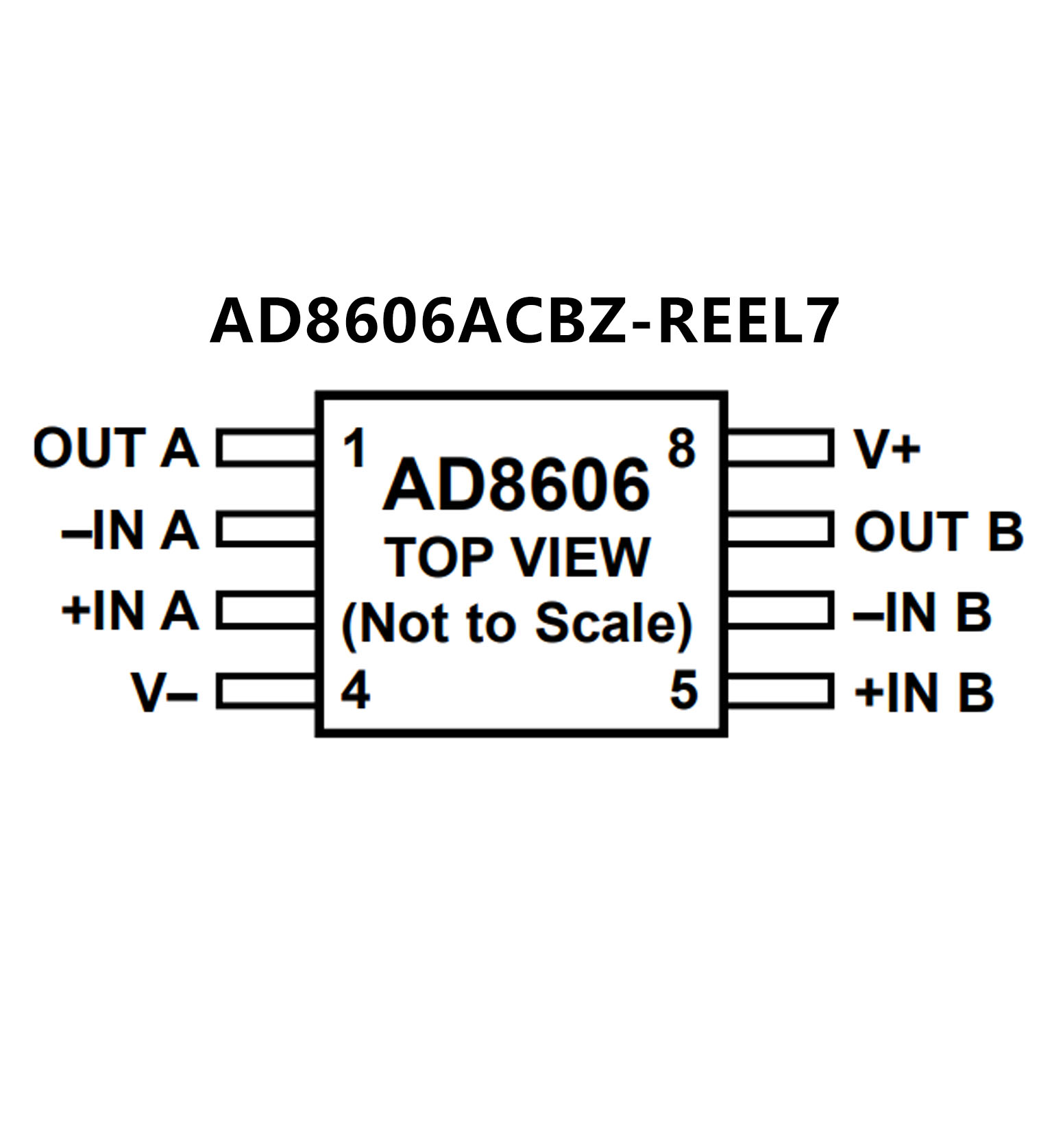

• 5-ball WLCSP for single (AD8605) and
• 8-ball WLCSP for dual (AD8606)
