Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier,SGM8584XS14G Replace TLV4313.
SGM8584XS14G
SGM8584XS14G.pdf
SGM8584XS14G.pdfFEATURES
• Low Offset Voltage: 100μV (MAX)
• Rail-to-Rail Input and Output Swings
• 2.5V to 5.5V Single-Supply Operation
• Voltage Gain: 135dB (TYP) at 5V
• PSRR: 115dB (TYP)
• CMRR: 92dB (TYP)
• Low Input Bias Current: 60pA
• Low Supply Current: 430μA/Amplifier
• Overload Recovery Time: 30μs (at VS = 5V)
• No External Capacitors Required
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14
Packages

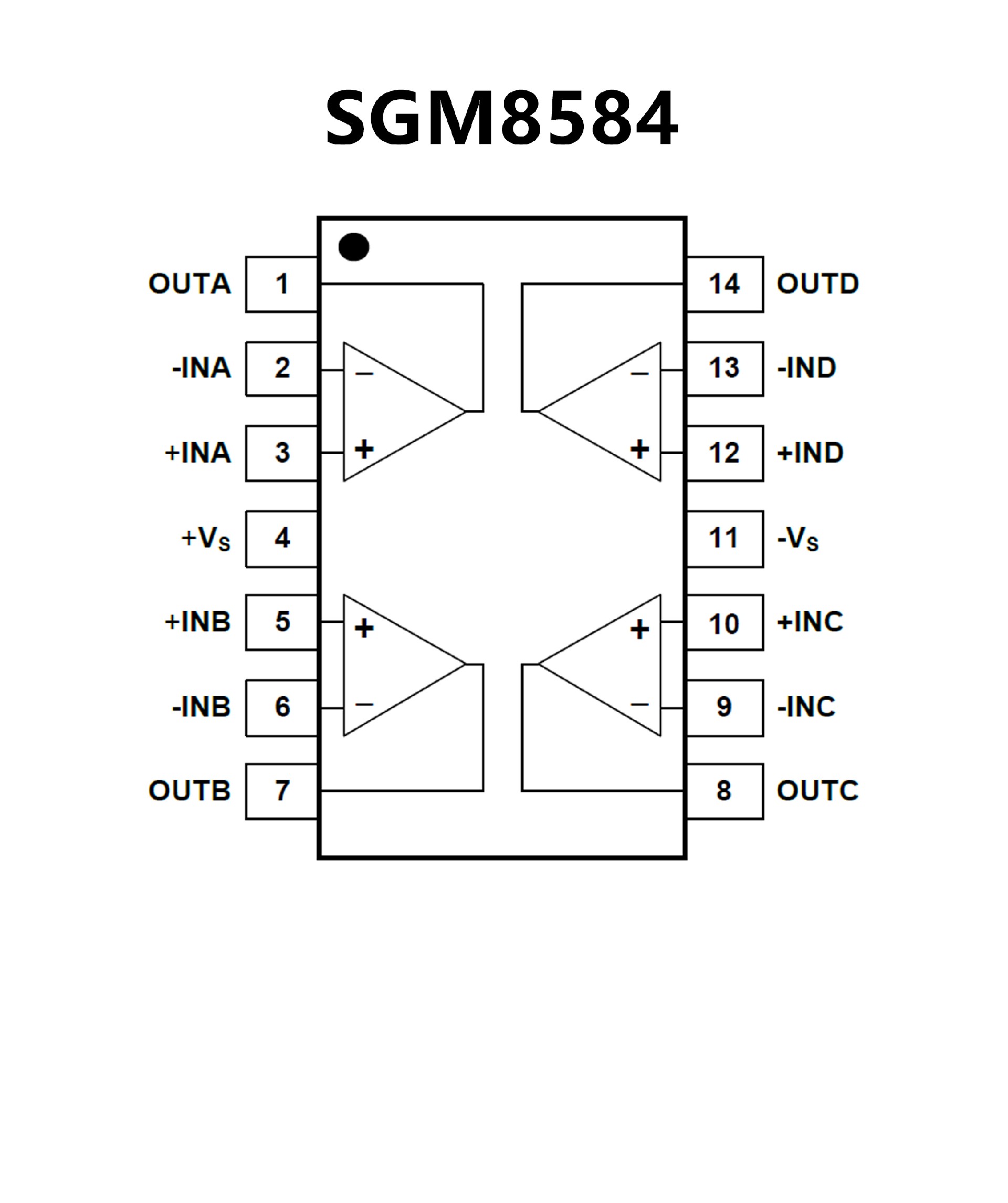

PIN CONFIGUTION
优势替代
FEATURES
• Precision Amplifier for
Cost-Sensitive Systems
• Low IQ: 65 μA/ch
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 26 nV/√Hz at 1 kHz
• Gain Bandwidth: 1 MHz
• Rail-to-Rail Input/Output
• Low Input Bias Current: 1 pA
• Low Offset Voltage: 0.75 mV
• Unity-Gain Stable
• Internal RF/EMI Filter
• Extended Temperature Range:
–40°C to +125°C

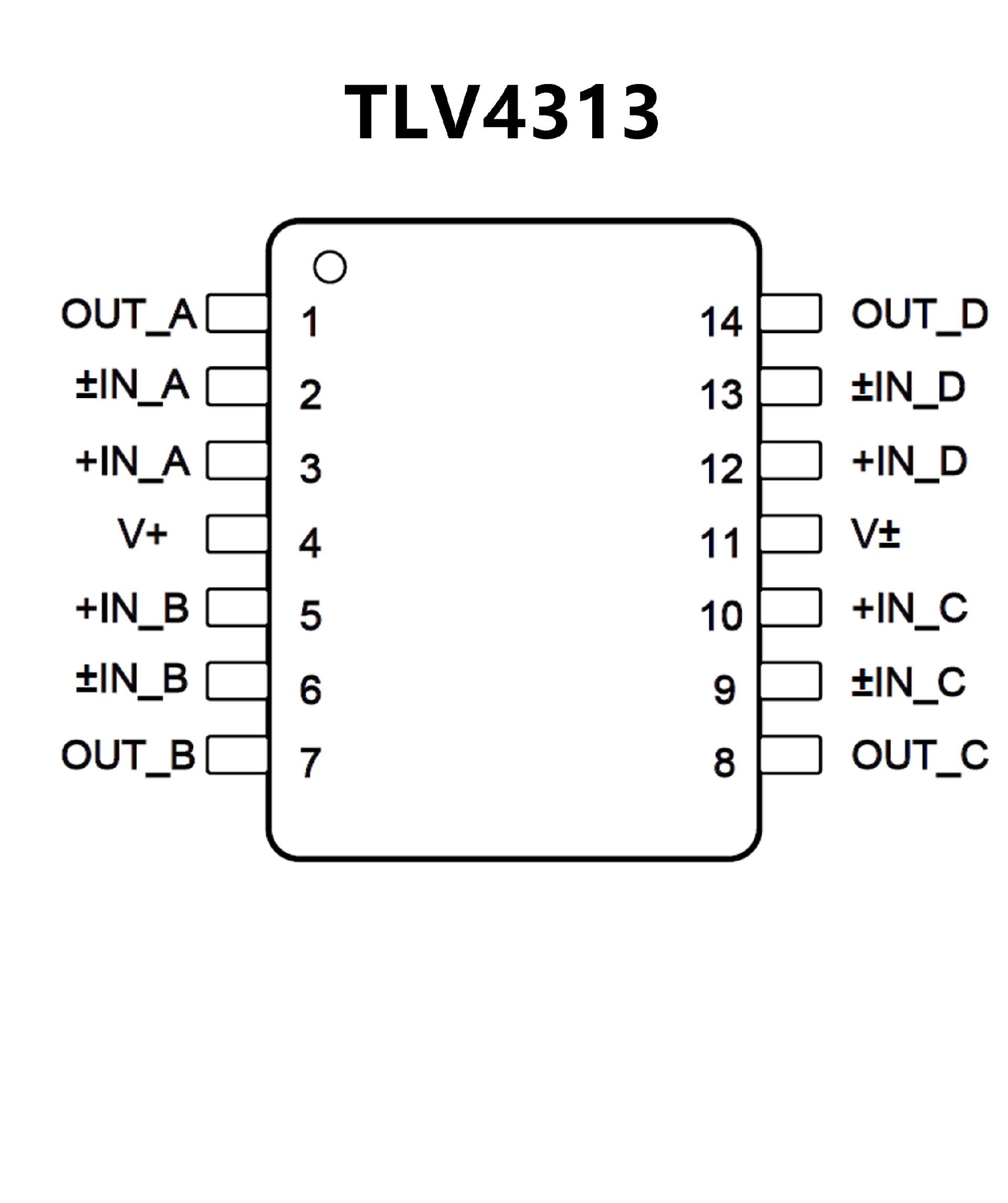

PIN CONFIGUTION
