High Precision Operational Amplifier ,Replace LMV841
SGM8591
SGM8591.pdf
SGM8591.pdfFEATURES
• Rail-to-Rail Input and Output Swing
• 2.5V to 5.5V Single Supply Operation
• Voltage Gain: 145dB (TYP) at +5V
• PSRR: 120dB (TYP)
• CMRR: 90dB (TYP)
• Ultra Low Input Bias Current: 15pA
• Low Supply Current: 445μA at +5V
• Overload Recovery Time: 70μs (at VS = +5V)
• No External Capacitors Required
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and SOIC-8 Packages
PIN CONFIGUTION
优势替代
FEATURES
• Space saving 5-Pin SC70 package
• Supply voltage range 2.7V to 12V
• Guaranteed at 3.3V, 5V and ±5V
• Low supply current 1mA per channel
• Unity gain bandwidth 4.5MHz
• Open loop gain 133dB
• Input offset voltage 500μV max
• Input bias current 0.3pA
• CMRR 112dB
• Input voltage noise 20nV/√Hz voltage
• Rail-to-Rail input, Rail-to-Rail output

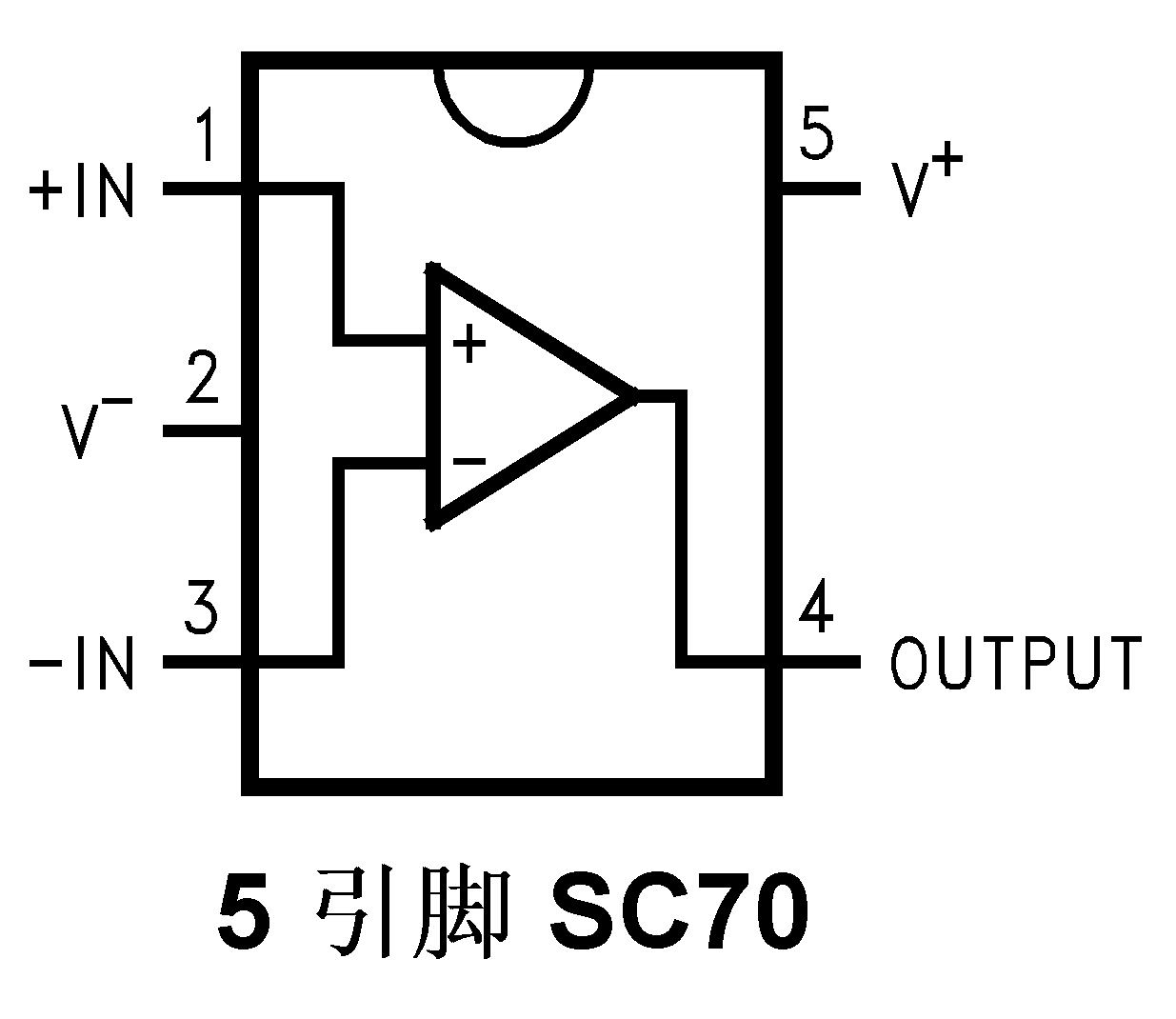

PIN CONFIGUTION
