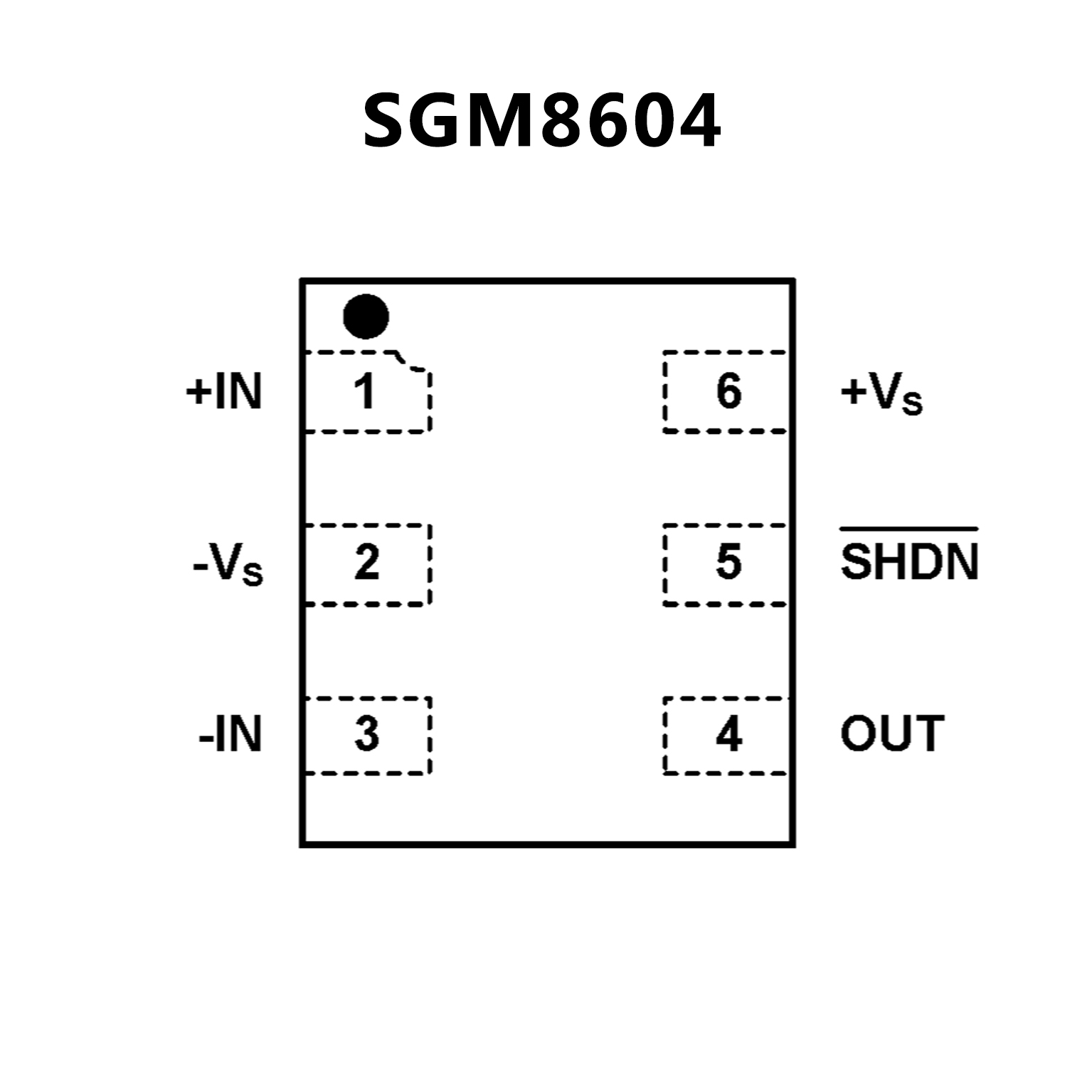

SGM8604-3.pdf• 232mA Output Drive Capability
• Rail-to-Rail Output
• Low Input Offset Voltage: 10μV (MAX)
• Low Input Offset Voltage Drift: 17nV/℃(TYP)
• Low Noise: 22nV/Hz at 1kHz
• Supply Voltage Range: 2.7V to 5.5V
• Quiescent Supply Current:
1.2mA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8604-3/5 (TYP)
• Gain-Bandwidth Product: 15MHz
• High Slew Rate: 7V/μs
• Power Supply Rejection Ratio: 127dB
• No Phase Reversal for Overdriven Inputs

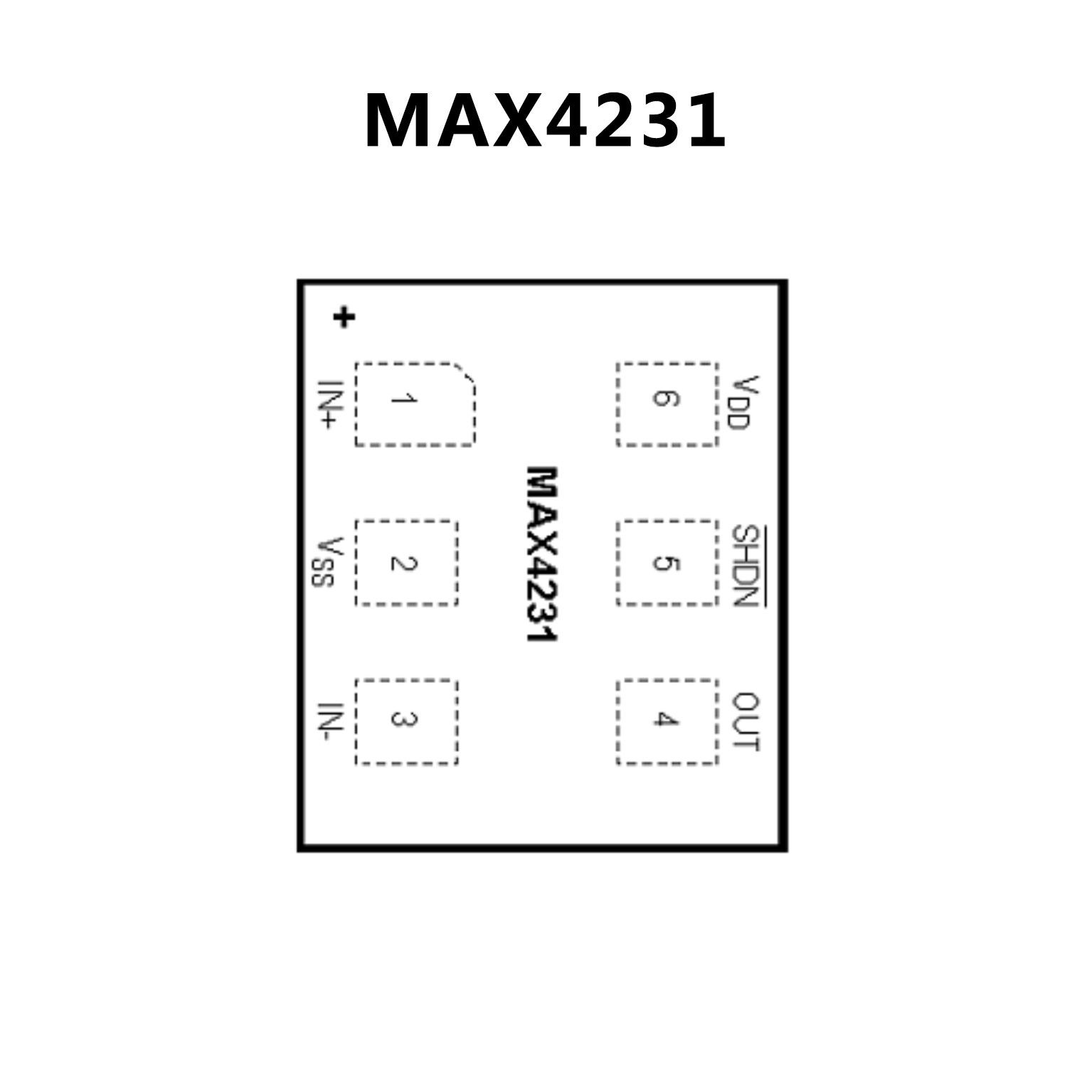

• Optimized for Headsets and High-Current Outputs
• 200mA Output Drive Capability
• 100dB Voltage Gain (RL = 100kΩ)
• 85dB Power-Supply Rejection Ratio
• No Phase Reversal for Overdriven Inputs
• Unity-Gain Stable for Capacitive Loads to 780pF
• Suitable for High-Bandwidth Applications
• 10MHz Gain-Bandwidth Product
• High Slew Rate: 10V/μs
• Extends the Battery Life of Portable Applications
• 1.1mA Supply Current per Amplifier
• Low-Power Shutdown Mode Reduces Supply Current
to < 1μA
