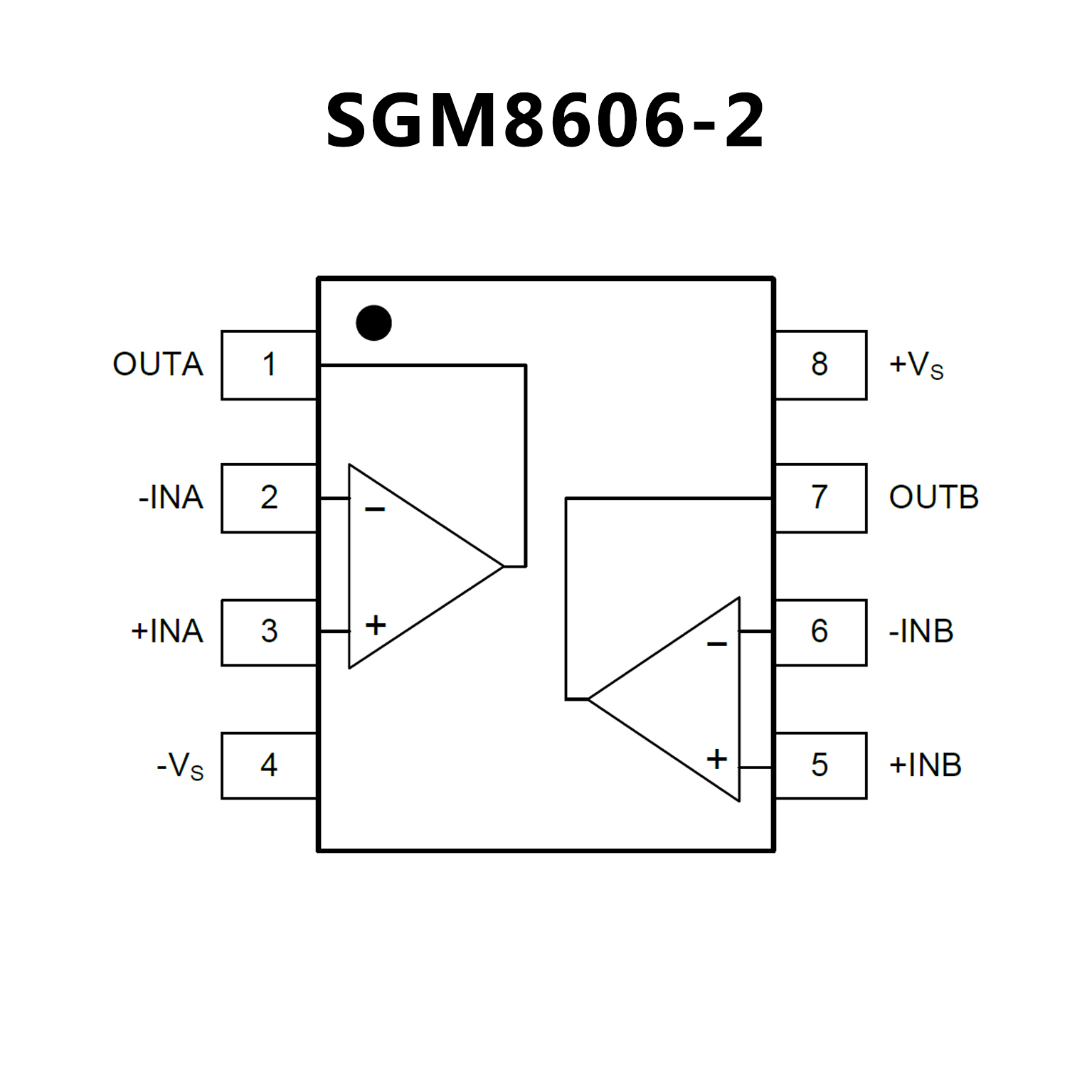

SGM8606-2.pdf• Input Offset Voltage: 1.7mV (MAX)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 6.6V/μs
• Settling Time to 0.1% with 2V Step: 500ns
• Overload Recovery Time: 0.16μs
• Low Noise: 12nV/√Hz at 10kHz
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Power: 1.1mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8, MSOP-8, TSSOP-8 and UTDFN-2×2-8BL Packages

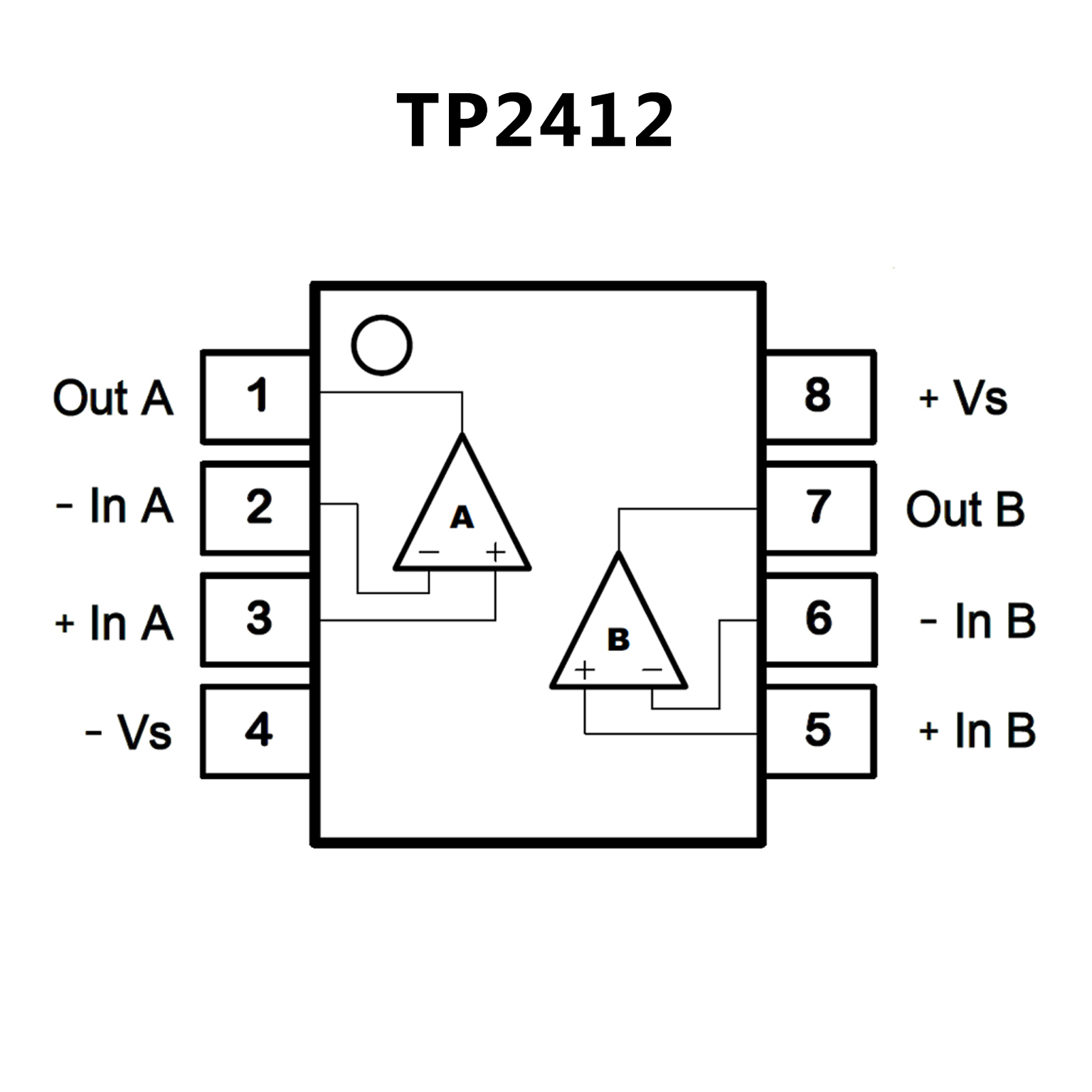

• Gain-bandwidth Product: 10 MHz
• Low Noise: 8.2 nV/√Hz(f= 1kHz)
• Slew Rate: 7 V/μs
• Offset Voltage: 1 mV (max)
• EMIRR IN+: 88 dB( under 2.4GHz)
• Low THD+N: 0.0005%
• Supply Range: 2.2 V to 5.5 V
• Supply Current: 1.4 mA/ch
• Low Input Bias Current: 0.3pA Typical
• Rail-to-Rail I/O
• High Output Current: 70 mA (1.0V Drop)
• –40°C to 125°C Operation Range
