• Rail-to-Rail Input and Output

• Input Offset Voltage: 3mV (MAX)

• High Gain-Bandwidth Product: 3MHz

• High Slew Rate: 1.7V/μs

• Settling Time to 0.1% with 2V Step: 0.5μs

• Overload Recovery Time: 2.3μs

• Low Noise: 17.5nV√Hz at 1kHz

• Input Voltage Range: -0.1V to 5.6V with V_S = 5.5V

• Low Supply Current:

  SGM8621/3: 270μA (TYP)

  SGM8622/4: 210μA/Amplifier (TYP)

  Less than 1μA Shutdown Current for SGM8623

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8621 Available in Green SC70-5,

  SOT-23-5and SOIC-8

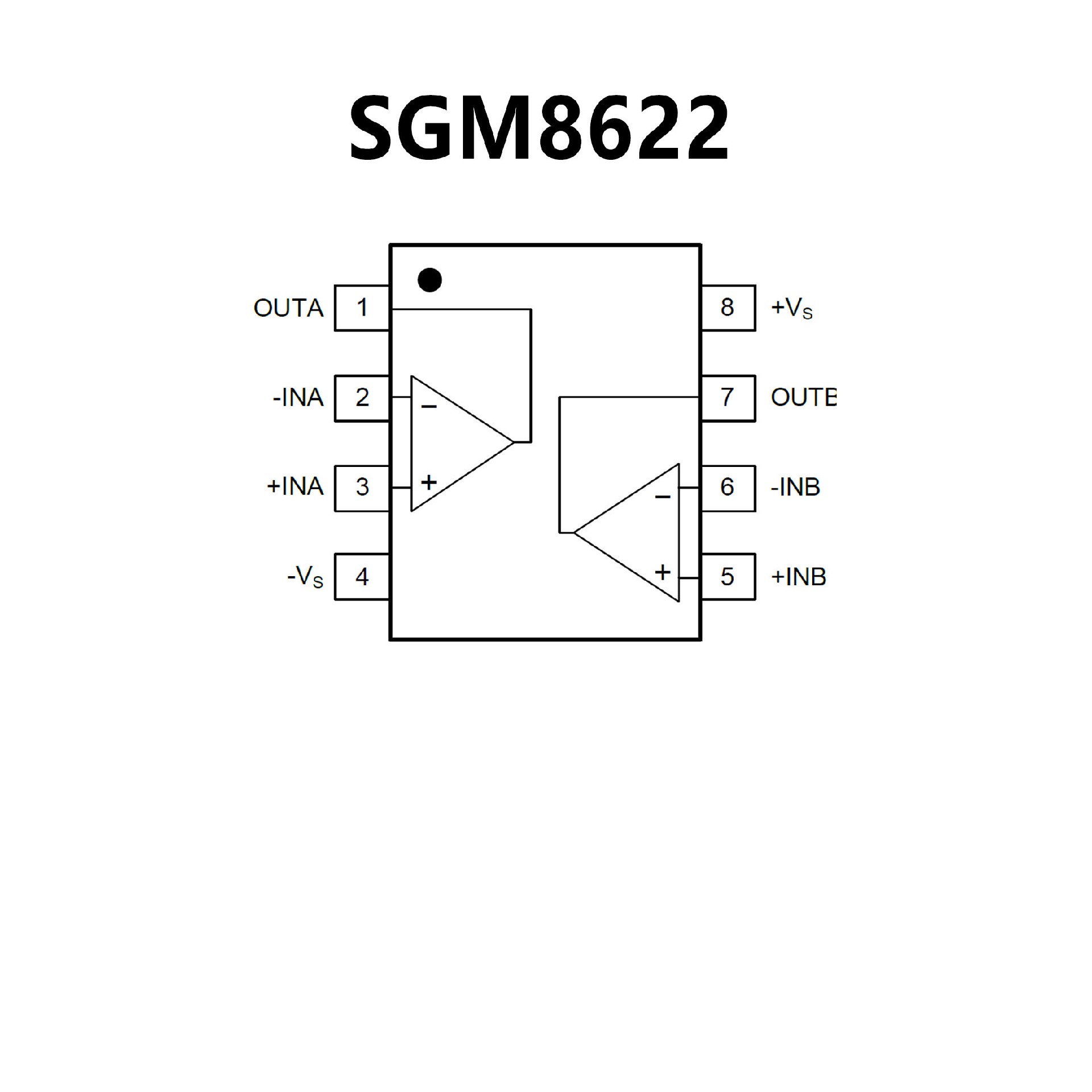

  SGM8622 Available in Green MSOP-8 and SOIC-8

  SGM8623 Available in Green SOT-23-6 and SOIC-8

  SGM8624 Available in Green TSSOP-14 and SOIC-14
