Low Noise Operational Amplifier,SGM8624 Replace MCP604.
SGM8624
SGM8624.pdf
SGM8624.pdfFEATURES
• Rail-to-Rail Input and Output 3mV Maximum VOS
• High Gain-Bandwidth Product: 3MHz
• High Slew Rate: 1.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 2.3μs
• Low Noise: 17.5nV/ Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current
SGM8624: 210μA/Amplifier (TYP)
• Small Packaging
SGM8624 Available in Green TSSOP-14 and
SOIC-14

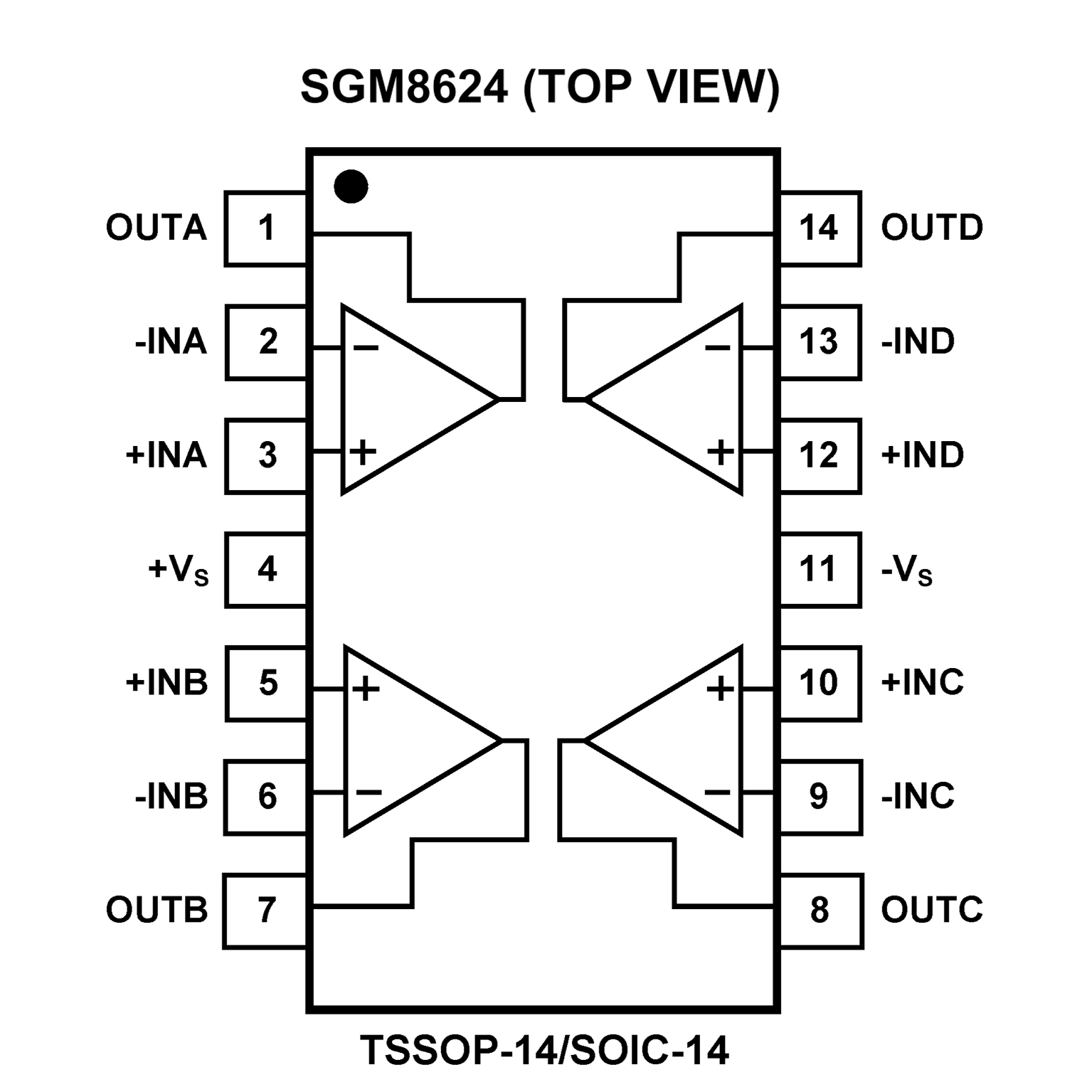

PIN CONFIGUTION
优势替代
FEATURES
• Single-Supply: 2.7V to 6.0V
• Rail-to-Rail Output
• Input Range Includes Ground
• Gain Bandwidth Product: 2.8 MHz (typical)
• Unity-Gain Stable
• Low Quiescent Current: 230 µA/amplifier (typical)
• Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
• Available in Single, Dual, and Quad

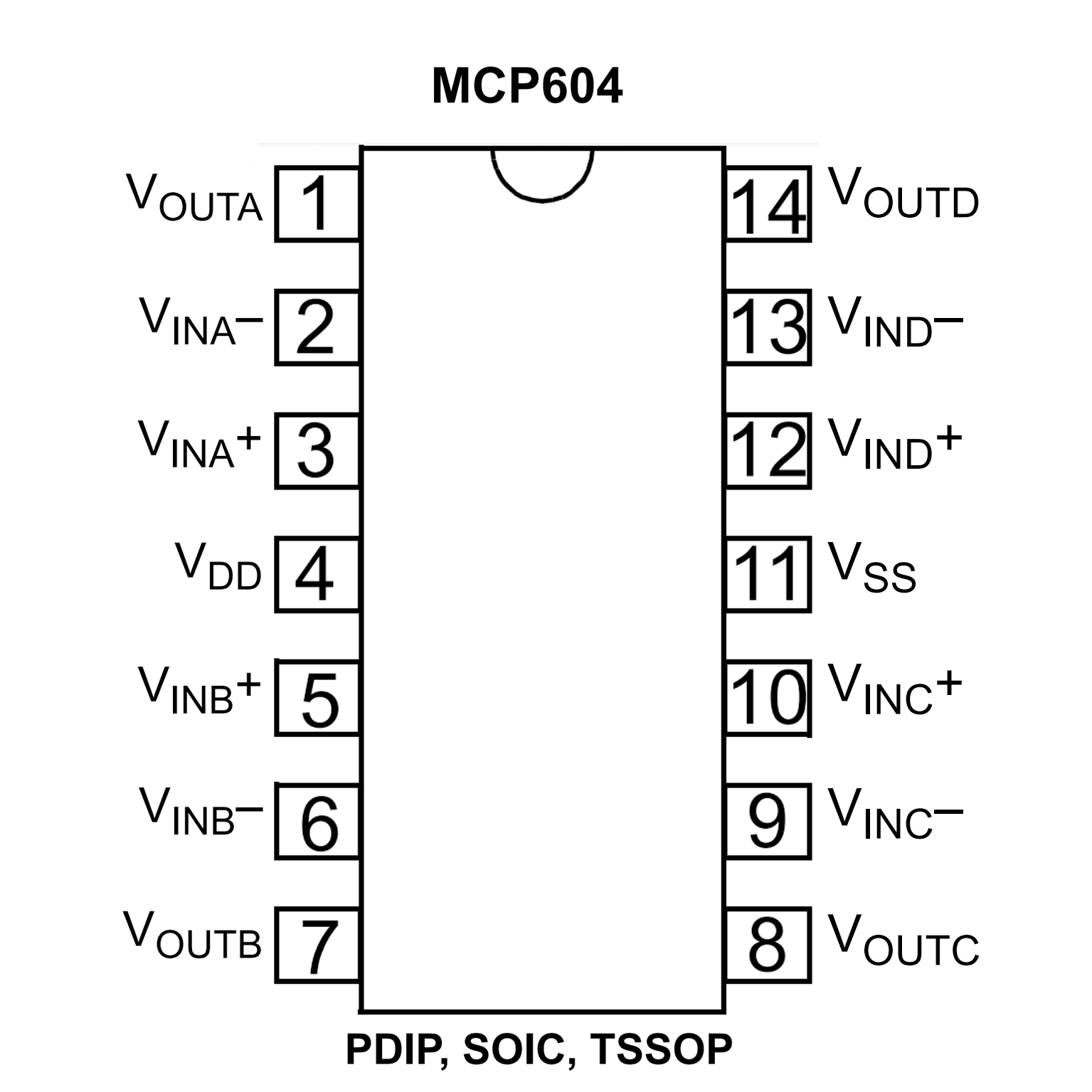

PIN CONFIGUTION
