• Rail-to-Rail Input and Output

   3.5mV Maximum VOS

• High Gain-Bandwidth Product: 6MHz

• High Slew Rate: 3.7V/μs

• Settling Time to 0.1% with 2V Step: 0.5μs

• Overload Recovery Time: 0.9μs

• Low Noise: 13nV/ Hz at 1kHz

• Supply Voltage Range: 2V to 5.5V

• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V

• Low Supply Current

  SGM8631/3: 570μA (TYP)

  SGM8632: 480μA/Amplifier (TYP)

  Less than 1μA Shutdown Current for SGM8633

• Small Packaging

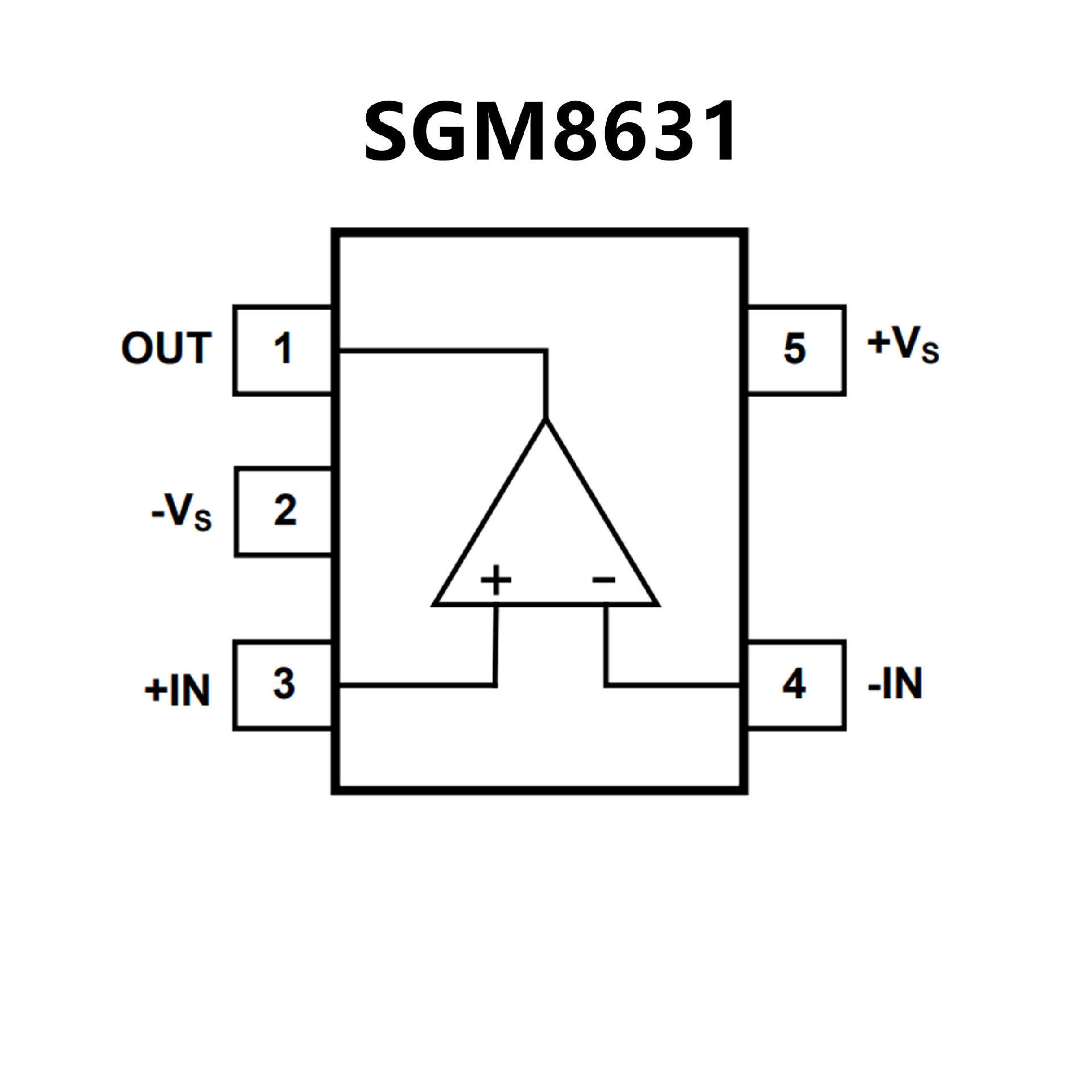

  SGM8631 Available in Green SC70-5,

  SOT-23-5and SOIC-8

  SGM8632 Available in Green MSOP-8 andSOIC-8

  SGM8633 Available in Green SOT-23-6 andSOIC-8
