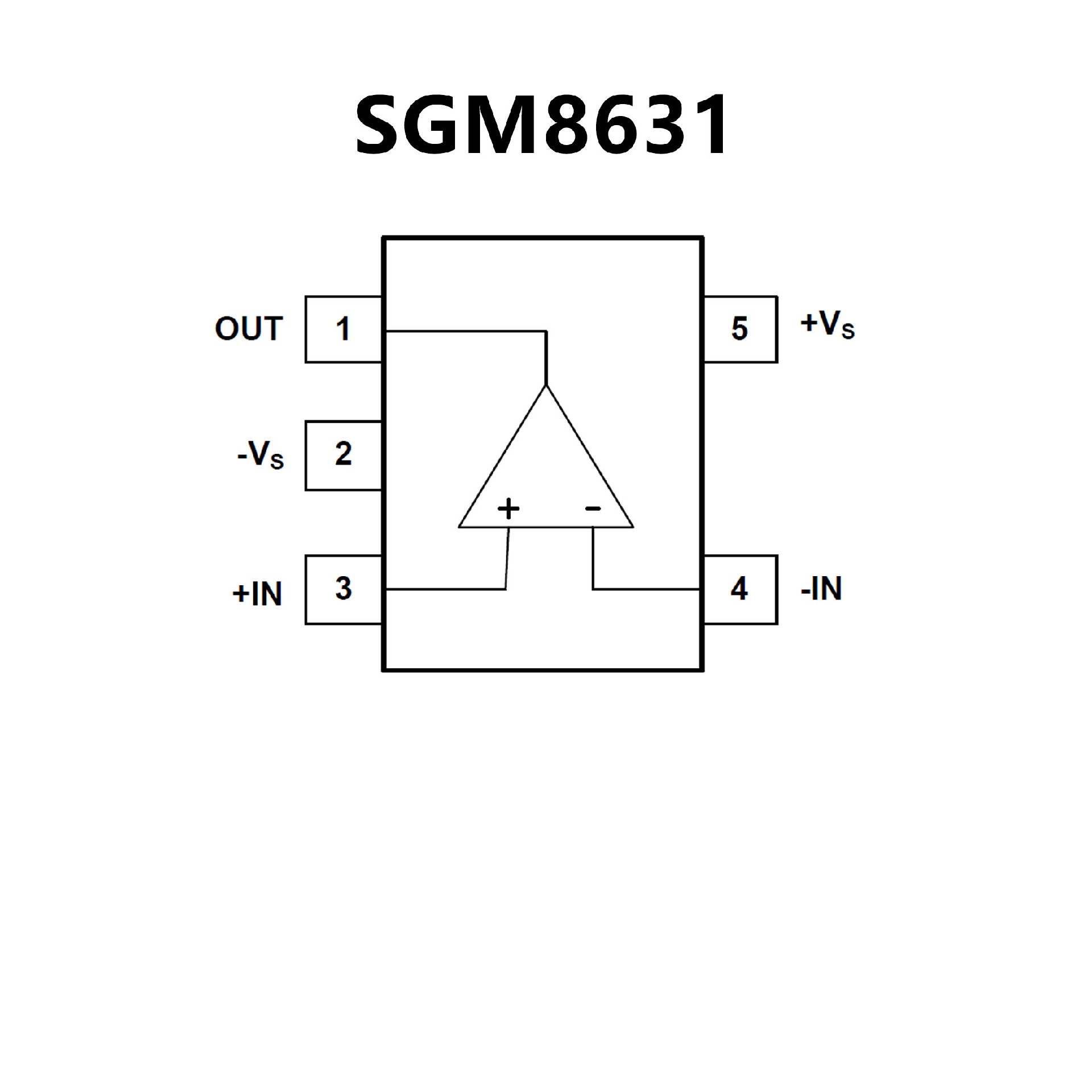

SGM8631.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 0.9μs
• Low Noise: 13nV/ Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages
SGM8632 Available in Green
MSOP-8 and SOIC-8 Packages
SGM8633 Available in Green
SOT-23-6 and SOIC-8 Packages

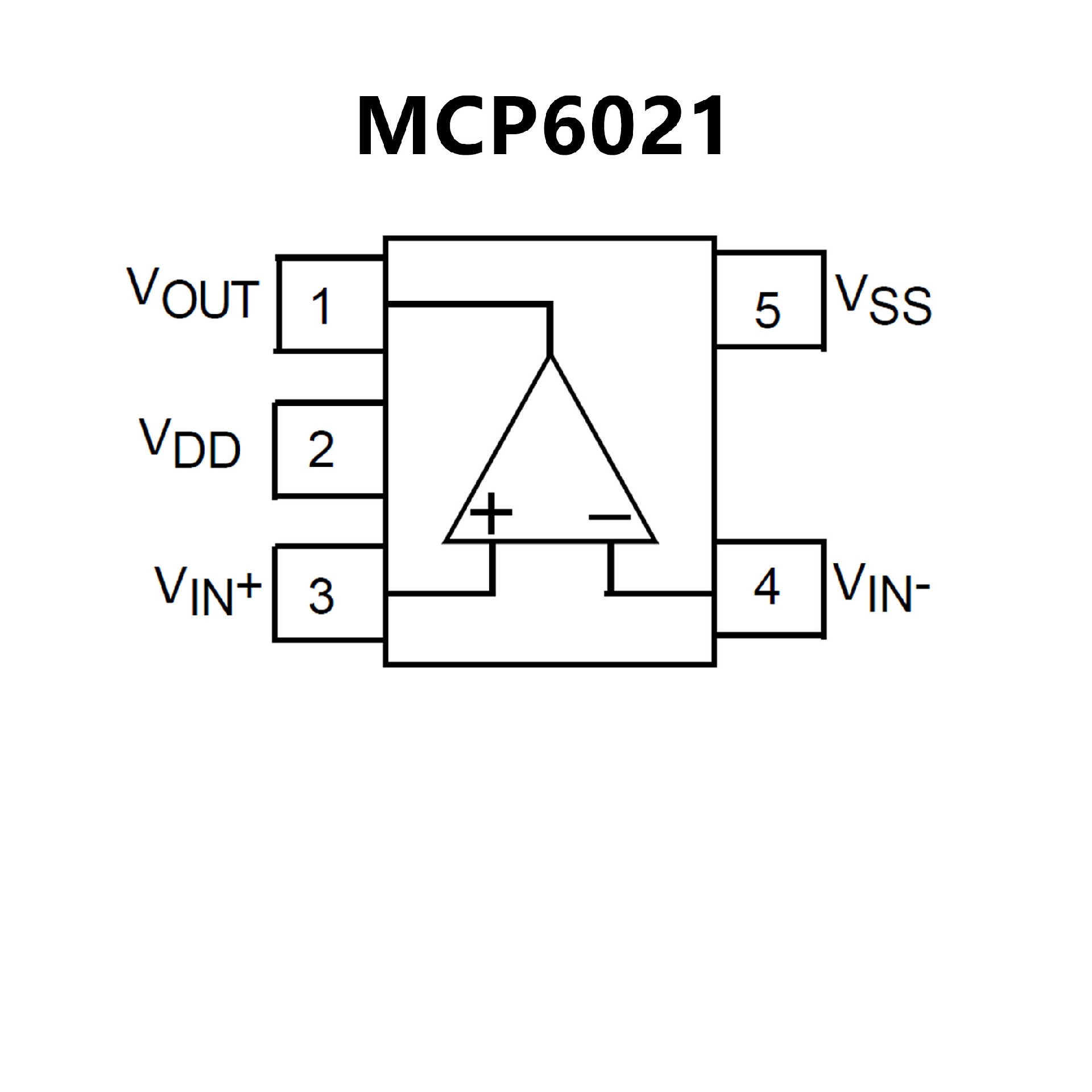

• Rail-to-Rail Input/Output
• Wide Bandwidth: 10 MHz (typical)
• Low Noise: 8.7 nV/Hz at 10 kHz (typical)
• Low Offset Voltage:
Industrial Temperature: ±500 µV (max.)
Extended Temperature: ±250 µV (max.)
• Mid-Supply VREF: MCP6021 and MCP6023
• Low Supply Current: 1 mA (typical)
• Total Harmonic Distortion:
• 0.00053% (typical, G = 1 V/V)
• Unity Gain Stable
• Power Supply Range: 2.5V to 5.5V
• Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
