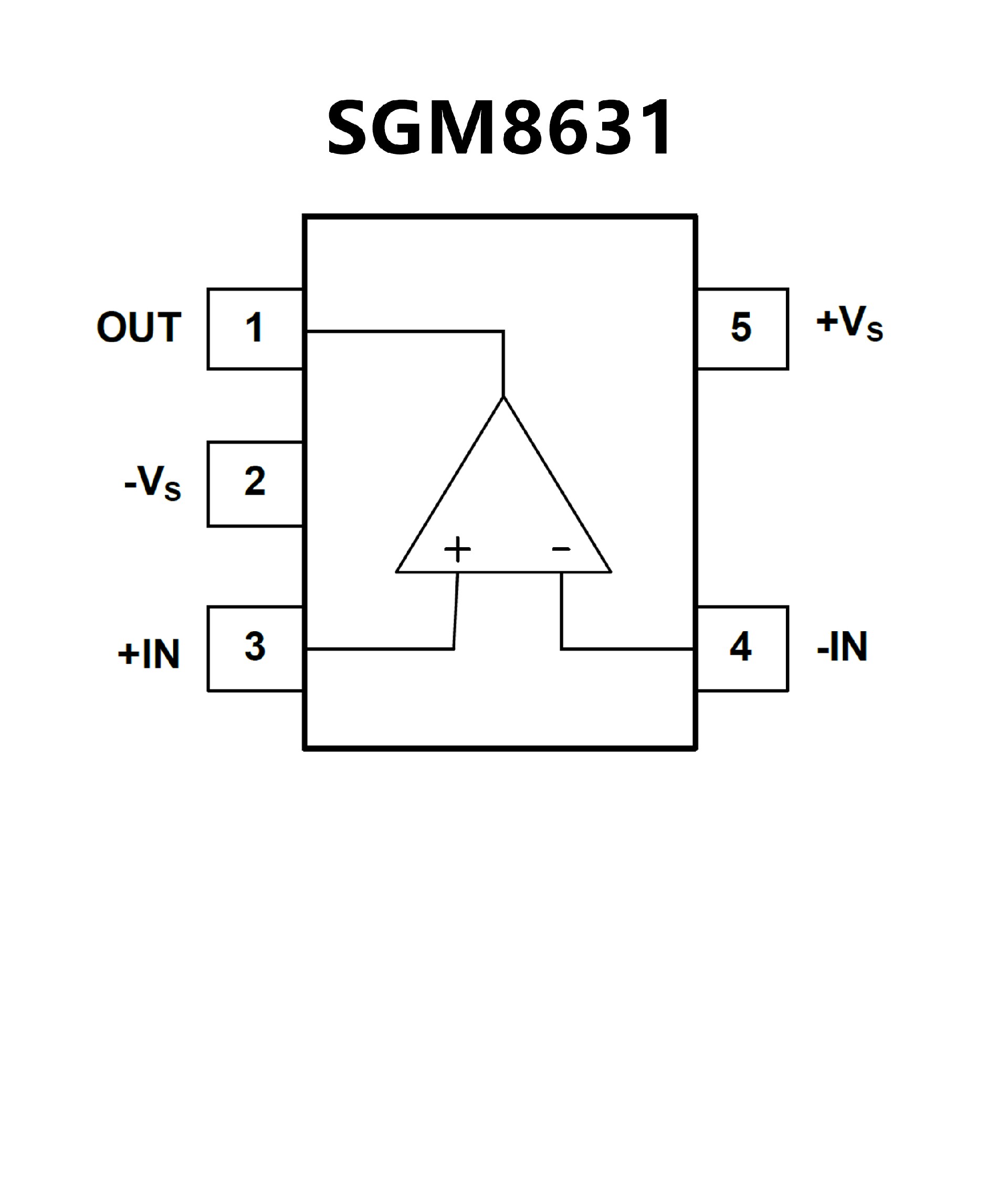

SGM8631.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 0.9μs
• Low Noise: 13nV/ Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages
SGM8632 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8633 Available in Green SOT-23-6 and
SOIC-8 Packages

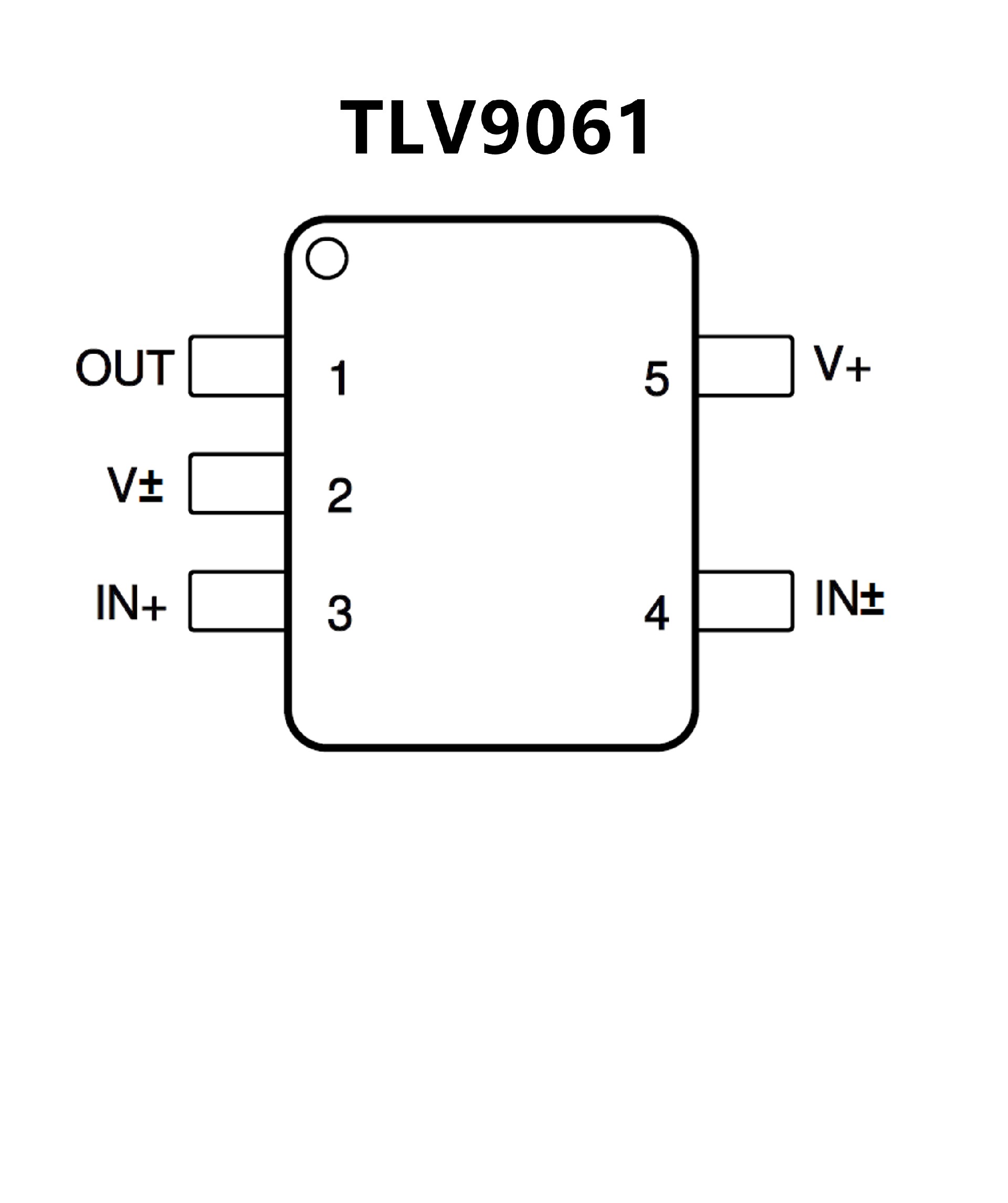

• Rail-to-rail input and output
• Low input offset voltage: ±0.3 mV
• Unity-gain bandwidth: 10 MHz
• Low broadband noise: 10 nV/√Hz
• Low input bias current: 0.5 pA
• Low quiescent current: 538 μA
• Unity-gain stable
• Internal RFI and EMI filter
• Operational at supply voltages as low as 1.8 V
• Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance
• Shutdown version: TLV906xS
• Extended temperature range: –40°C to 125°C
