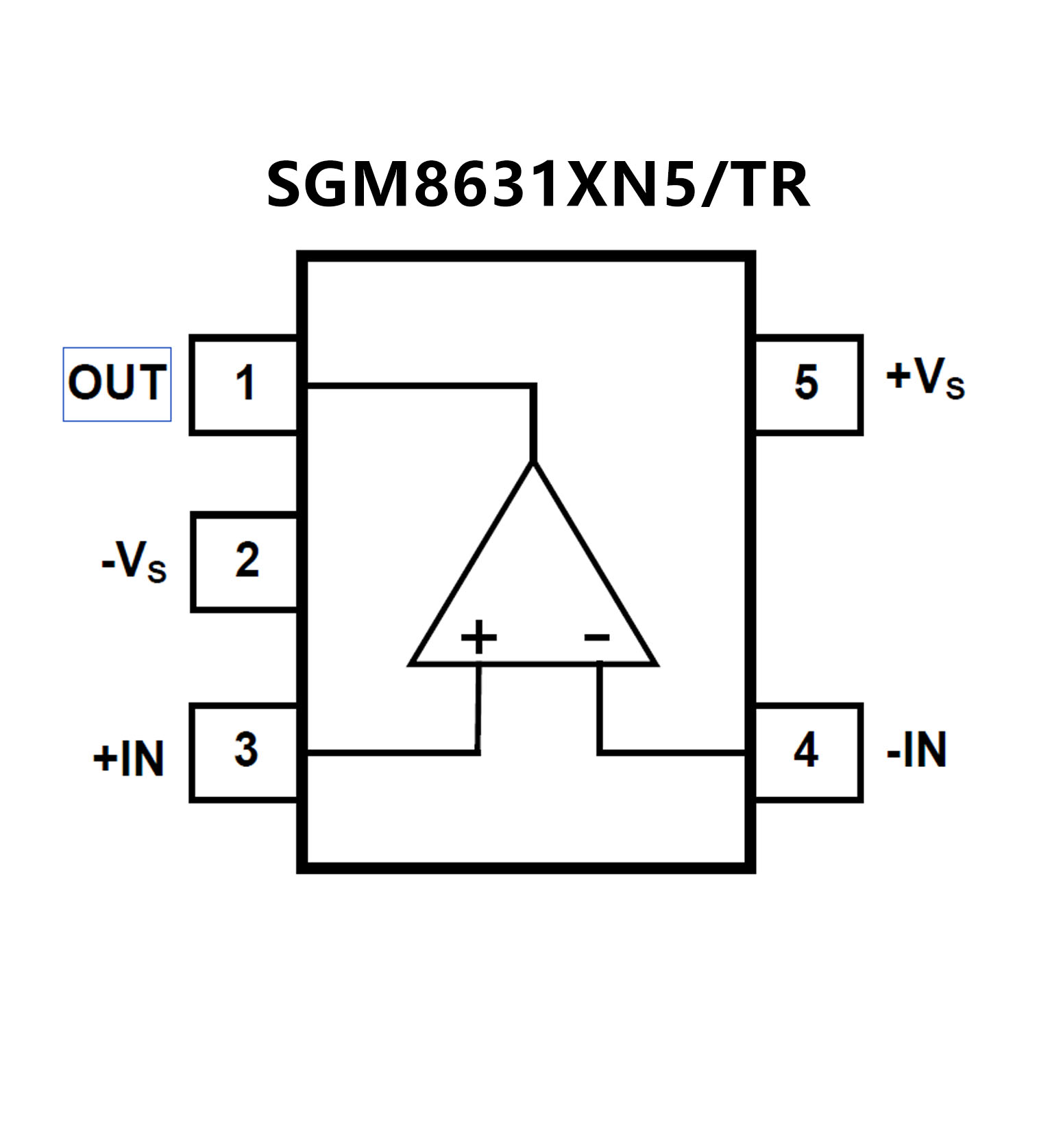

SGM8631.pdf• Rail-to-Rail Input and Output 3.5mV Maximum VOS
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 0.9μs
• Low Noise: 13nV/ Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP) Less than
1μA Shutdown Current for SGM8633
• Small Packaging SGM8631 Available in Green
SC70-5, SOT-23-5 and SOIC-8 SGM8632 Available
in Green MSOP-8 and SOIC-8 SGM8633 Available
in Green SOT-23-6 and SOIC-8

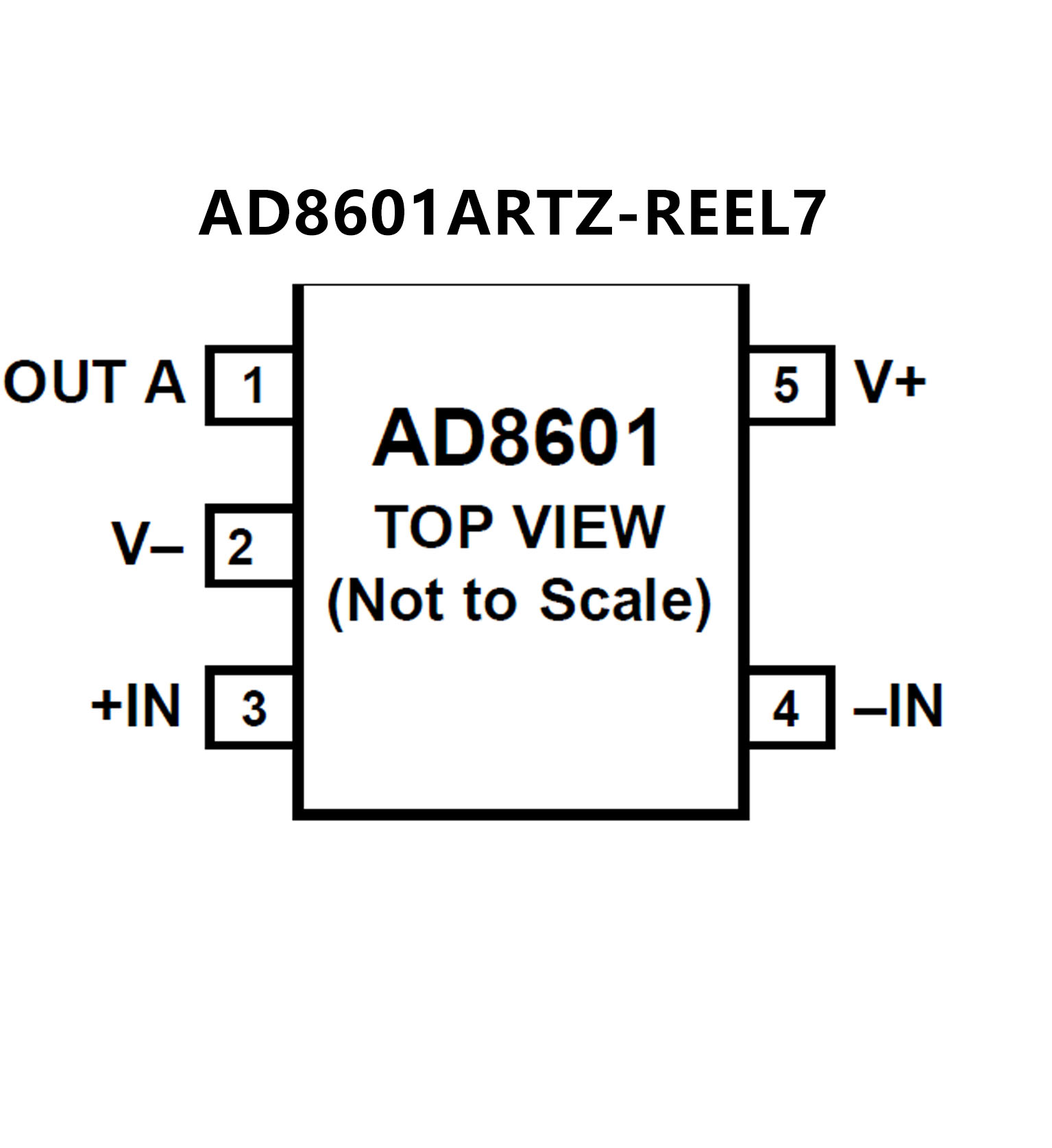

• Low offset voltage: 500 µV maximum
• Single-supply operation: 2.7 V to 5.5 V
• Low supply current: 750 µA/Amplifier
• Wide bandwidth: 8 MHz
• Slew rate: 5 V/µs
• Low distortion
• No phase reversal Low input currents
• Unity-gain stable
• Qualified for automotive applications
