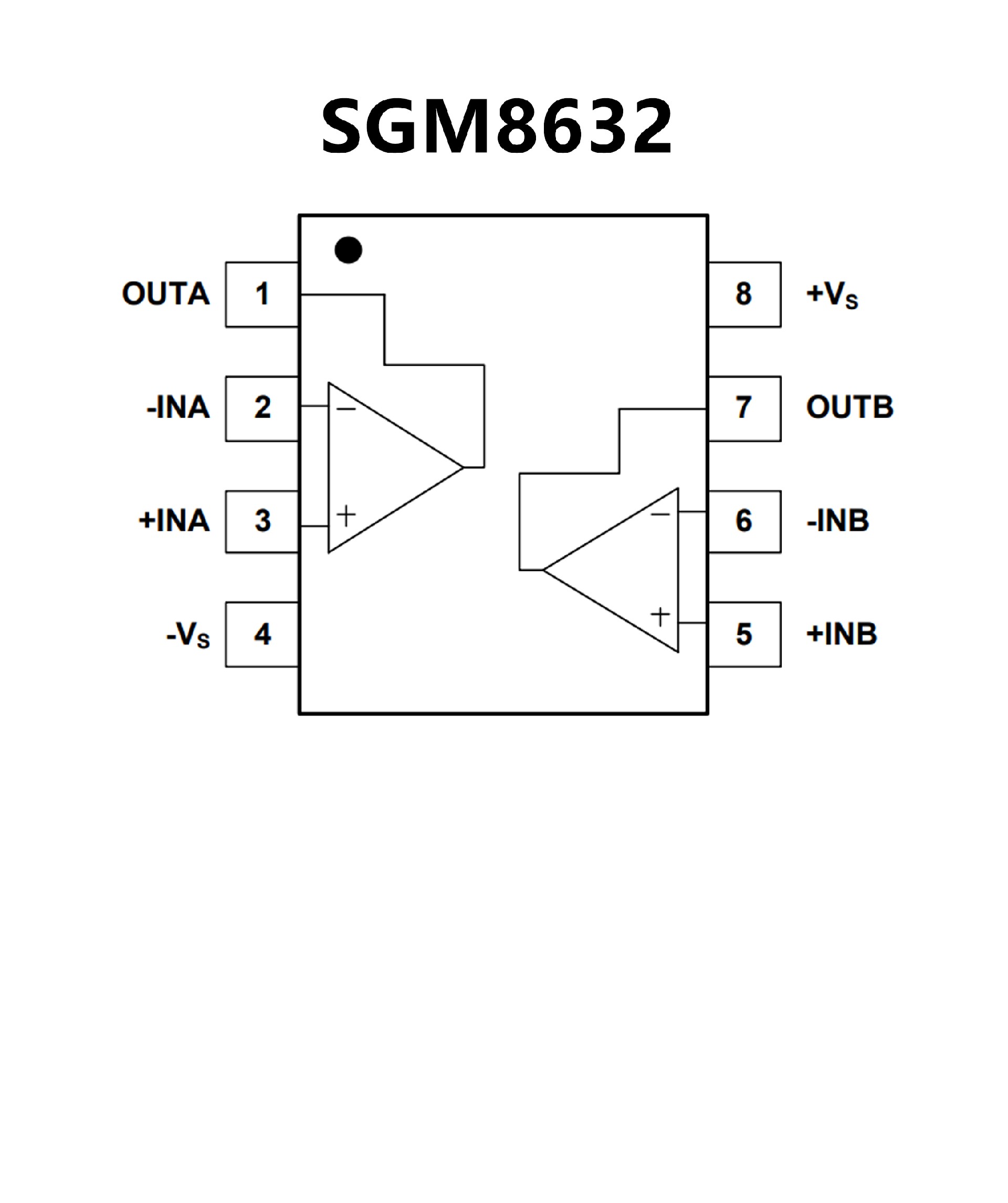

SGM8632.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 0.5μs
• Overload Recovery Time: 0.9μs
• Low Noise: 13nV/ Hz at 1kHz
• Supply Voltage Range: 2V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages
SGM8632 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8633 Available in Green SOT-23-6 and
SOIC-8 Packages

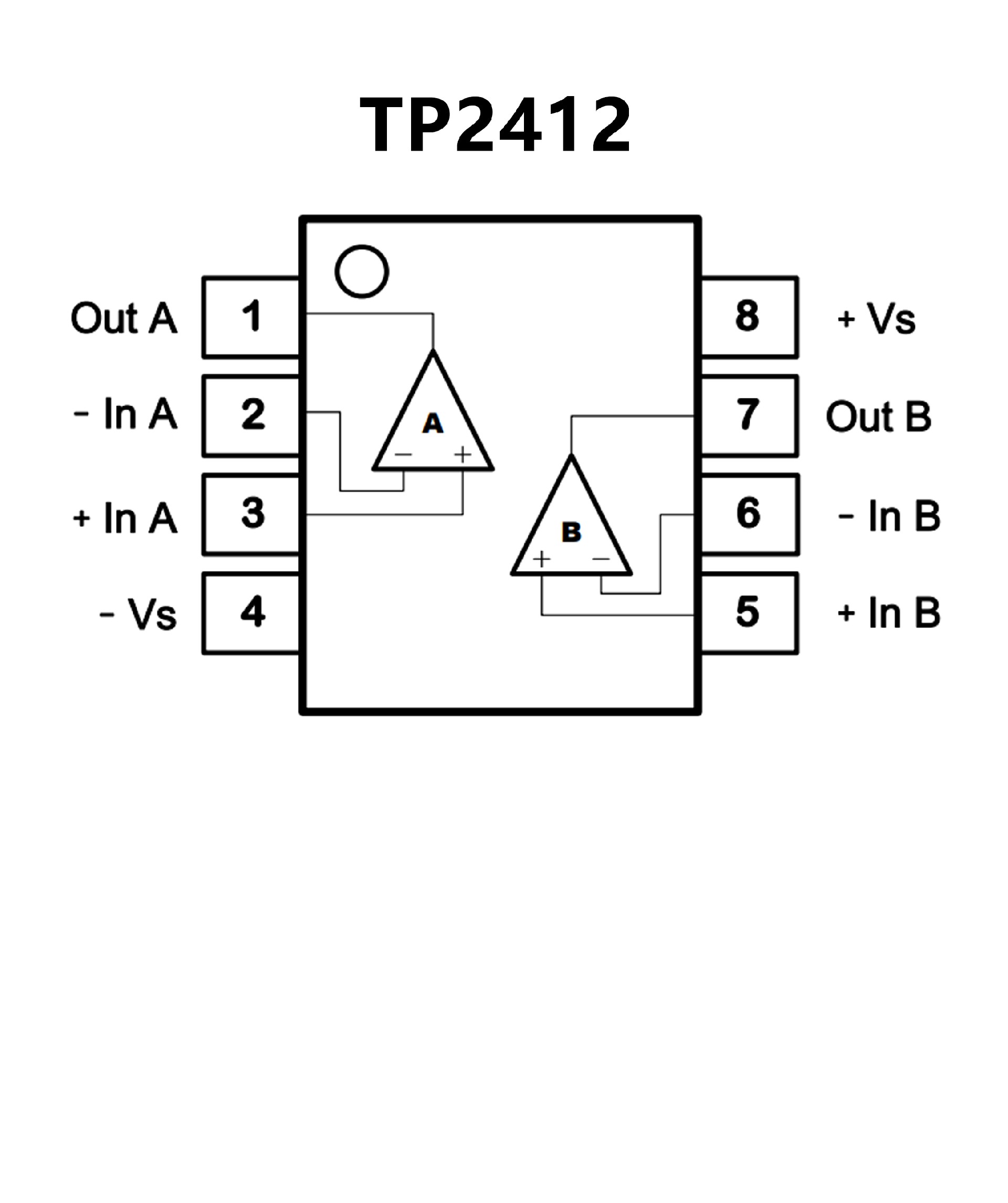

• Gain-bandwidth Product: 10 MHz
• Low Noise: 8.2 nV/√Hz(f= 1kHz)
• Slew Rate: 7 V/μs
• Offset Voltage: 1 mV (max)
• EMIRR IN+: 88 dB( under 2.4GHz)
• Low THD+N: 0.0005%
• Supply Range: 2.2 V to 5.5 V
• Supply Current: 1.4 mA/ch
• Low Input Bias Current: 0.3pA Typical
• Rail-to-Rail I/O
• High Output Current: 70 mA (1.0V Drop)
• –40°C to 125°C Operation Range
