• Rail-to-Rail Input and Output

• Input Offset Voltage: 3.5mV (MAX)

• High Gain-Bandwidth Product: 6MHz

• High Slew Rate: 3.7V/μs

• Settling Time to 0.1% with 2V Step: 0.5μs

• Overload Recovery Time: 0.9μs

• Low Noise: 13nV/Hz at 1kHz

• Supply Voltage Range: 2V to 5.5V

• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

• Low Supply Current:

  SGM8631/3: 570μA (TYP)

  SGM8632: 480μA/Amplifier (TYP)

  Less than 1μA Shutdown Current for SGM8633

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8631 Available in Green SC70-5,

  SOT-23-5and SOIC-8 Packages

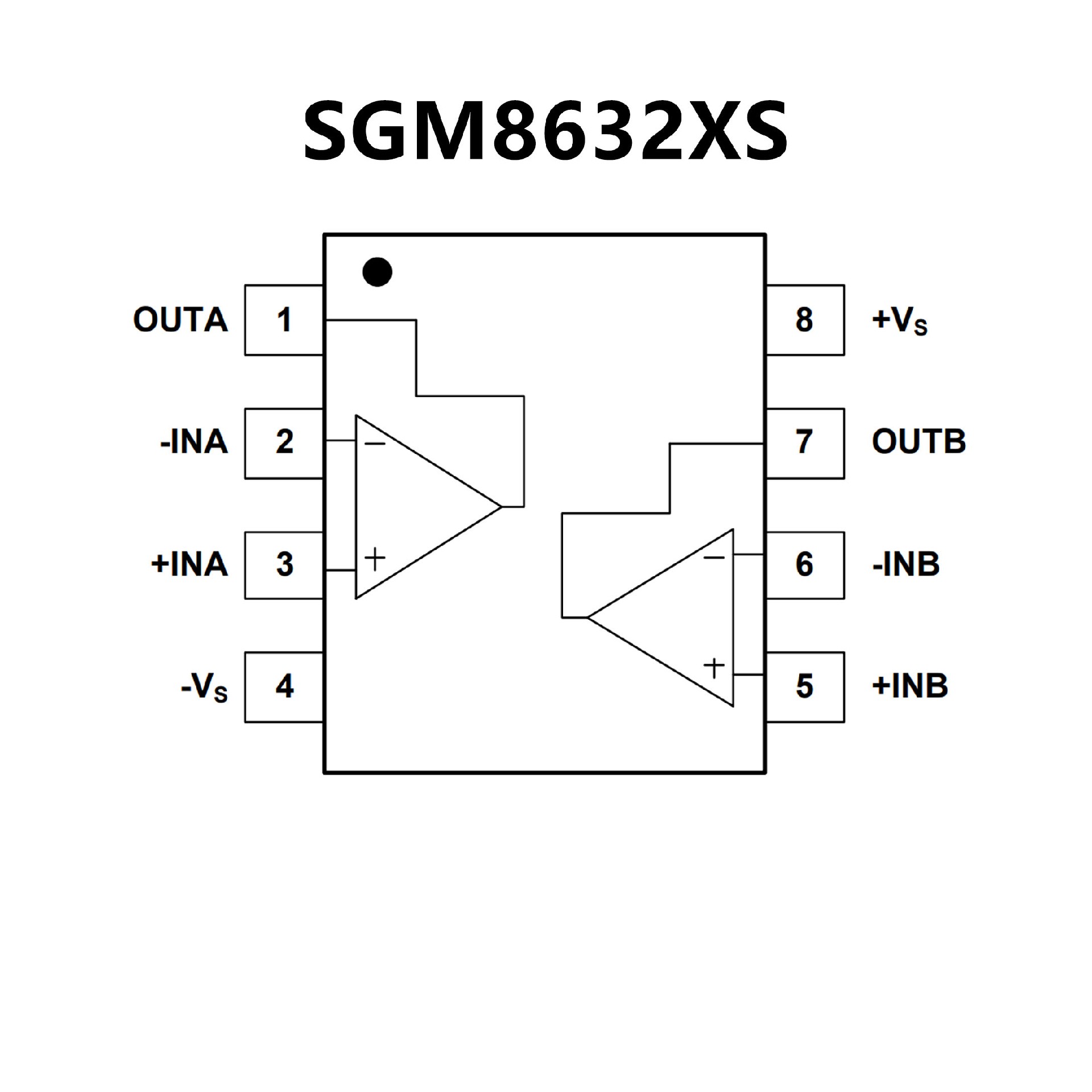

  SGM8632 Available in Green MSOP-8 and

  SOIC-8 Packages

  SGM8633 Available in Green SOT-23-6 and

  SOIC-8 Packages
