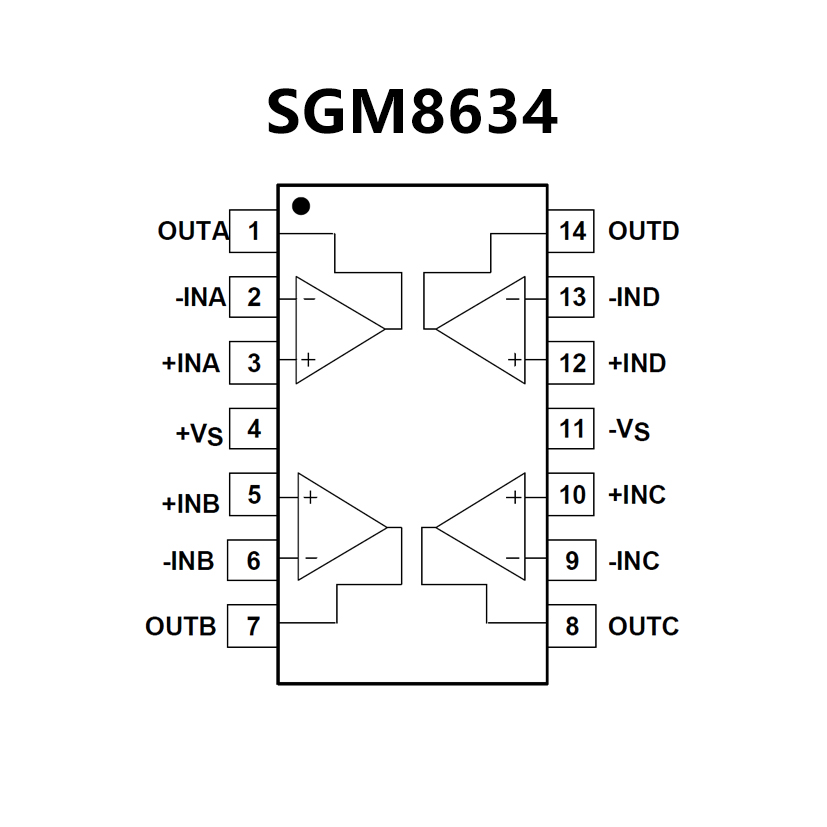

SGM8634.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 2.1μs
• Overload Recovery Time: 0.9μs
• Low Noise: 12nV/Hz
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 470μA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TSSOP-14 and SOIC-14 Packages
• Output Swing includes Both Supply Rails

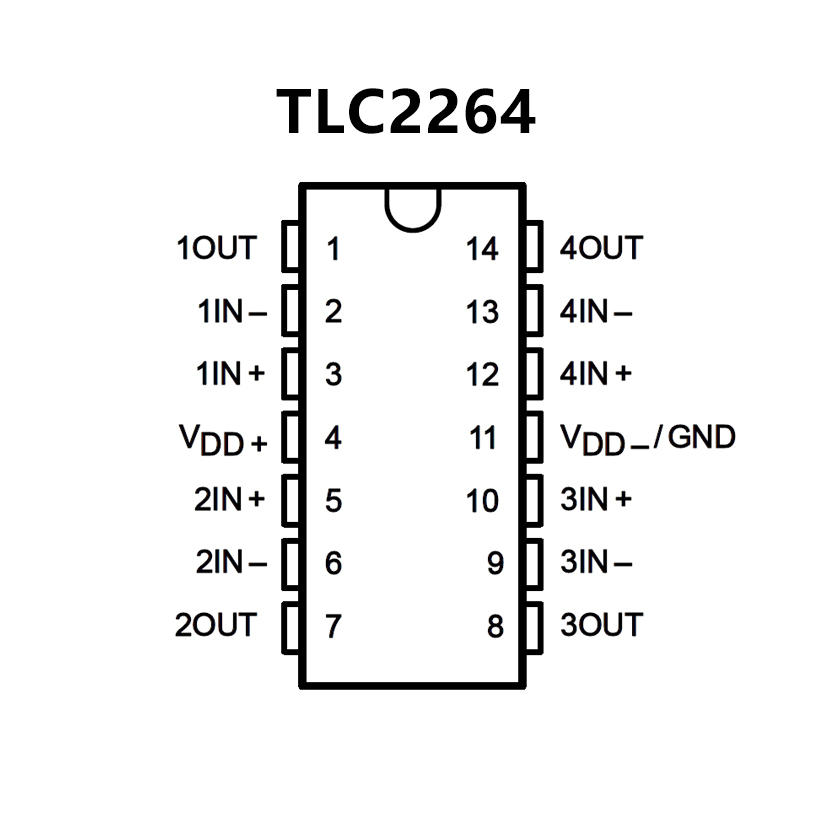

• Low Noise . . . 12 nV/√Hz Typ at f = 1 kHz
• Low Input Bias Current . . . 1 pA Typ
• Fully Specified for Both Single-Supply and
Split-Supply Operation
• Low Power . . . 500 μA Max
• Common-Mode Input Voltage Range
Includes Negative Rail
• Low Input Offset Voltage
950 μV Max at TA = 25°C (TLC2262A)
• Macromodel Included
• Performance Upgrade for the TS27M2/M4
and TLC27M2/M4
• Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
