470μA, 6MHz, Rail-to-Rail I/OCMOS Operational Amplifier,SGM8634XS14 Replace OPA4340UA.
SGM8634XS14
SGM8634XS14.pdf
SGM8634XS14.pdfFEATURES
• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 2.1μs
• Overload Recovery Time: 0.9μs
• Low Noise: 12nV/Hz
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 470μA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TSSOP-14 and SOIC-14 Packages

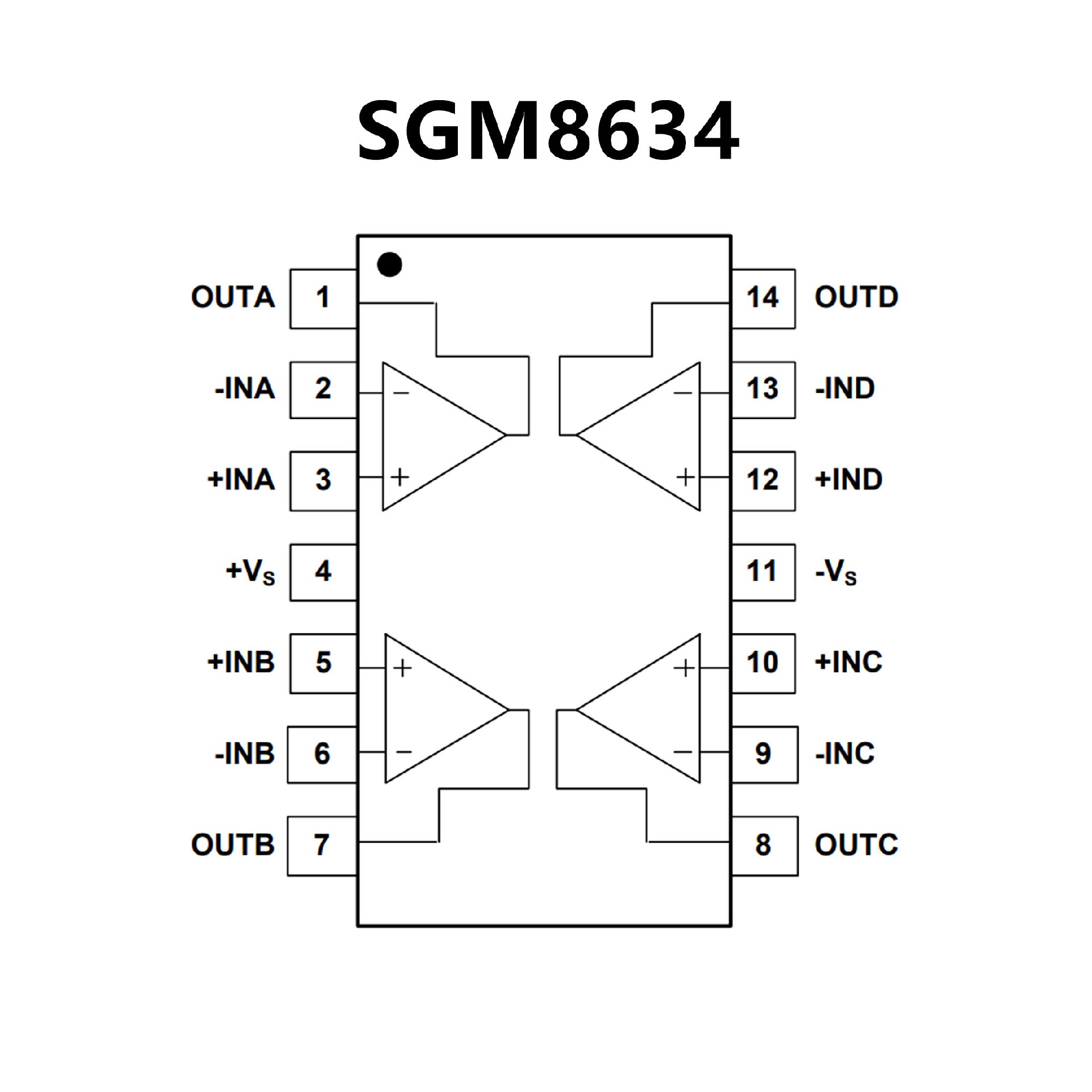

PIN CONFIGUTION
优势替代
FEATURES
• Rail-to-Rail Input
• Rail-to-Rail Output (Within 1 mV)
• MicroSize Packages
• Wide Bandwidth: 5.5 MHz
• High Slew Rate: 6 V/μs
• Low THD + Noise: 0.0007% (f = 1 kHz)
• Low Quiescent Current: 750 μA/Channel
• Single, Dual, and Quad Versions

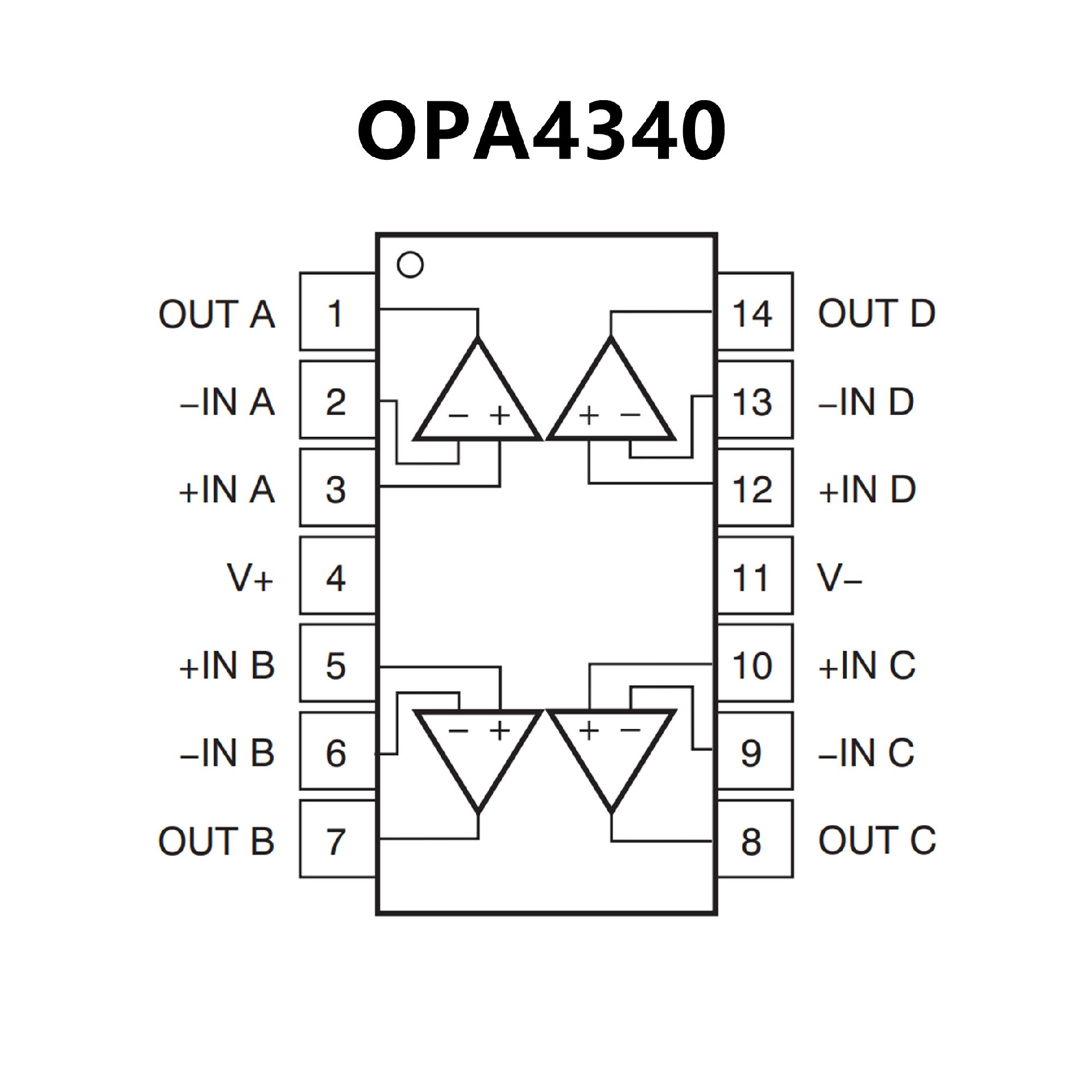

PIN CONFIGUTION
