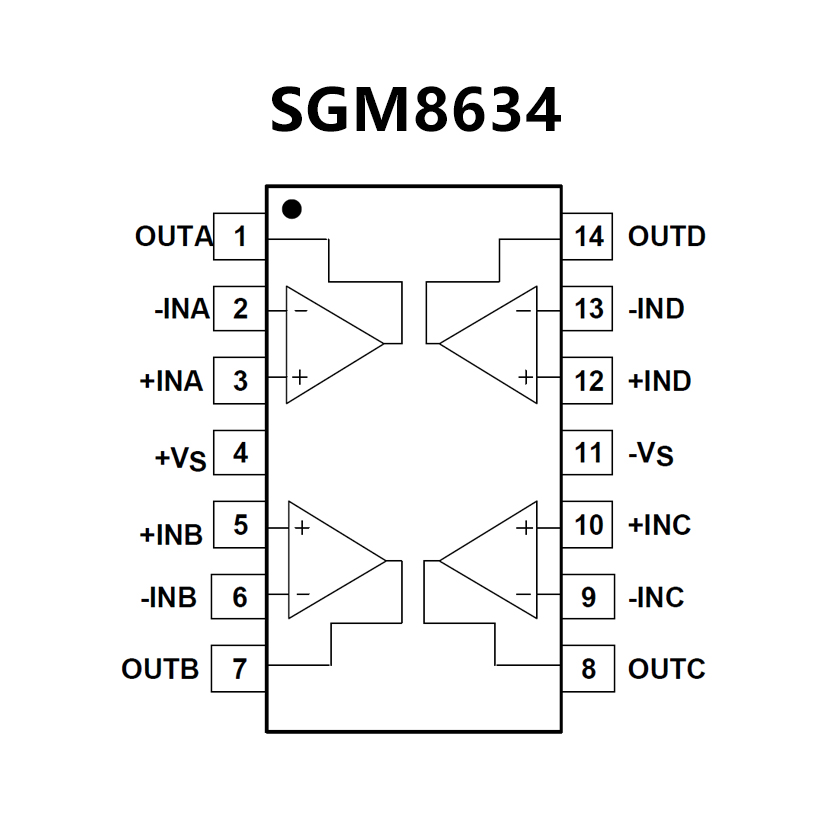

SGM8634.pdf• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 2.1μs
• Overload Recovery Time: 0.9μs
• Low Noise: 12nV/ Hz
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 470μA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TSSOP-14 and SOIC-14 Packages
• Output Swing Includes Both Supply Rails
• Low Noise: 9 nV/√Hz Typical at f = 1 kHz
• Low-Input Bias Current: 1-pA Typical
• Fully-Specified for Both Single-Supply and Split-
Supply Operation
• Common-Mode Input Voltage Range Includes
Negative Rail
• High-Gain Bandwidth: 2.2-MHz Typical
• High Slew Rate: 3.6-V/μs Typical
• Low Input Offset Voltage: 950 μV Maximum at
TA = 25°C
• Macromodel Included

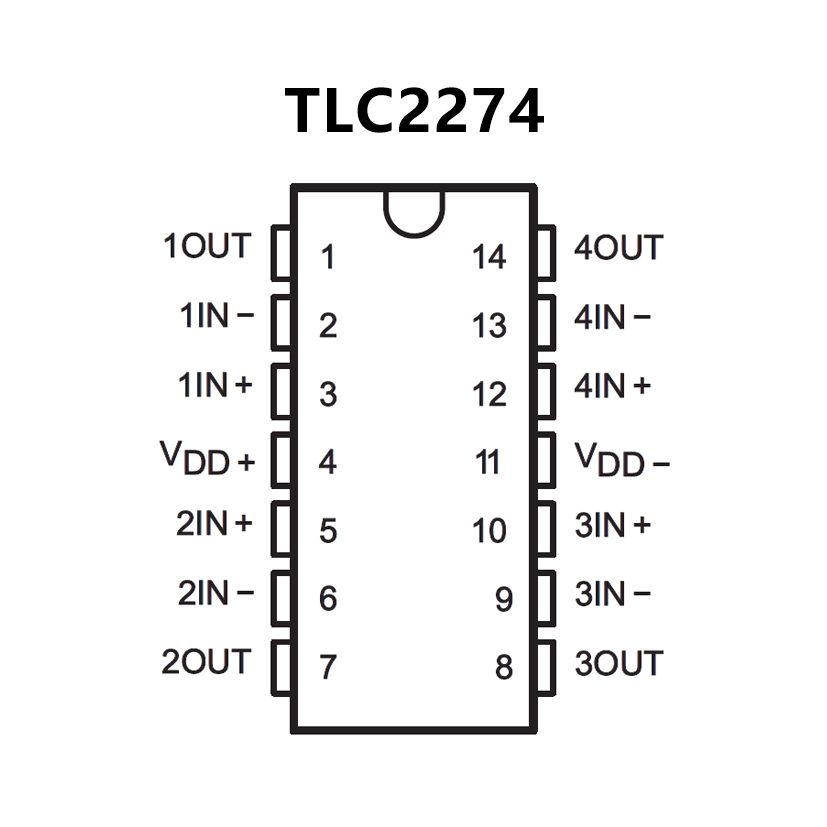

• Performance Upgrades for the TLC272 and
TLC274
• Available in Q-Temp Automotive
