470μA, 6MHz, Rail-to-Rail I/O CMOS Operational Amplifier,SGM8634XS14 Replace TLV2314IDR.
SGM8634
SGM8634.pdf
SGM8634.pdfFEATURES
• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 2.1μs
• Overload Recovery Time: 0.9μs
• Low Noise: 12nV/Hz
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 470μA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TSSOP-14 and SOIC-14 Packages

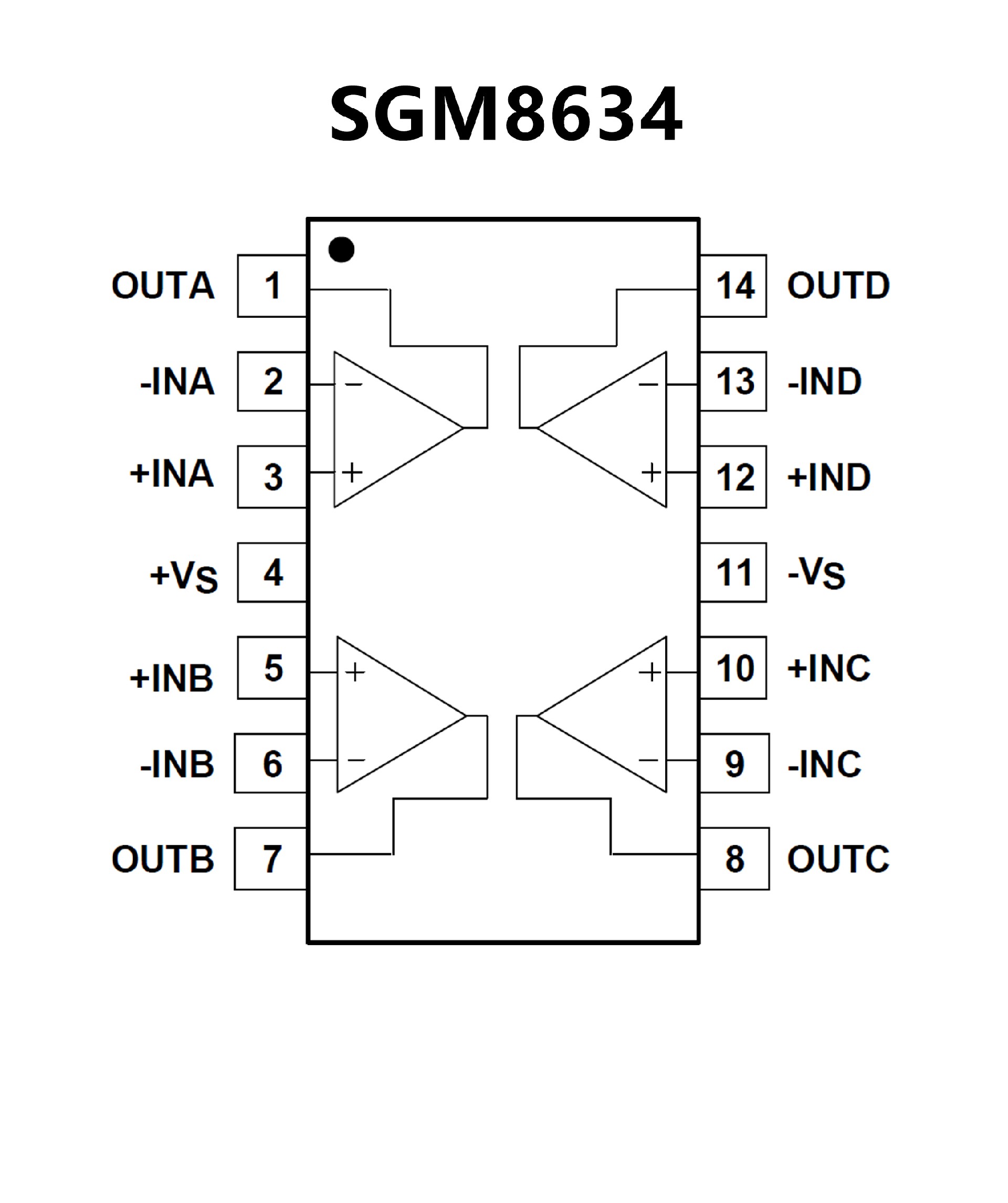

PIN CONFIGUTION
优势替代
FEATURES
• Low Offset Voltage: 0.75 mV (typ)
• Low Input Bias Current: 1 pA (typ)
• Wide Supply Range: 1.8 V to 5.5 V
• Rail-to-Rail Input and Output
• Gain Bandwidth: 3 MHz
• Low IQ: 250 μA/Ch (max)
• Low Noise: 16 nV/√Hz at 1 kHz
• Internal RF/EMI Filter
• Extended Temperature Range:
–40°C to +125°C

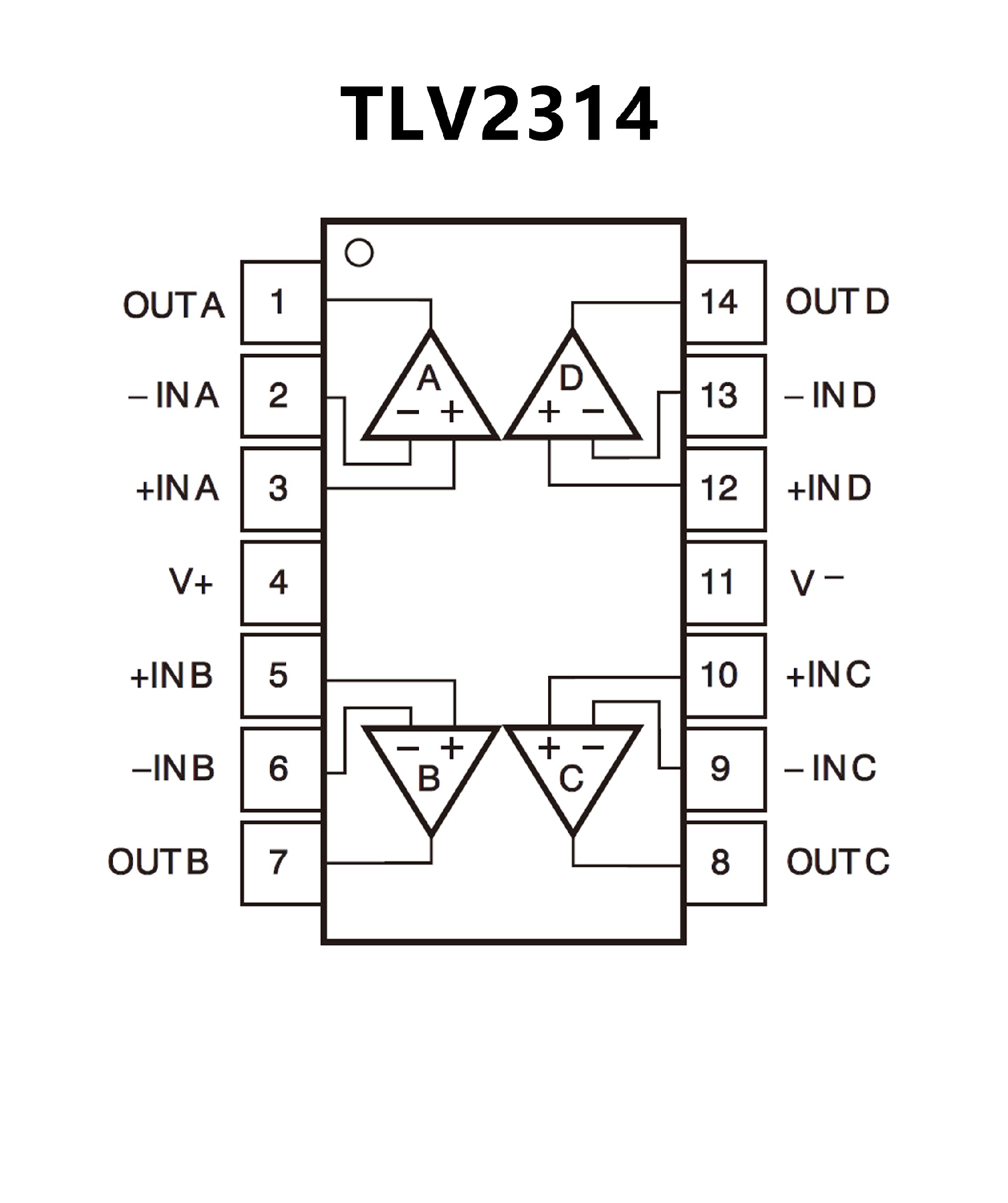

PIN CONFIGUTION
