470μA, 6MHz, Rail-to-Rail I/OCMOS Operational Amplifier,SGM8634XS14 Replace TS274AIDT.
SGM8634XS14
SGM8634XS14.pdf
SGM8634XS14.pdfFEATURES
• Rail-to-Rail Input and Output
• Input Offset Voltage: 3.5mV (MAX)
• High Gain-Bandwidth Product: 6MHz
• High Slew Rate: 3.7V/μs
• Settling Time to 0.1% with 2V Step: 2.1μs
• Overload Recovery Time: 0.9μs
• Low Noise: 12nV/ Hz
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
• Low Supply Current: 470μA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TSSOP-14 and SOIC-14 Packages

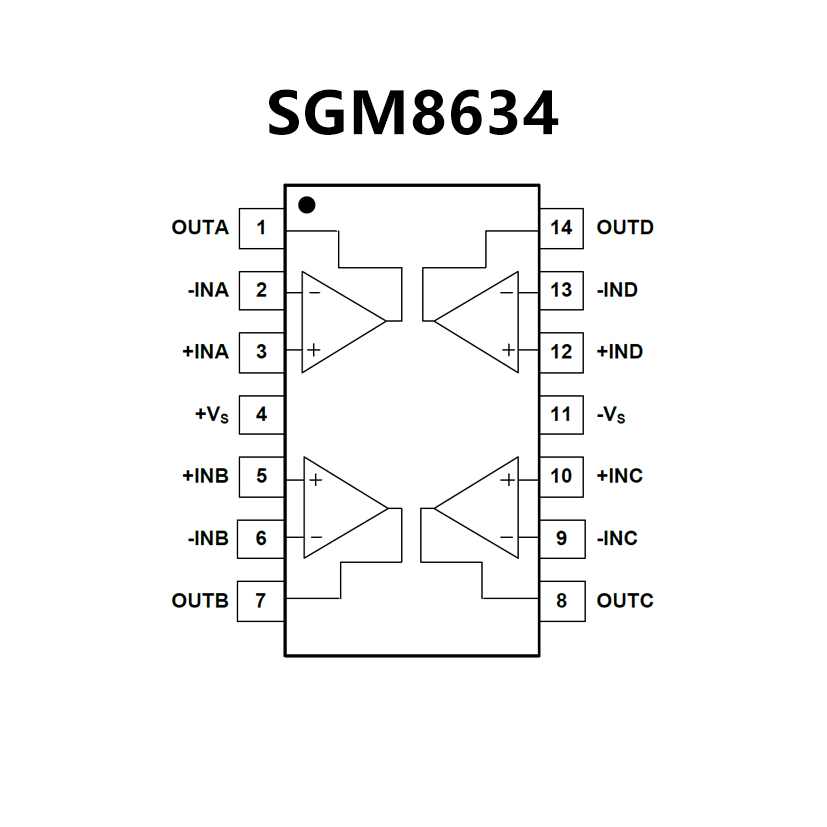

PIN CONFIGUTION
优势替代
FEATURES
• Output voltage can swing to ground
• Excellent phase margin on capacitive loads
• Gain bandwidth product: 3.5 MHz
• Unity gain stable
• Two input offset voltage selections

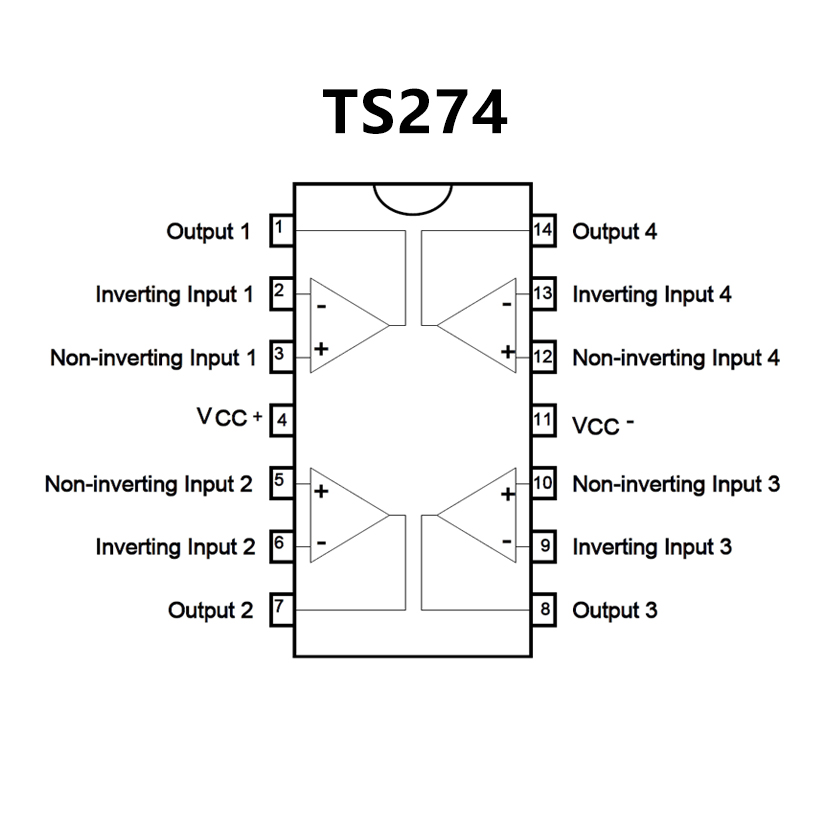

PIN CONFIGUTION
