• Rail-to-Rail Output

• Input Offset Voltage: 2mV (TYP)

• Gain-Bandwidth Product: 50MHz

• High Slew Rate: 66V/μs

• Settling Time to 0.1% with 2V Step: 60ns

• Overload Recovery Time: 25ns

• Low Noise: 8.7nV/ Hz

• Operates on 2.5V to 5.5V Supply

• Input Voltage Range: -0.2V to 3.8V with VS = 5V

• Low Supply Current:
2.3mA/Amplifier (TYP)

   75μA/Amplifier Shutdown Current for SGM8653/5

• -40℃ to +125℃ Operating Temperature Range

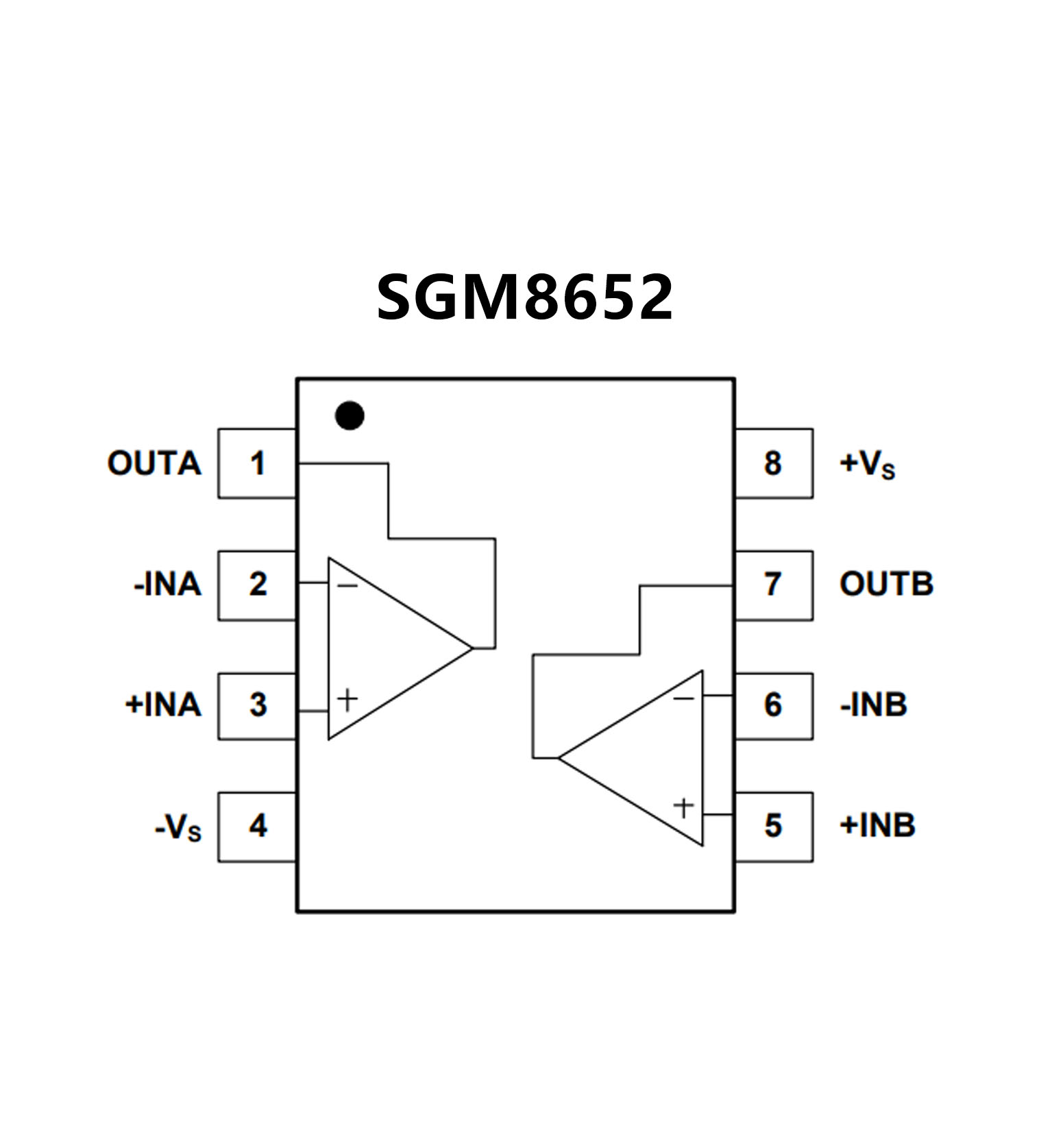

• Small Packaging:SGM8651 Available in Green

   SOT-23-5 andSOIC-8 PackagesSGM8652

   Available in Green MSOP-8 and SOIC-8P

   ackagesSGM8653 Available in Green SOT-23-6

   andSOIC-8 PackagesSGM8654 Available in

   Green TSSOP-14 andSOIC-14 PackagesSGM8655

    Available in a Green MSOP-10 Package
