High Speed Operational Amplifier, SGM8653 Replace OPA350.
SGM8653
SGM8653.pdf
SGM8653.pdfFEATURES
• Low Cost
• Rail-to-Rail Output 2mV Typical VOS
• Gain-Bandwidth Product: 50MHz
• High Slew Rate: 66V/μs
• Settling Time to 0.1% with 2V Step: 60ns
• Overload Recovery Time: 25ns
• Low Noise: 8.7nV/ Hz
• Operates on 2.5V to 5.5V Supplies
• Input Voltage Range = -0.2V to + 3.8V with VS = 5V
• Low Power
2.3mA/Amplifier Typical Supply Current
75μA/Amplifier when Disabled (SGM8653/5 Only)

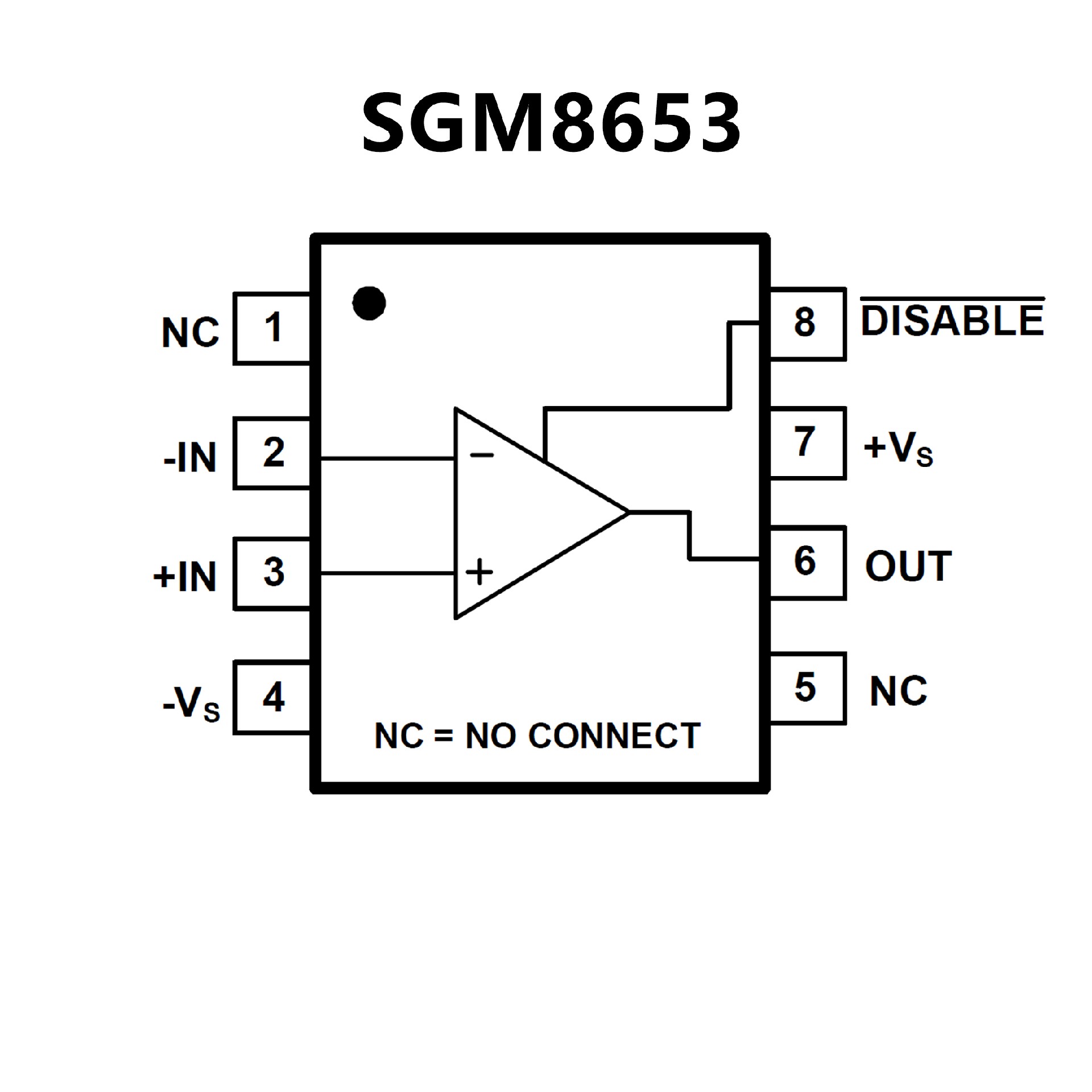

PIN CONFIGUTION
优势替代
FEATURES
• Rail-to-Rail Input
• Rail-to-Rail Output (Within 10 mV)
• Wide Bandwidth: 38 MHz
• High Slew Rate: 22 V/μs
• Low Noise: 5 nV/√Hz
• Low THD+Noise: 0.0006%
• Unity-Gain Stable
• MicroSize Packages
• Single, Dual, and Quad

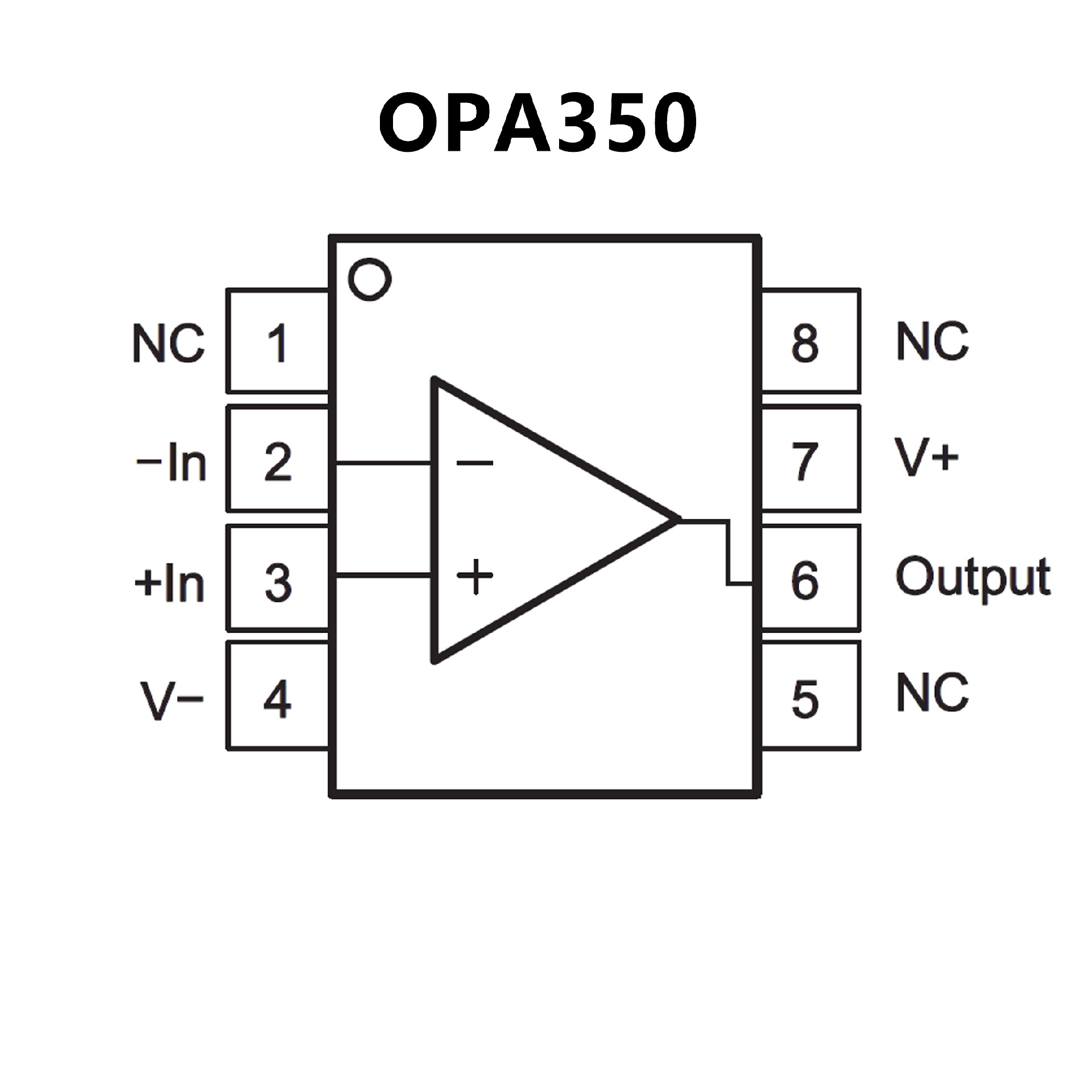

PIN CONFIGUTION
