Micro-Power, CMOS Input, RRIO, 1.4V,Push-Pull Output Comparator,SGM8701YN5G Replace TLV3491.
SGM8701YN5G
SGM8701YN5G.pdf
SGM8701YN5G.pdfFEATURES
• Ultra Low Power Consumption:
300nA (TYP) at VS = 1.4V
• Wide Supply Voltage Range: 1.4V to 5.5V
• Propagation Delay: 6μs (TYP) at VS = 1.4V
• Push-Pull Output Current Drive:
19mA (TYP) at VS = 5Vs
• Rail-to-Rail Input
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and SC70-5 Packages

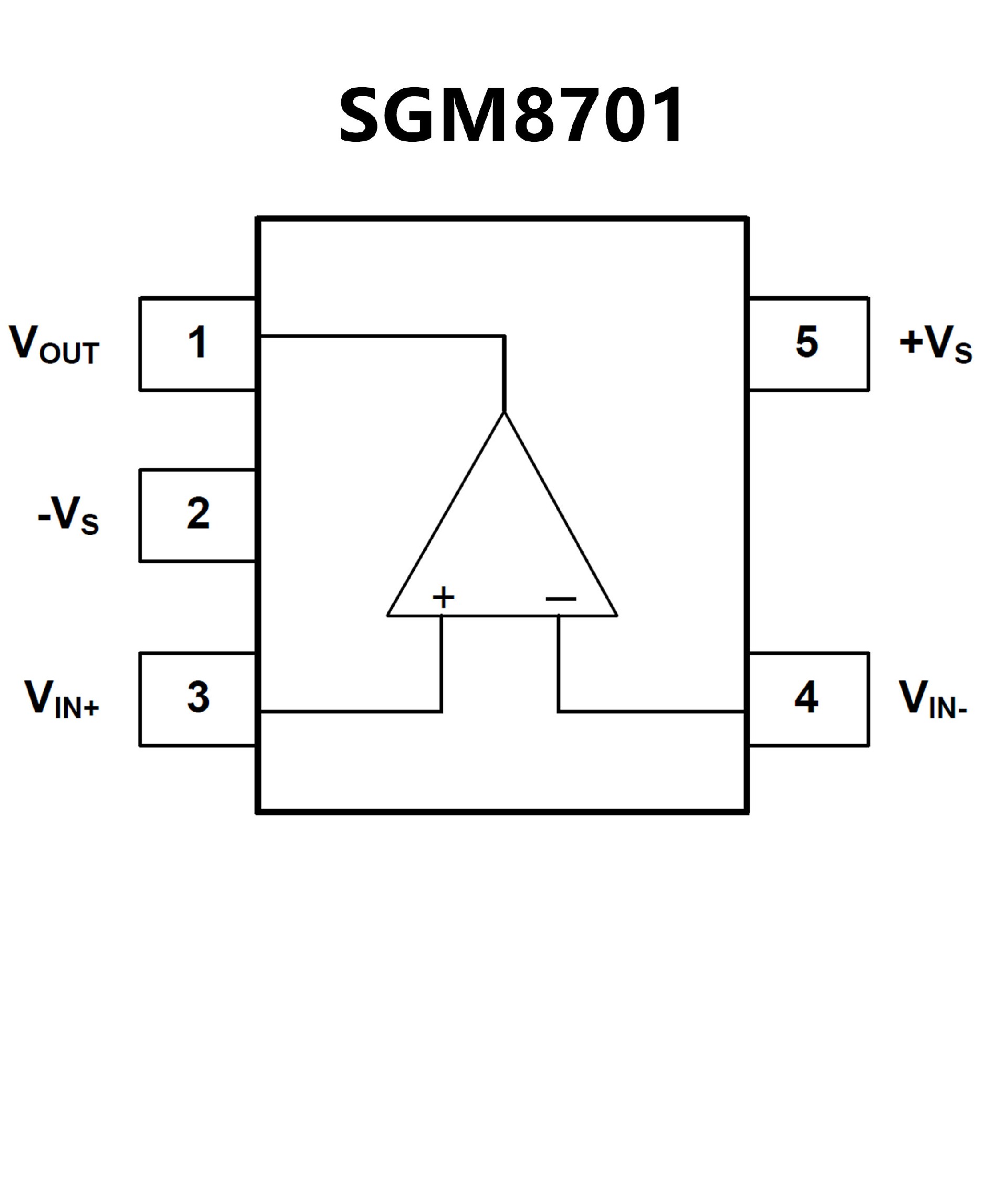

PIN CONFIGUTION
优势替代
FEATURES
• Very Low Supply Current: 0.8 μA (Typical)
• Input Common-Mode Range: 200-mV
BeyondSupply Rails
• Supply Voltage: 1.8 V to 5.5 V
• High Speed: 6 μs
• Push-Pull CMOS Output Stage
• Small Packages:
5-Pin SOT-23 (Single)
8-Pin SOT-23 (Dual)

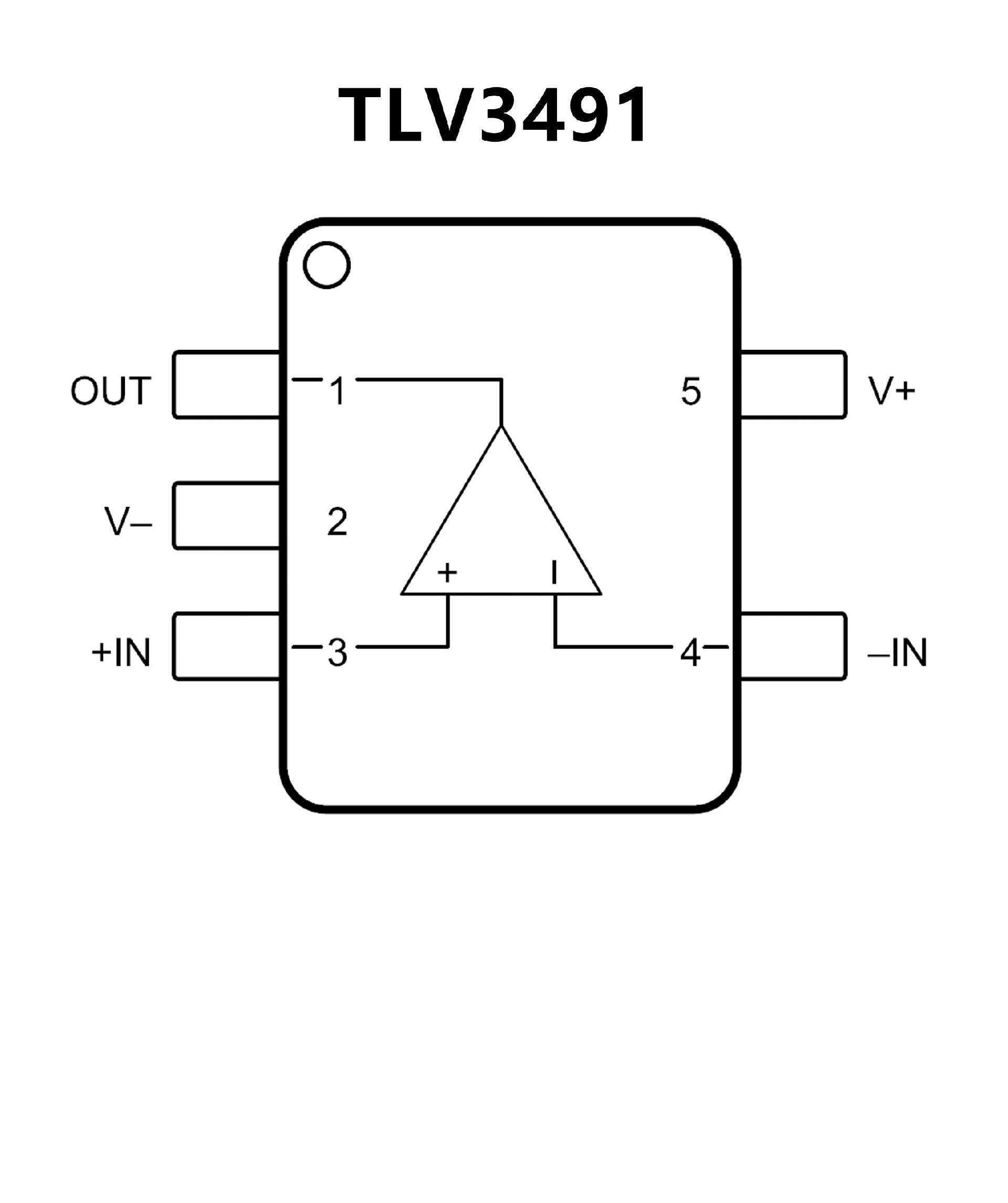

PIN CONFIGUTION
