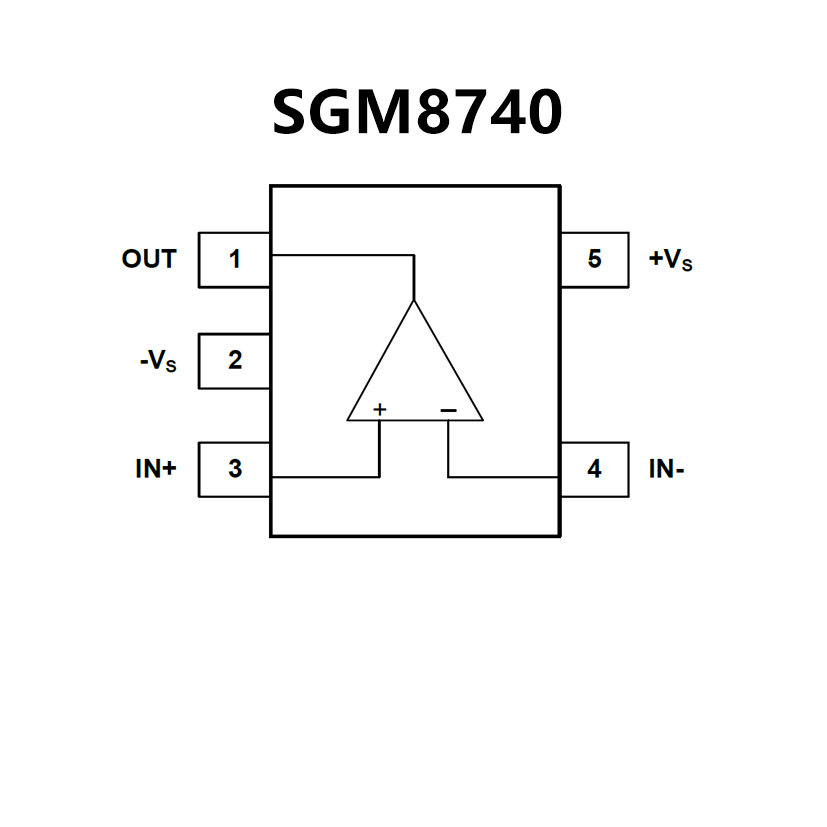

SGM8740YN5G.pdf• Fast, 45ns Propagation Delay (10mV Overdrive)
• Low Power Consumption:
155μA (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.9mV (TYP)
• Internal Hysteresis for Clean Switching
• Output Swing to within 200mV from Rails with
4mA Output Current
• CMOS/TTL-Compatible Output
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and SC70-5 Packages

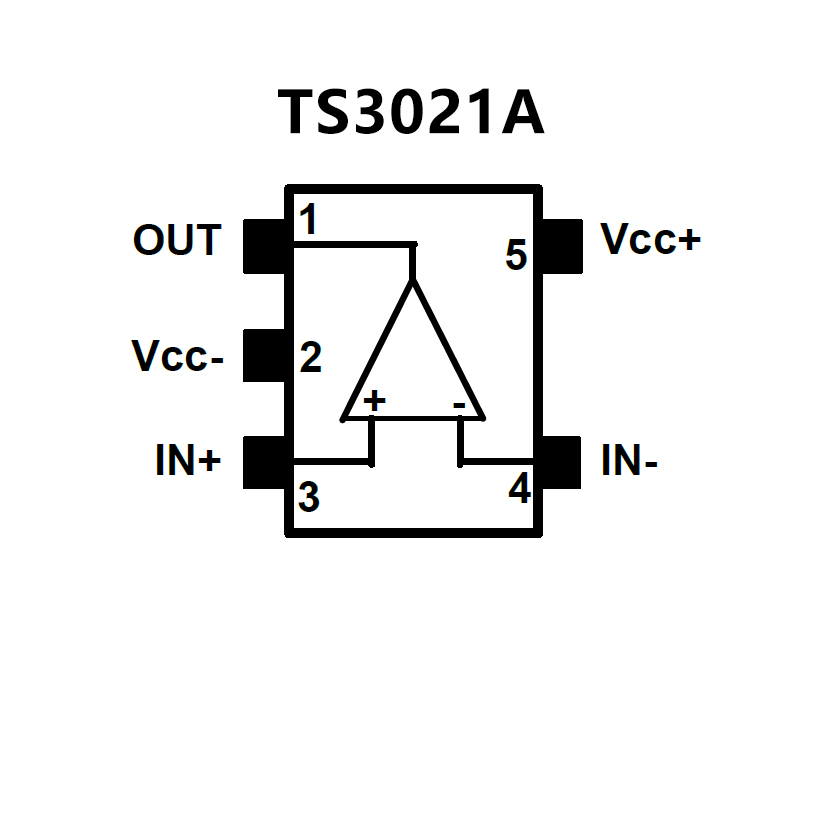

• Propagation delay: 38 ns
• Low current consumption: 73 μA
• Rail-to-rail inputs
• Push-pull outputs
• Supply operation from 1.8 to 5 V
• Wide temperature range: -40 °C to 125 °C
• High ESD tolerance: 5 kV HBM, 300 V MM
• Latch-up immunity: 200 mA
• SMD packages
• Automotive qualification
