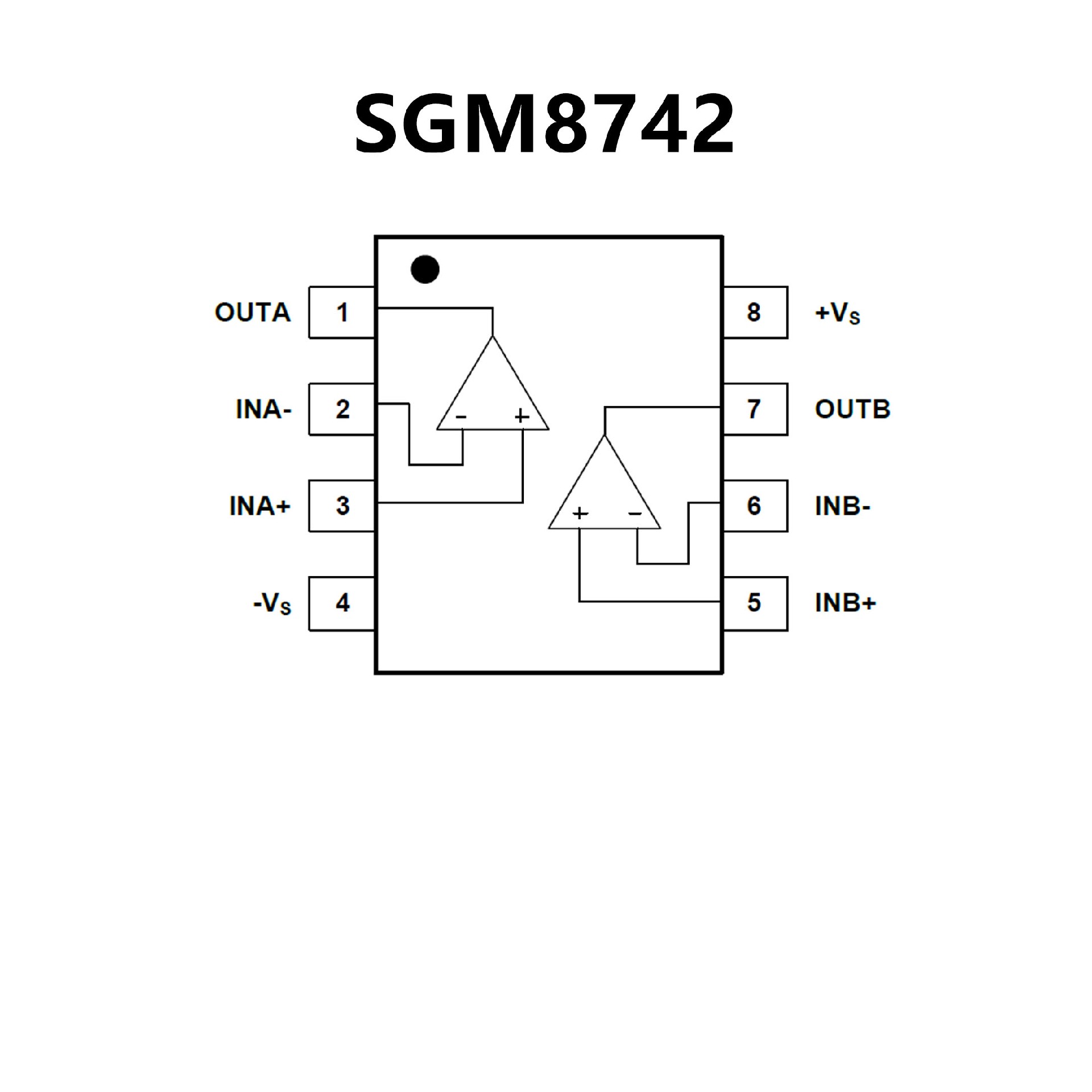

SGM8742.pdf• Fast, 45ns Propagation Delay (10mV Overdrive)
• Low Power Consumption:
305μA (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.9mV (TYP)
• Internal Hysteresis for Clean Switching
• Output Swing to within 200mV from Rails with
4mA Output Current
• CMOS/TTL-Compatible Outputs
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

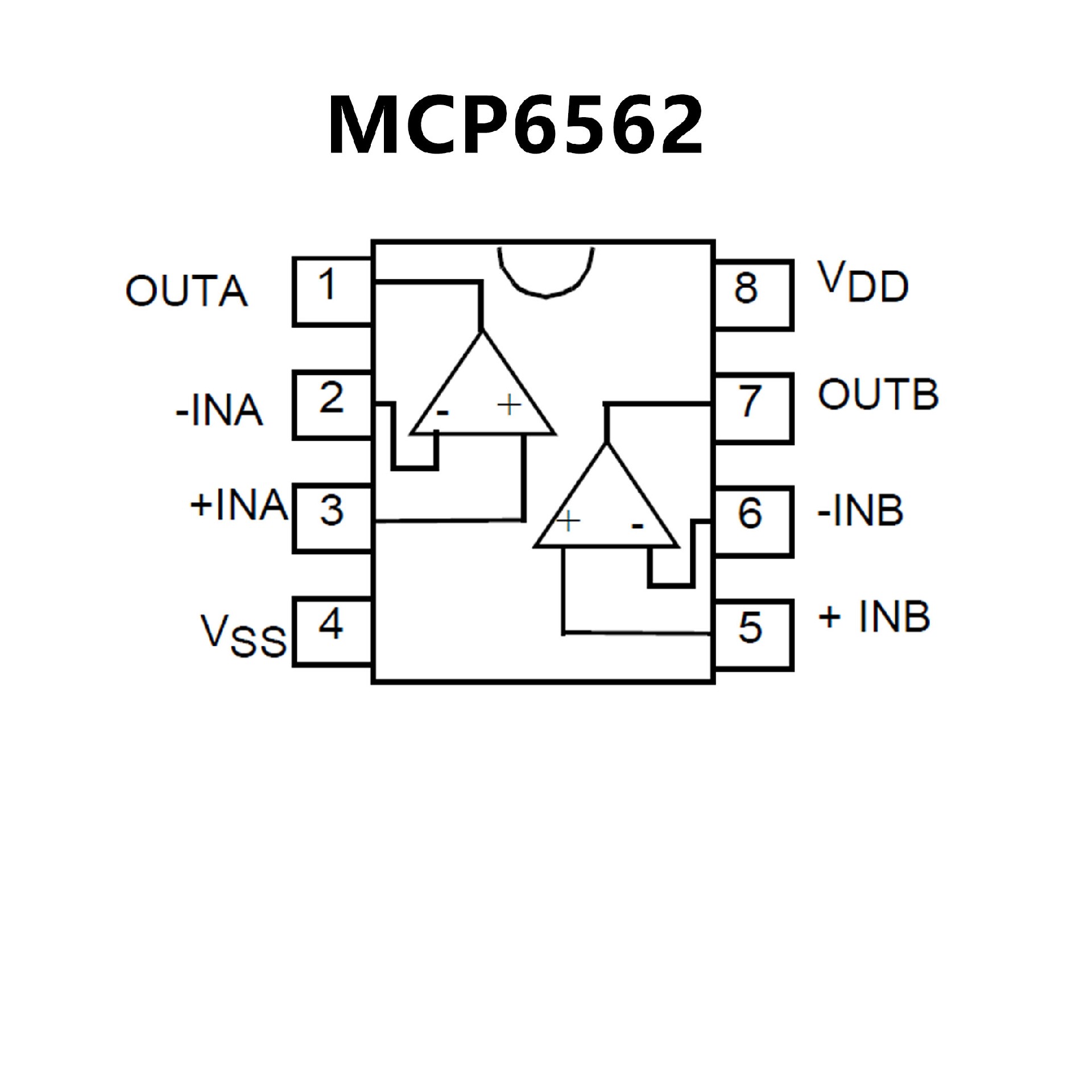

• Propagation Delay at 1.8VDD:
56 ns (typical) High-to-Low
49 ns (typical) Low-to-High
• Low Quiescent Current: 100 μA (typical)
• Input Offset Voltage: ±3 mV (typical)
• Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
• CMOS/TTL-Compatible Output
• Wide Supply Voltage Range: 1.8V to 5.5V
• Available in Single, Dual, and Quad
• Packages: SC70-5, SOT-23-5, SOIC, MSOP,
TSSOP
