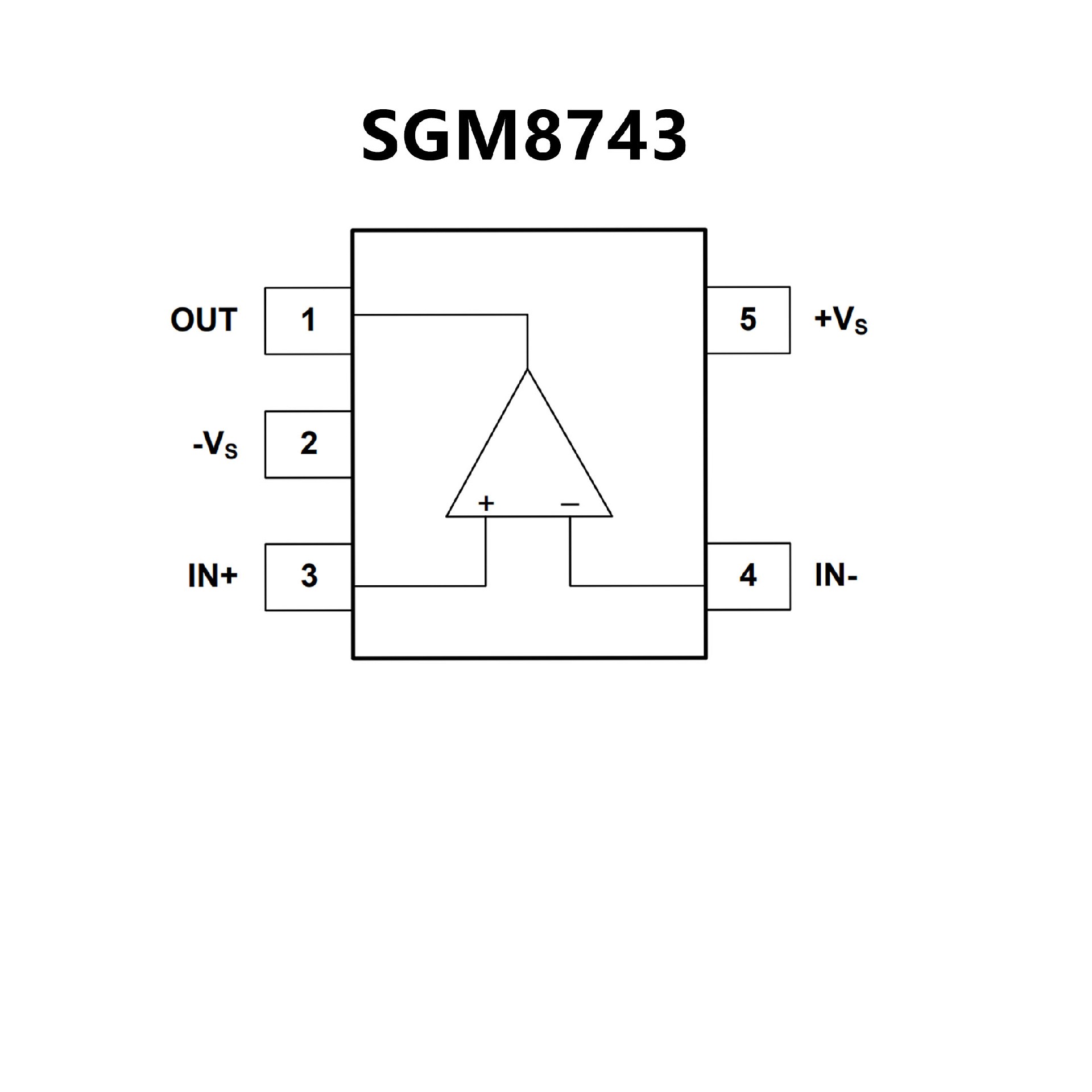

SGM8743.pdf• Fast, 6ns Propagation Delay (100mV Overdrive)
• Low Power Consumption:1.3mA (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.8mV (TYP)
• Internal Hysteresis for Clean Switching
• Output Swing to within 195mV from Rails
with4mA Output Current
• CMOS/TTL-Compatible Output
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and SC70-5 Packages

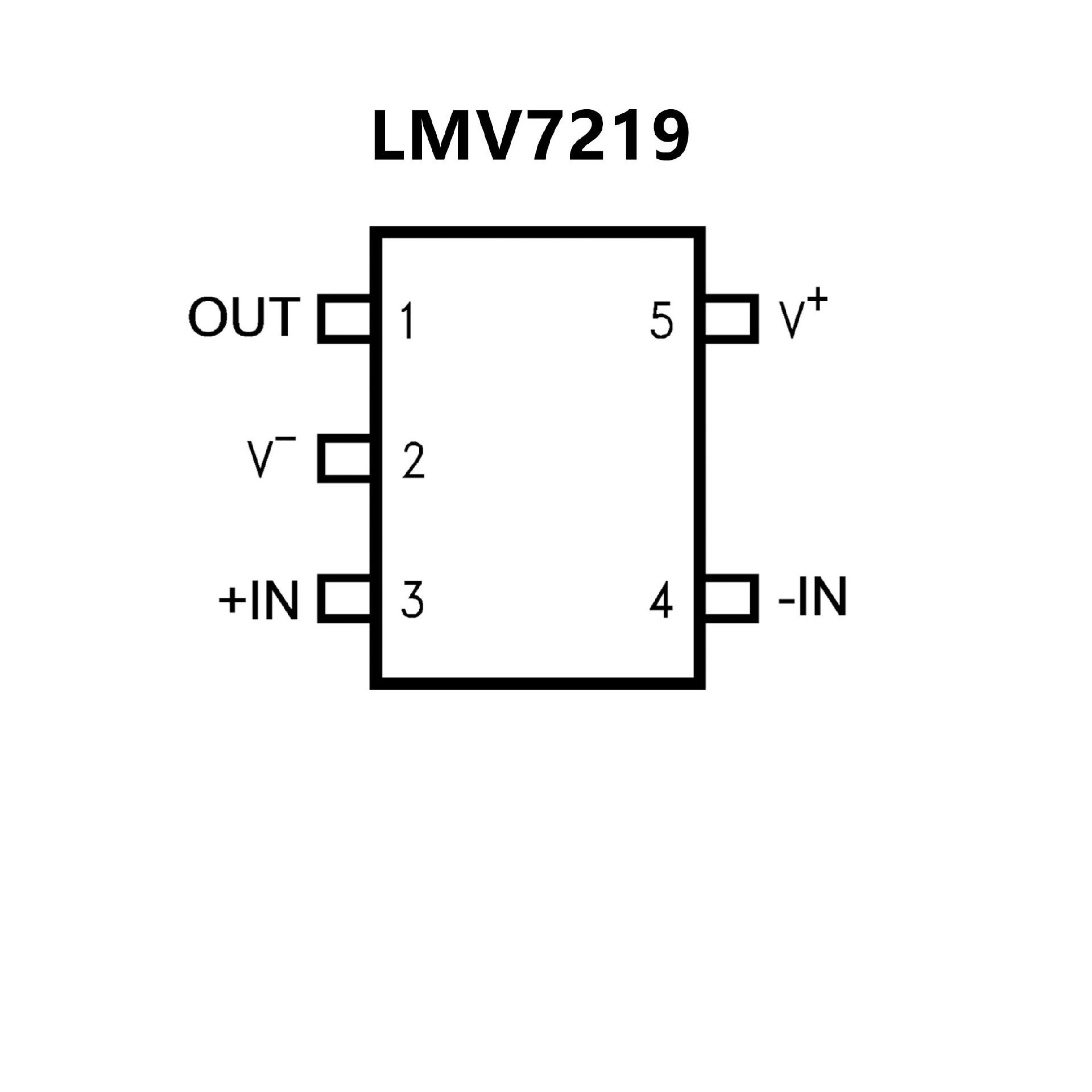

• (VS = 5 V, TA = 25°C, Typical Values UnlessSpecified)
• Propagation Delay 7 ns
• Low Supply Current 1.1 mA
• Input Common Mode Voltage Range
Extends200 mv Below Ground
• Ideal for 2.7-V and 5-V Single Supply Applications
• Internal Hysteresis Ensures Clean Switching
• Fast Rise and Fall Time 1.3 ns
• Available in Space-saving Packages: SC-70 andSOT-23
• Supports 105°C PCB Temperature
