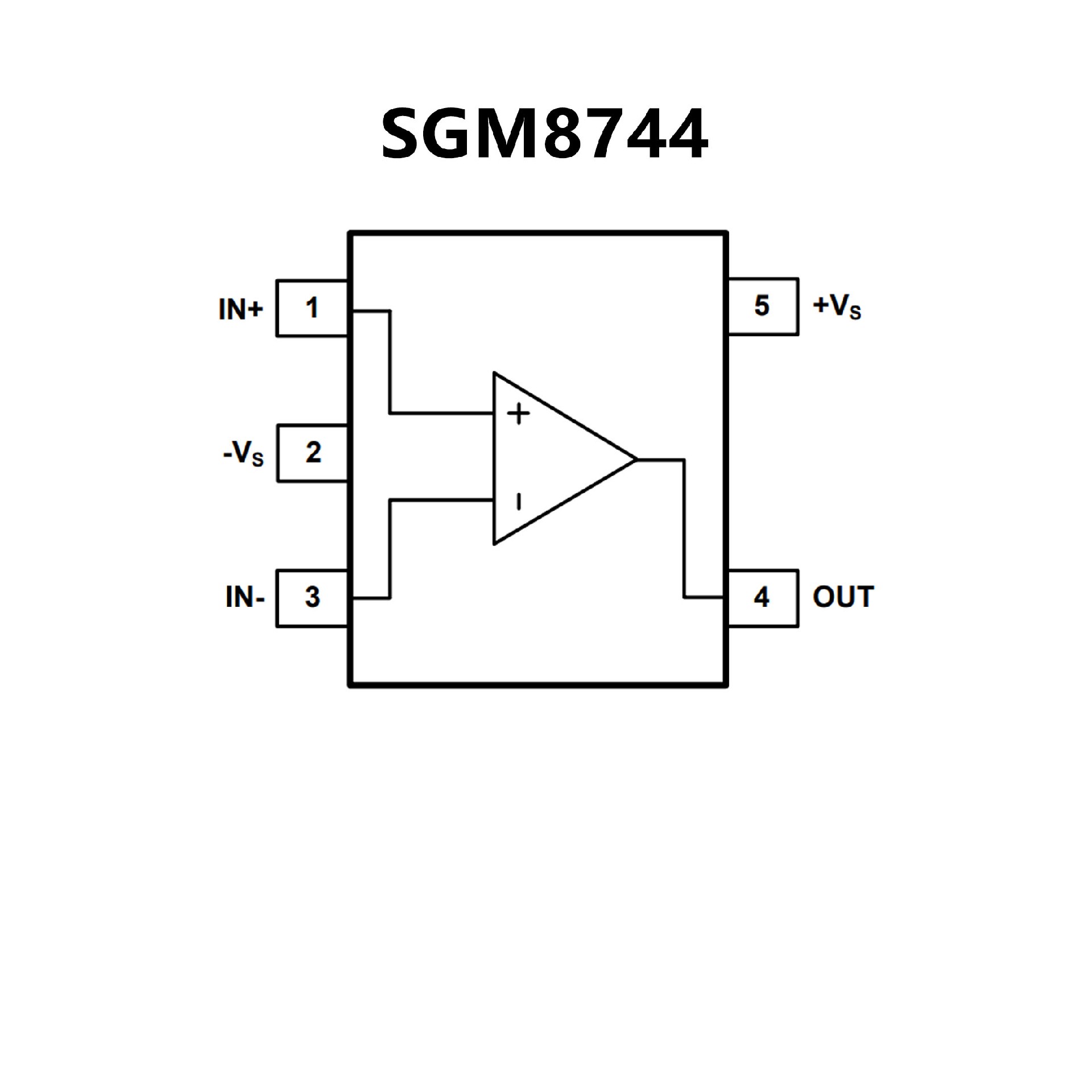

SGM8744.pdf• Fast, 6ns Propagation Delay (100mV Overdrive)
• Low Power Consumption:
1.3mA (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.8mV (TYP)
• Internal Hysteresis for Clean Switching
• Output Swing to within 195mV from
Rails with4mA Output Current
• CMOS/TTL-Compatible Output
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and SC70-5 Packages
• Low-Cost Solution Available in Space-Saving

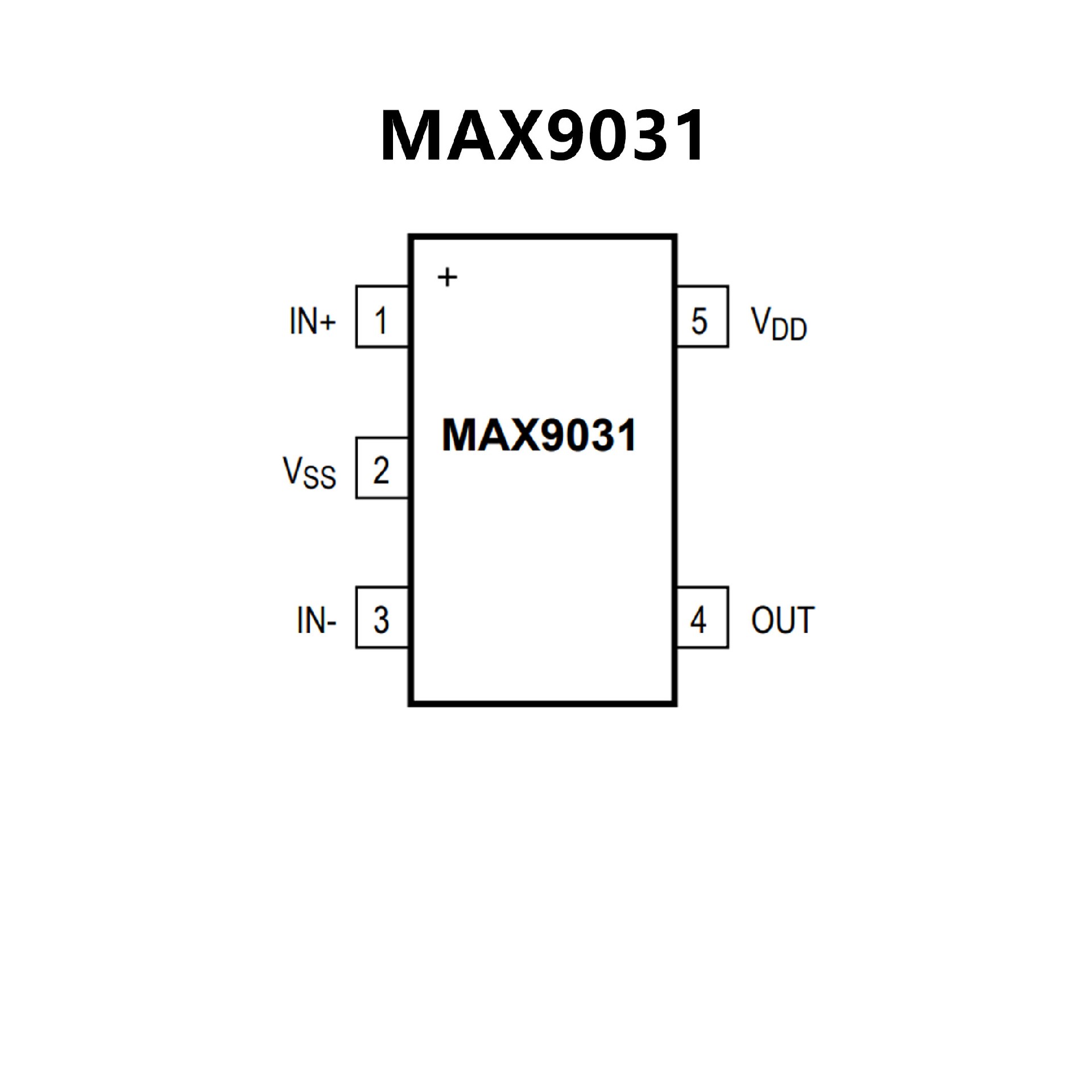

SC70Packages (MAX9030/MAX9031)
• +2.5 to +5.5V Single-Supply Voltage Range
• Comparator Output Swings Rail-to-Rail
• Internal 4mV Comparator Hysteresis
• 188ns Propagation Delay
• Low 35μA Supply Current
• No Phase Reversal for Overdriven Inputs
• Space-Saving Packages
5-Pin SC70 (MAX9031)
6-Pin SC70 (MAX9030)
8-Pin SOT23 (MAX9032)
14-Pin TSSOP (MAX9034)
