155ns, Low-Power, 3V/5V, Rail-to-RailInput Single-Supply Comparator,SGM8748YMS8G Replace TLV7256IDDUR.
SGM8748YMS8G
SGM8748YMS8G.pdf
SGM8748YMS8G.pdfFEATURES
• Fast, 155ns Propagation Delay (10mV Overdrive)
• Low Power Consumption:
45μA (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.8mV (TYP)
• Internal Hysteresis for Clean Switching
• Output Swing to within 190mV from Rails with
4mA Output Current
• CMOS/TTL-Compatible Outputs
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

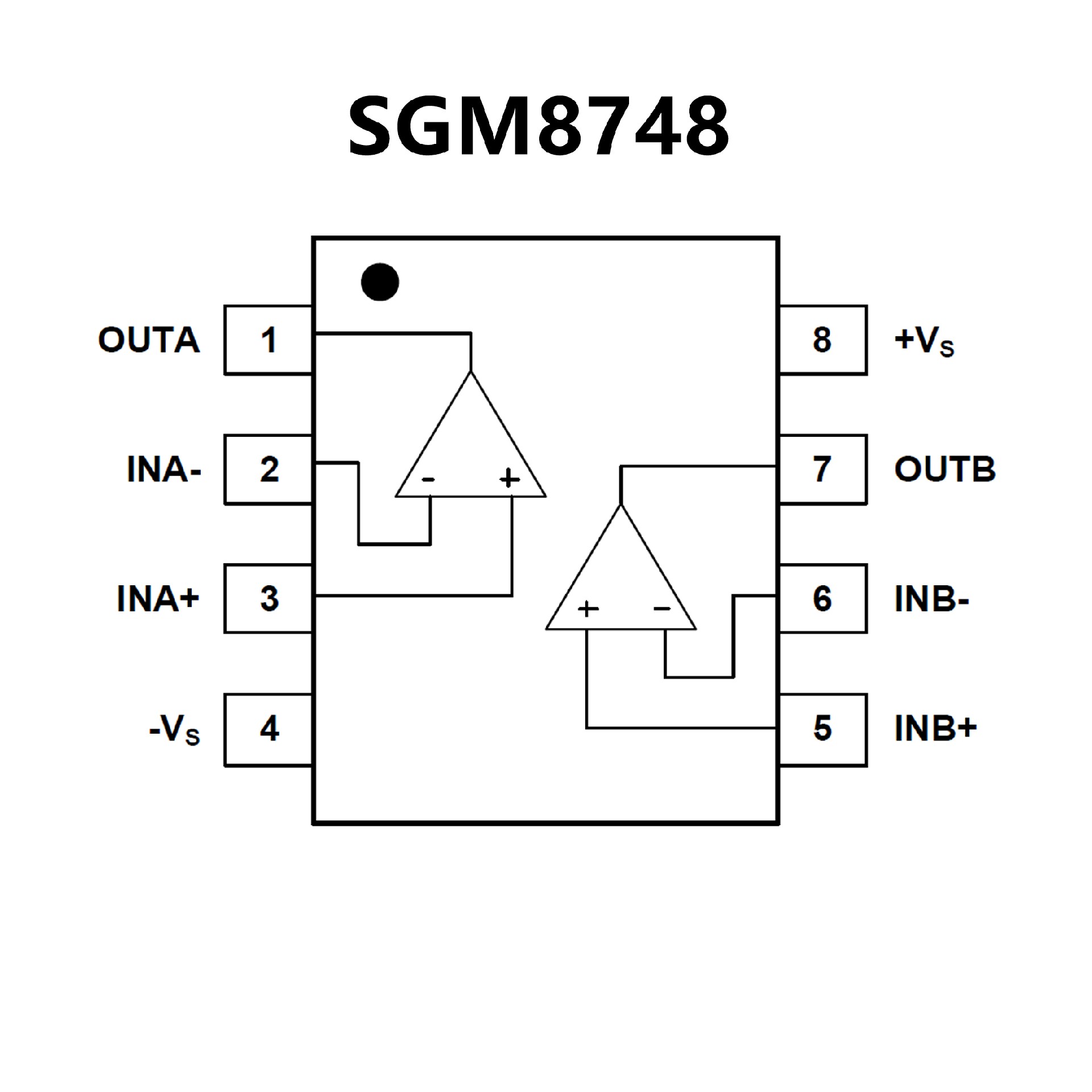

PIN CONFIGUTION
优势替代
FEATURES
• Low Supply Current¼20 mA Typ
• Single Power Supply
• Rail-to-Rail Common-Mode Input Voltage
Range
• Push-Pull Output Circuit
• Low Input-Bias Current

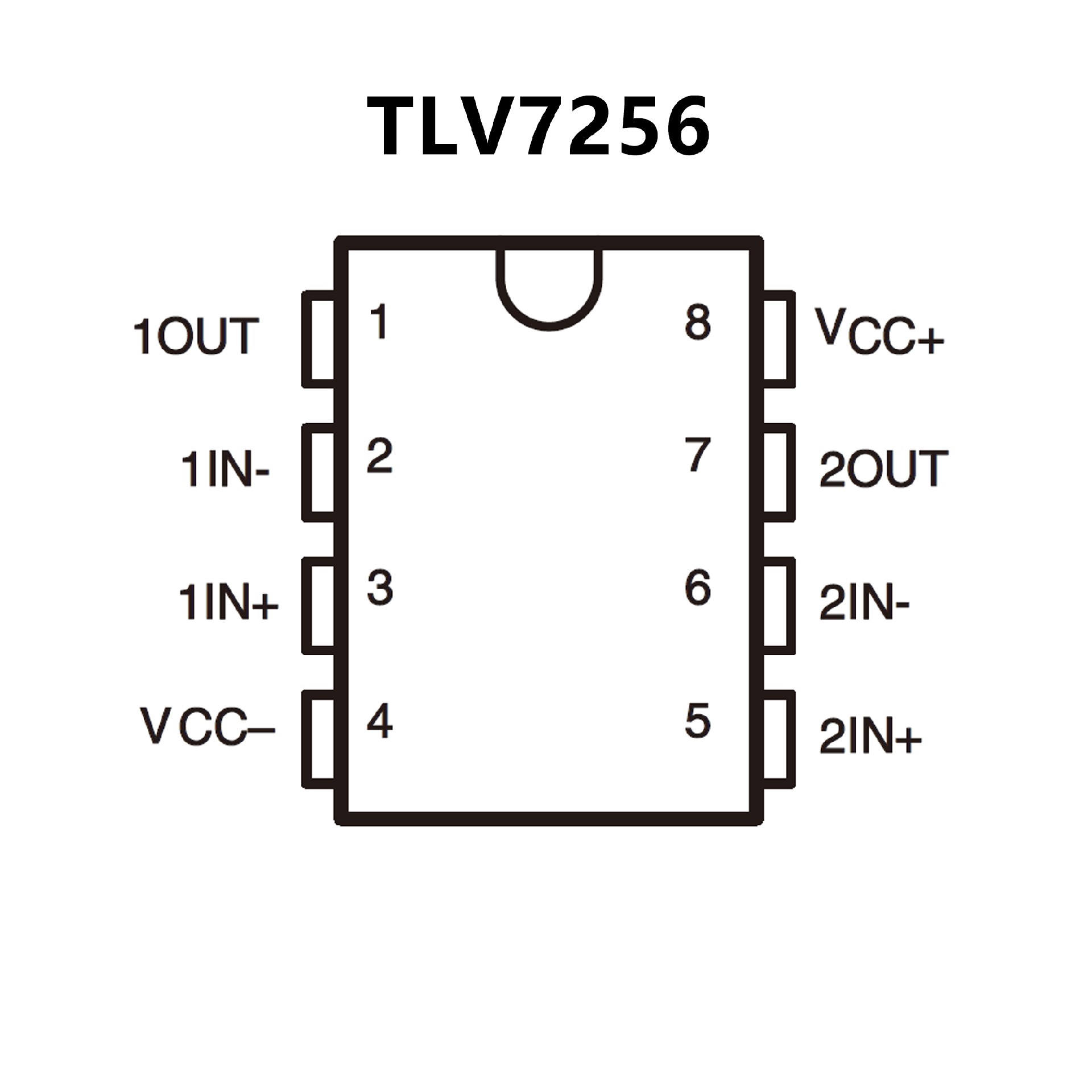

PIN CONFIGUTION
