SGM8750.pdf• Fast, 150ns Propagation Delay (10mV Overdrive)
• Low Power Consumption: 22μA/Channel (TYP) at VS = 3V
• Wide Supply Voltage Range: 2.7V to 5.5V
• Optimized for 3V and 5V Applications
• Open Drain Output
• Rail-to-Rail Input Voltage Range
• Low Offset Voltage: 0.8mV (TYP)
• Output Swing 185mV with 4mA Output Current
• CMOS/TTL-Compatible Output
• -40℃ to +85℃ Operating Temperature Range

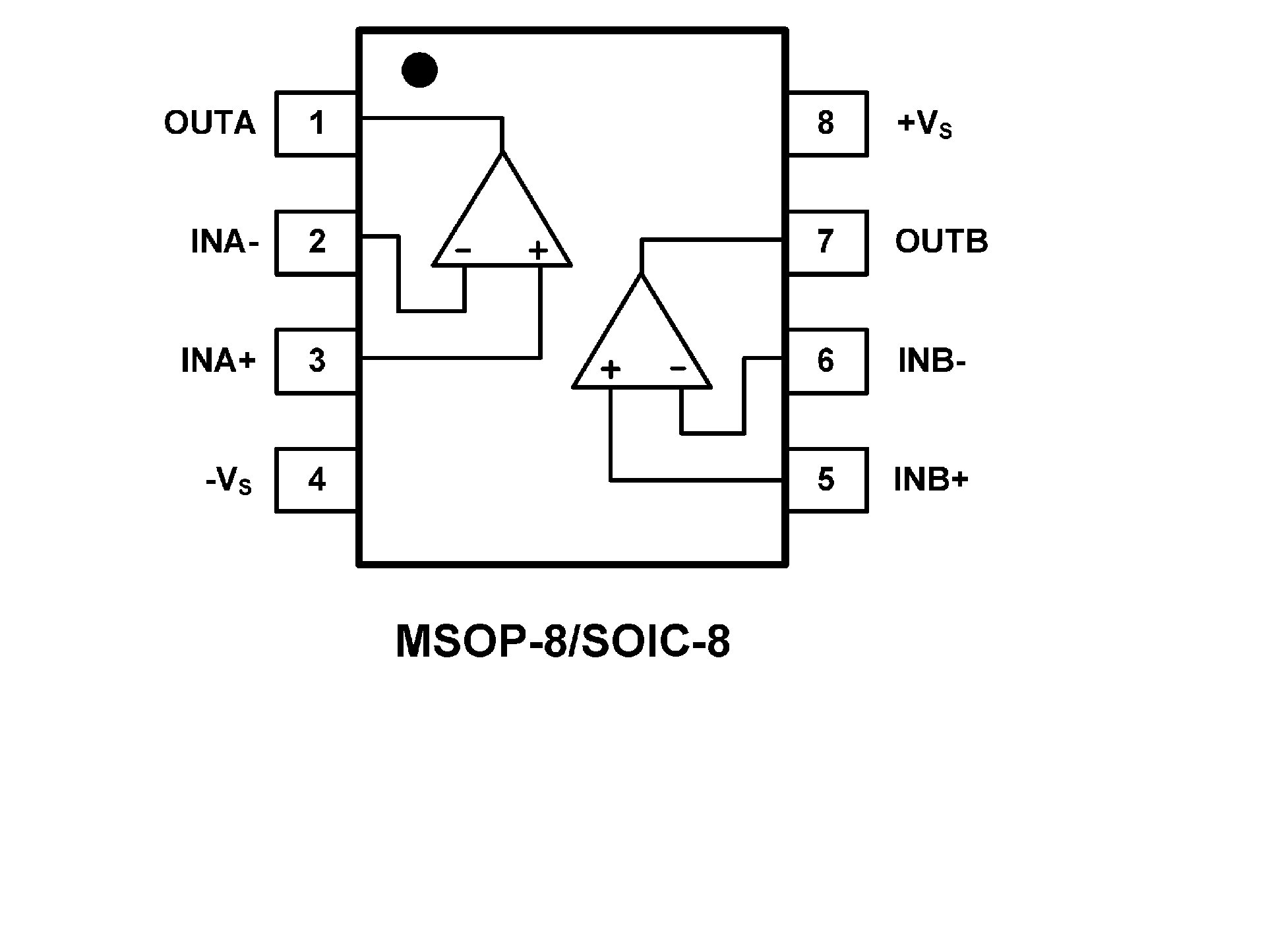

• Available in Green MSOP-8 and SOIC-8 Packages
• Guaranteed 2.7 V and 5 V Performance
• Input Common−mode Voltage Range Extends to Ground
• Open Drain Output for Wired−OR Applications
• Low Quiescent Current: 60 A/channel TYP @ 5V
• Low Saturation Voltage 200 mV TYP @ 5V
• Propagation Delay 200 ns TYP @ 5V
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and
are RoHS Compliant
