4.5ns Rail to Rail, High Speed Comparator in Microsize Packages, SGM8752-1Q P2P TLV3501-Q1.
SGM8752-1Q
SGM8752-1Q.pdf
SGM8752-1Q.pdfFEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• High Speed: 6.5ns Propagation Delay
• Push-Pull CMOS Output Structure
• Rail-to-Rail Input and Output
• Supply Voltage: 2.7V to 5.5V
• Low Quiescent Current: 1.8mA
• Available in a Green SOT-23-5 Package

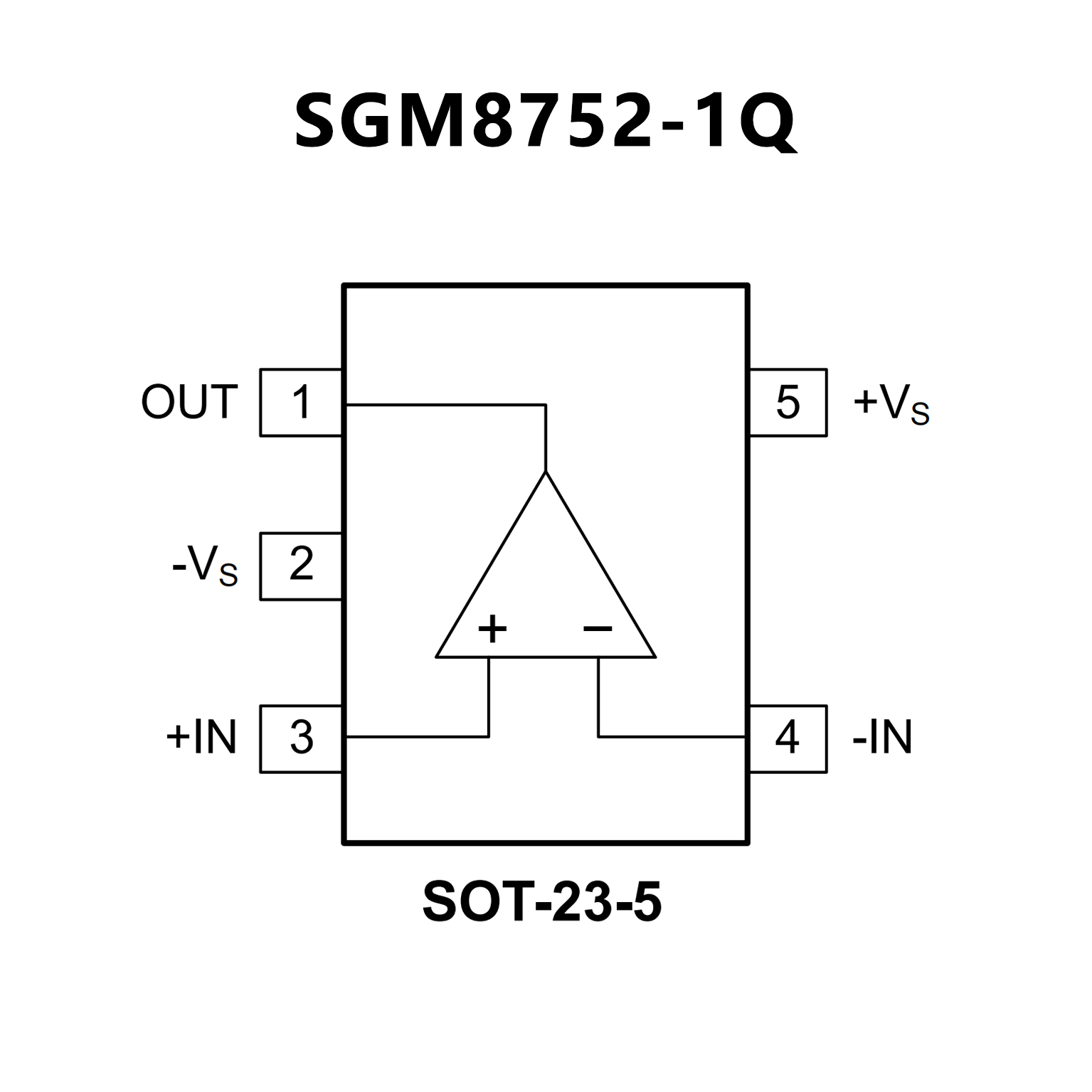

PIN CONFIGUTION
优势替代
FEATURES
• Qualified for Automotive Applications
Device Temperature Grade 1: –40°C to
125°C Ambient Operating Temperature Range
Device HBM Classification Level 2
Device CDM Classification Level C4B
• High Speed: 4.5 ns
• Rail-To-Rail I/O
Supply Voltage: 2.7 V to 5.5 V
• Push-Pull CMOS Output Stage
• Shutdown
• Micro Package: SOT23-6
• Low Supply Current: 3.2 mA
• Z-Suffix Offers Improved Delamination

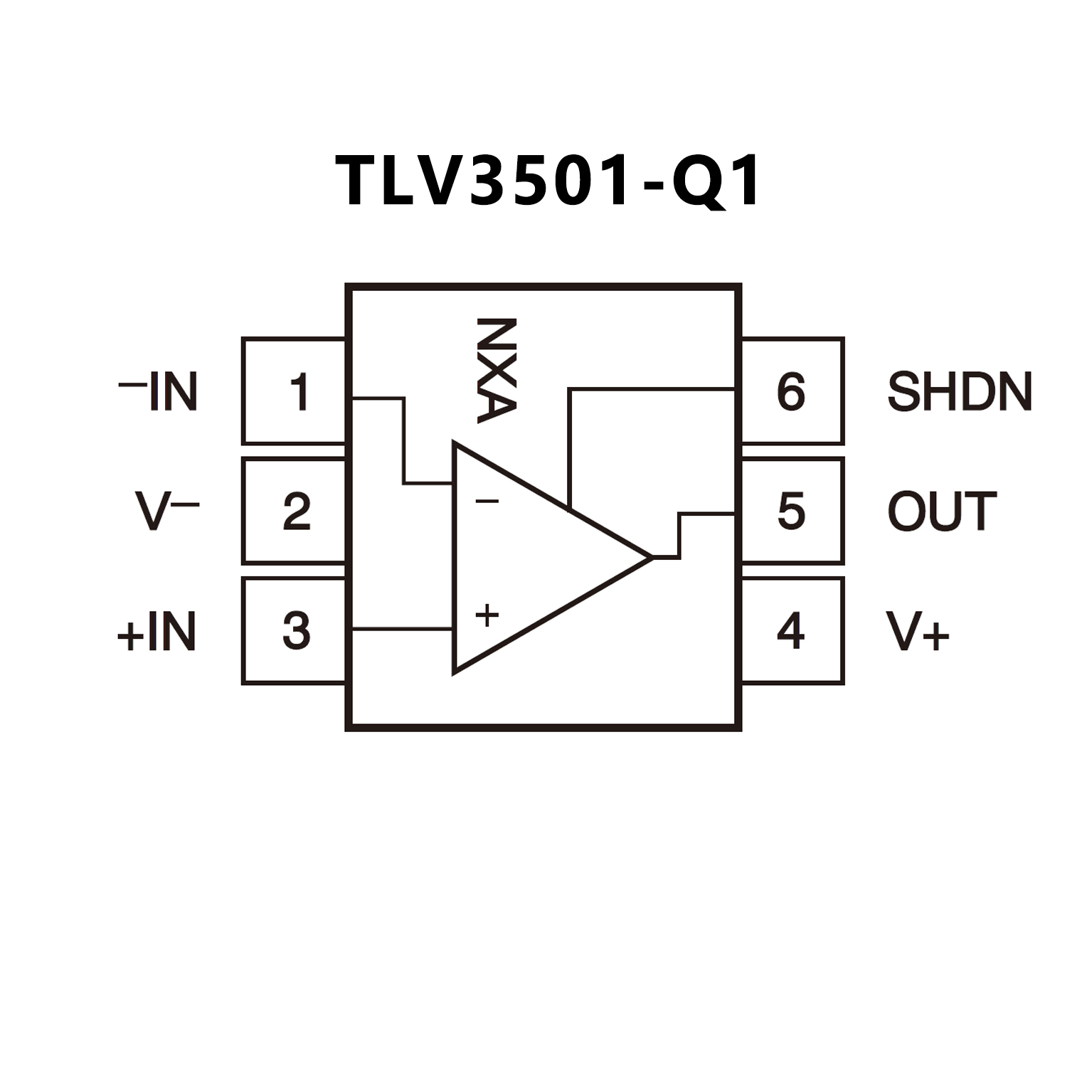

PIN CONFIGUTION
