SGM8770.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Open-Drain Output
• Low Supply Current Independent
of Supply Voltage: 310μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage
Range Includes Ground
• Differential Input Voltage Range
Equal to Maximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-3×3-8L Packages

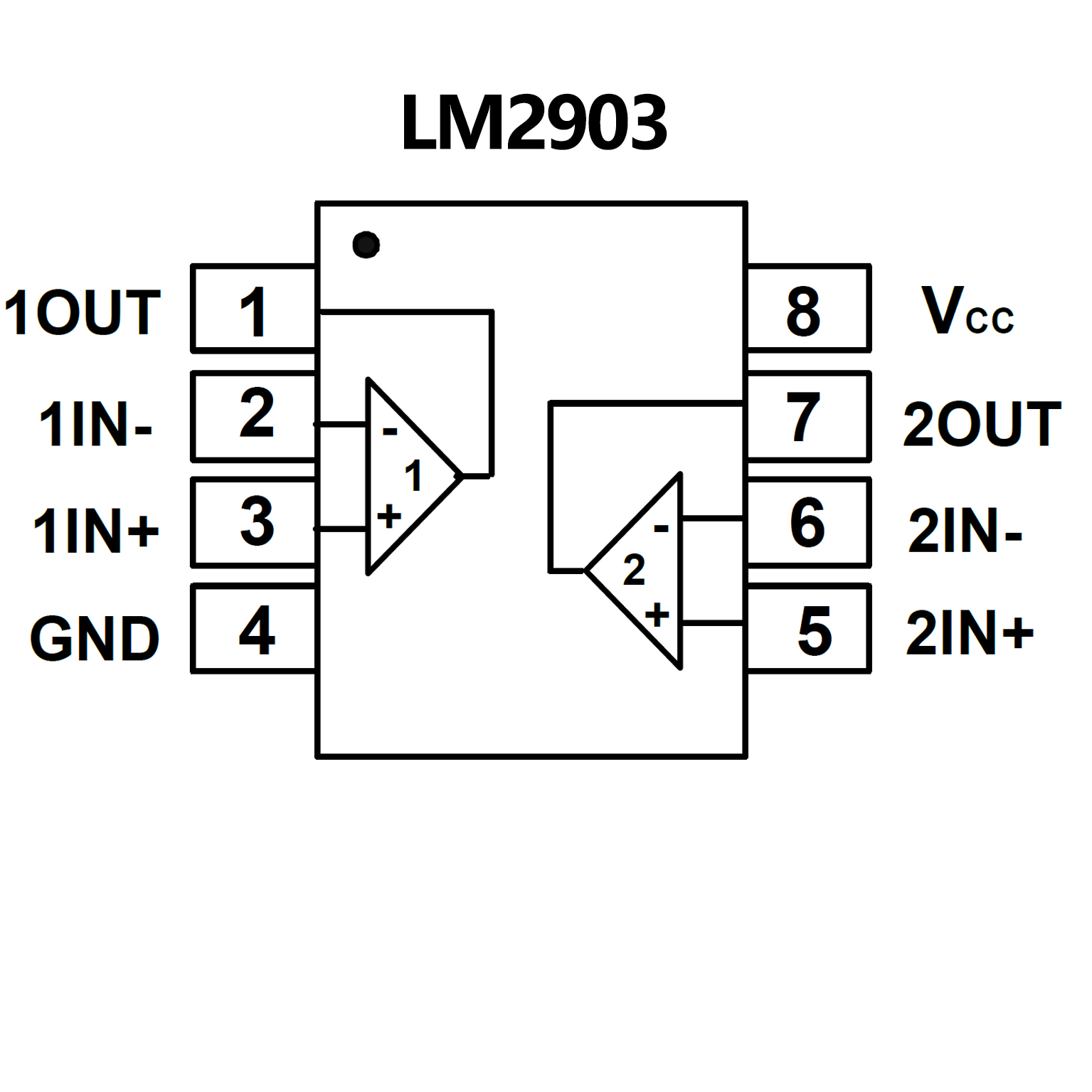

• Wide Power Supply Range:
• Single Supply: 2V to 36V
• Dual Supplies: ±1.0V to ±18V
• Very Low Supply Current Drain—Independent of Supply Voltage
• LM2903: 0.6mA
• LM2901: 0.9mA
• Low Input Bias Current: 25nA
• Low Input Offset Current: ±5nA
• Typical Offset Voltage:
• Non-A Device: 2mV
• A Device: 1mV
• Common-Mode Input Voltage Range Includes Ground
• Differential Input Voltage Range Equal to the Power SupplyVoltage
• Low Output Saturation Voltage:
• LM2903: 200mV at 4mA
• LM2901: 100mV at 4mA
• Output Voltage Compatible with TTL, MOS and CMOS
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
