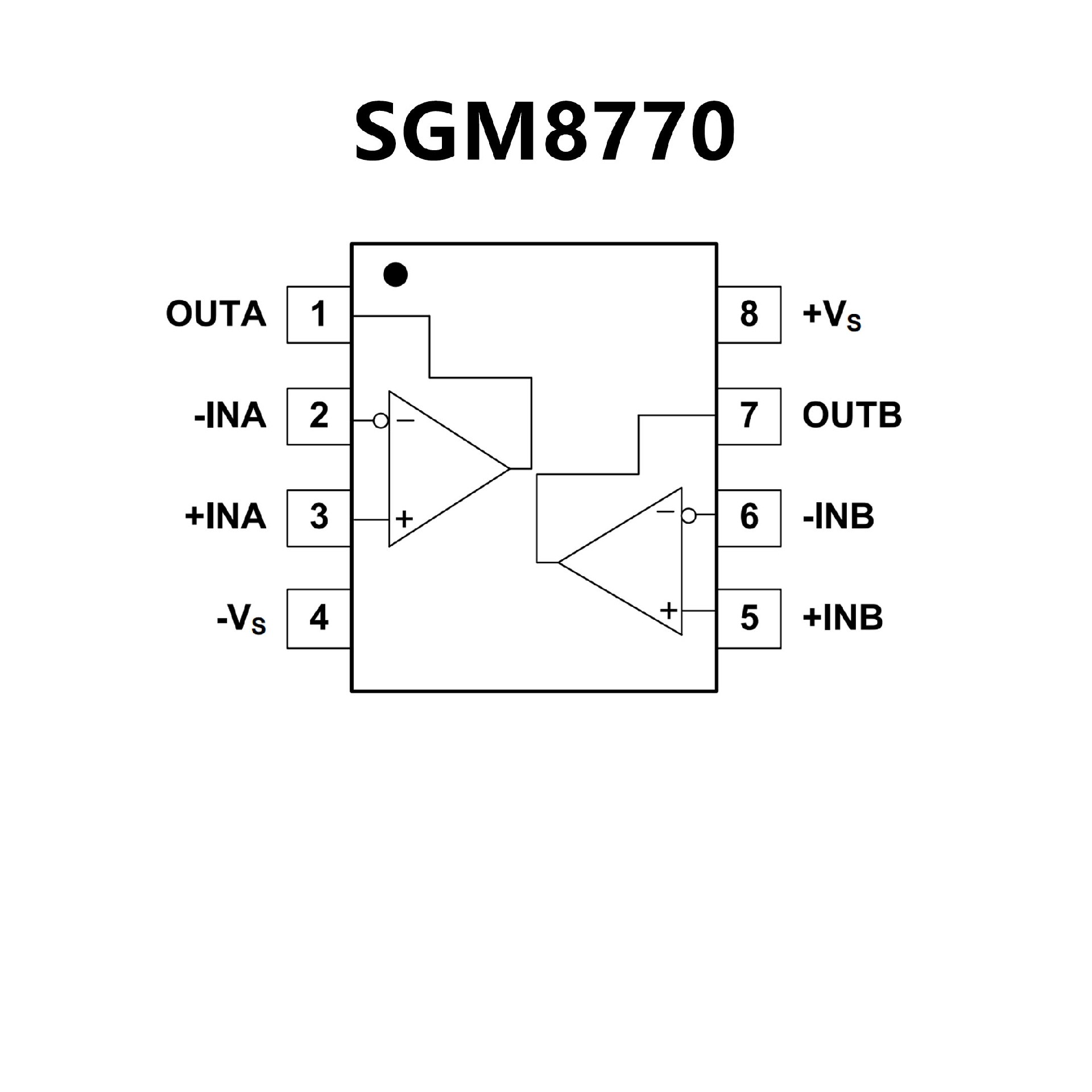

SGM8770.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Open-Drain Output
• Low Supply Current Independent
of Supply Voltage: 310μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage
Range Includes Ground
• Differential Input Voltage Range
Equal to Maximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-3×3-8L Packages
• (Typical Unless Otherwise Noted)

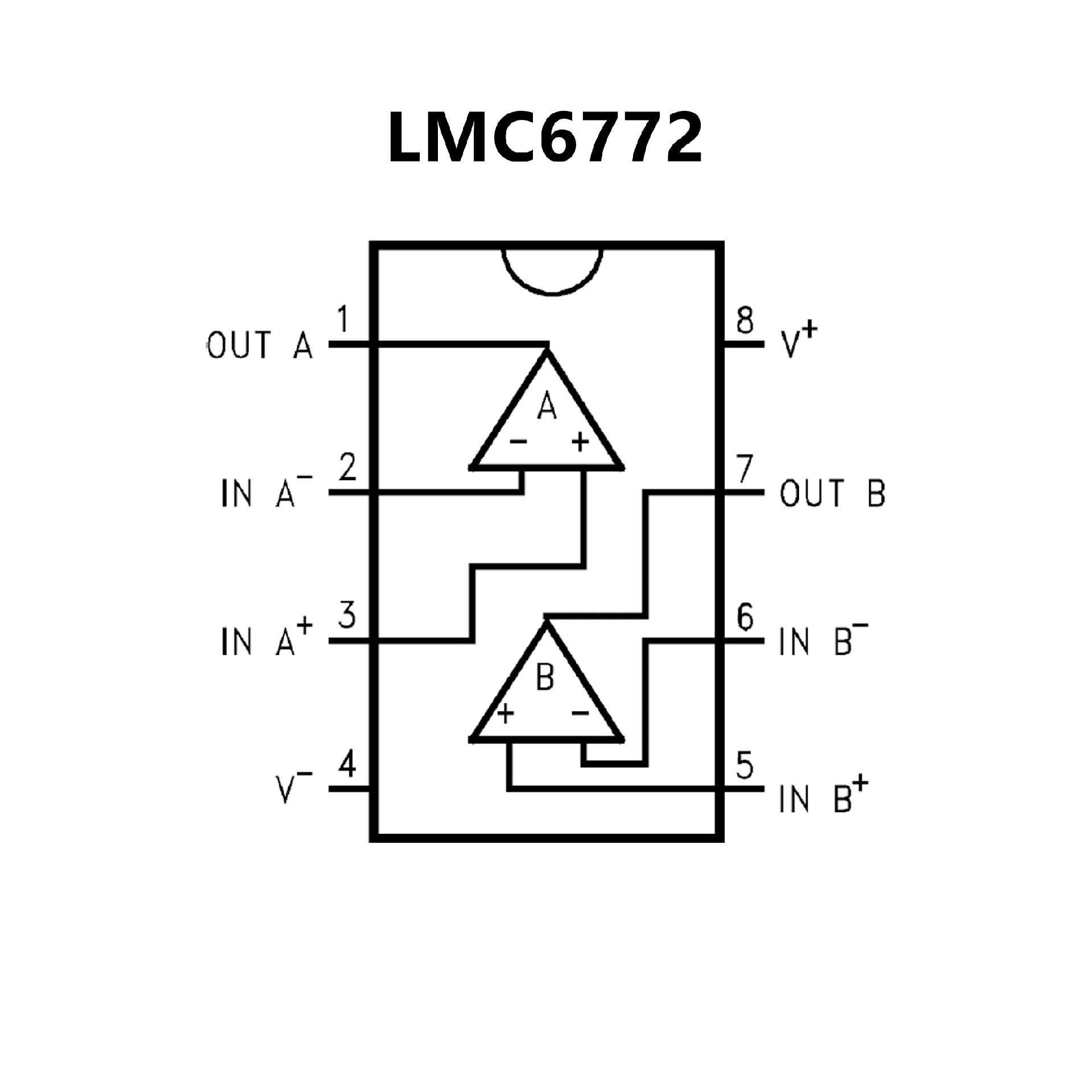

• Low Power Consumption (Max): IS = 10 μA/comp
• Wide Range of Supply Voltages: 2.7V to 15V
• Rail-to-Rail Input Common Mode Voltage Range
• Open Drain Output
• Short Circuit Protection: 40 mA
• Propagation Delay (@VS = 5V, 100 mV Overdrive): 5 μs
• LMC6772Q is AEC-Q Qualified
• LMC6772Q has −40°C to 125°C Temperature Range
