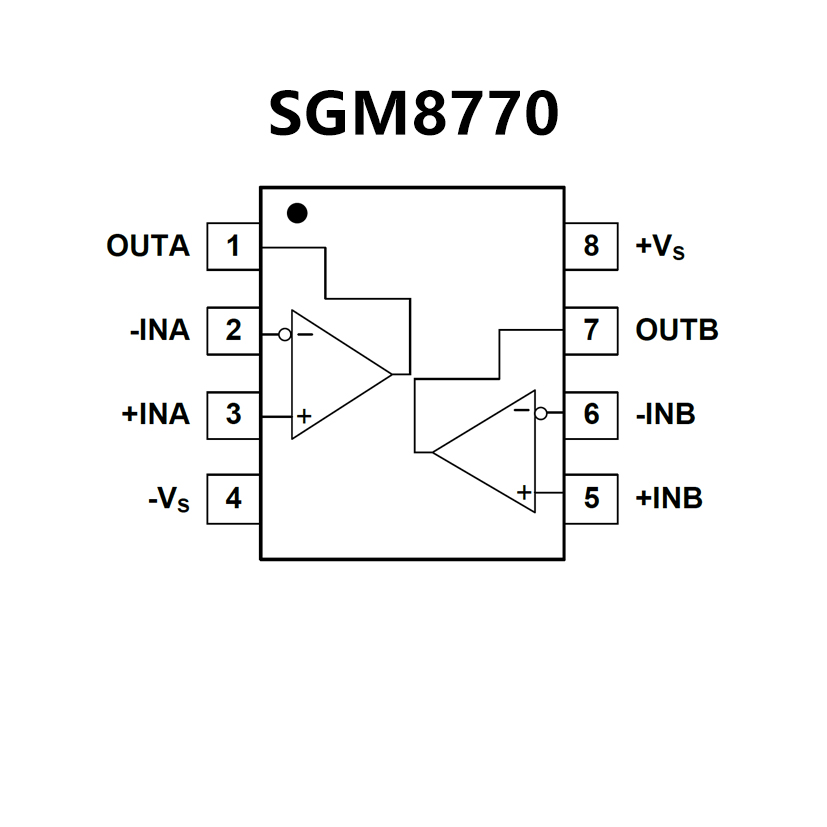

SGM8770XS8G.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Open-Drain Output
• Low Supply Current Independent of Supply Voltage:
310μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage Range Includes
Ground
• Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-3×3-8L
Packages
• Extremely Low Supply Current: 6 µA Typical Per Channel
• Wide Supply Range: 2.7 to 16 V
• Extremely Low Input Bias Current: 1 pA Typical
• Extremely Low Input Offset Current: 1 pA Typical
• Input Common Mode Range Includes VSS
• High Input Impedance: 1012 Ω

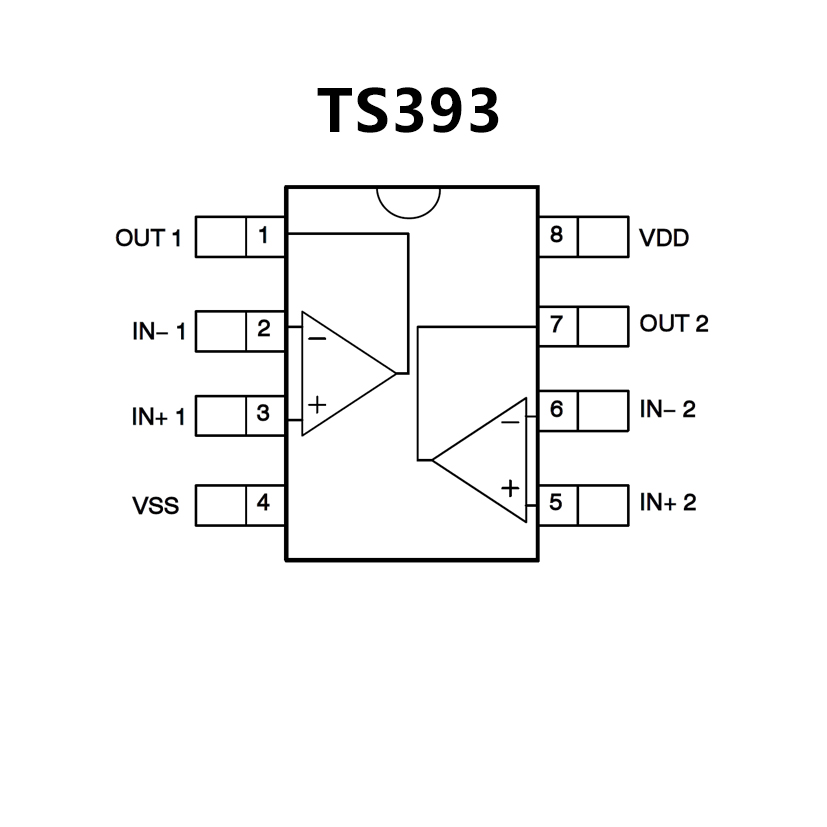

• Pin−to−Pin Compatibility with Dual Bipolar LM393
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS Compliant
