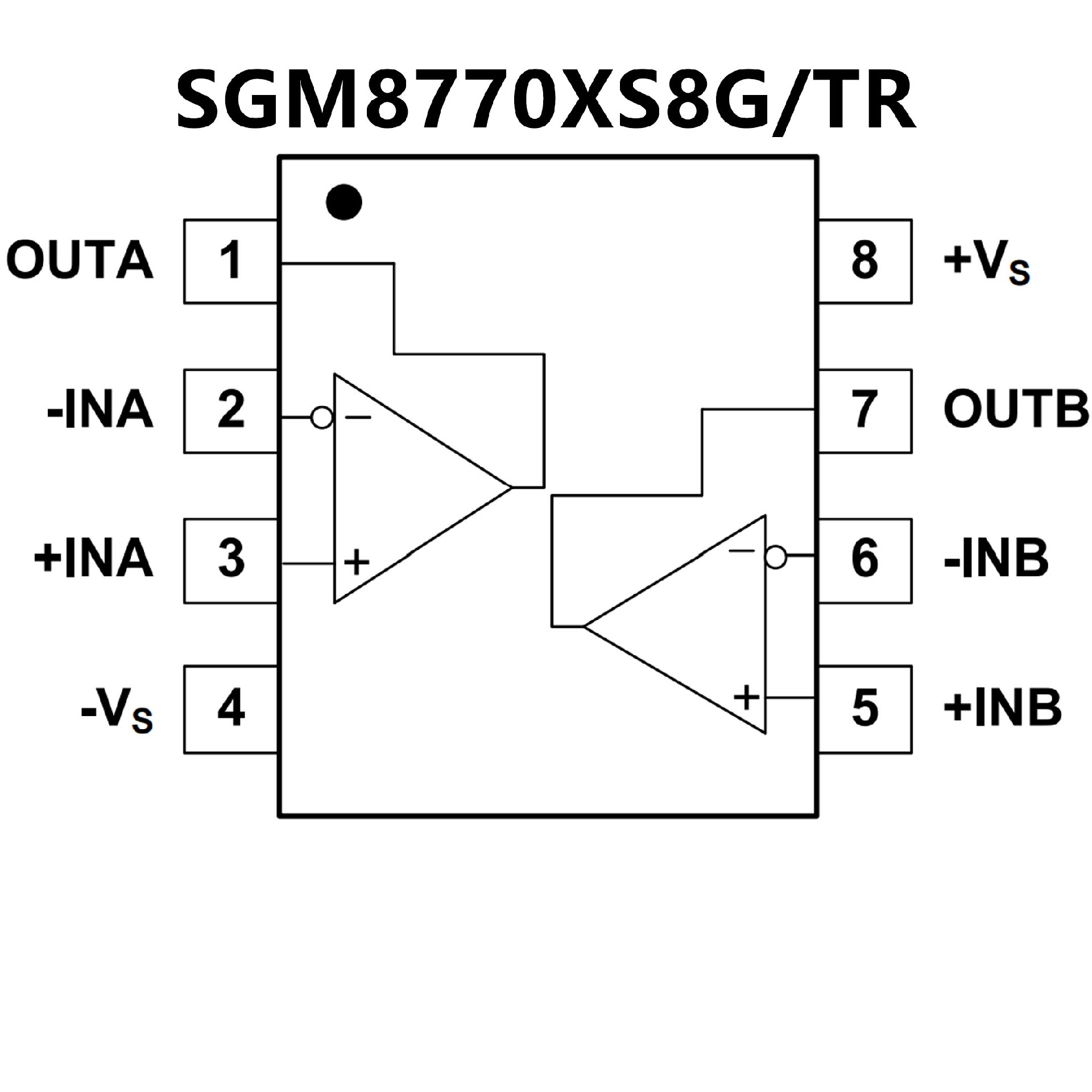

SGM8770XS8GTR.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Open-Drain Output
• Low Supply Current Independent
of Supply Voltage: 310μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage
Range Includes Ground
• Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-3×3-8L Packages
• AEC-Q100 Qualified (Note 1)

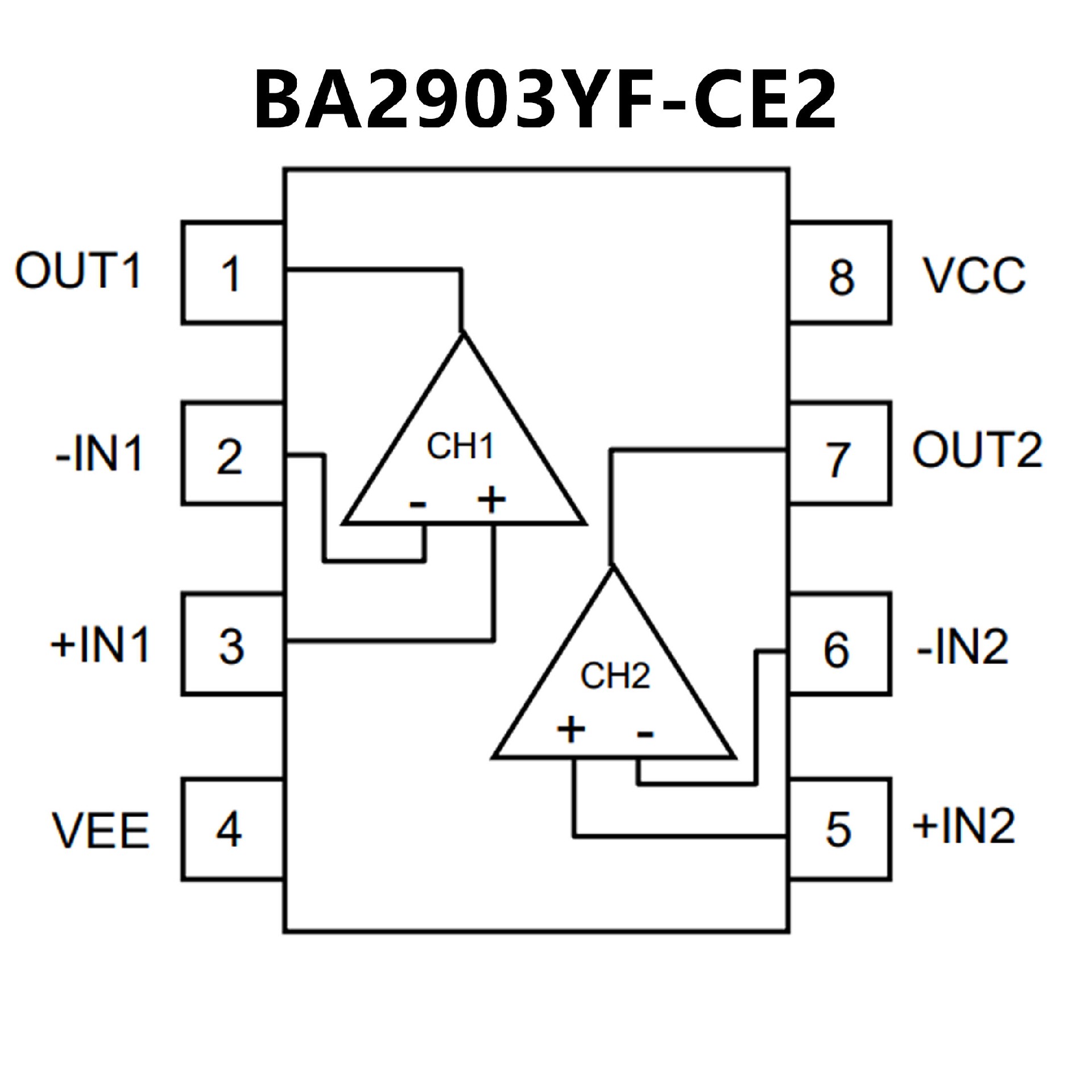

• Single or dual supply operation
• Wide operating supply voltage
• Standard comparator Pin-assignments
• Common-mode Input Voltage Rangeincludes
ground
level, allowing direct ground sensing
• Internal ESD protection circuit
• Wide temperature range
(Note1: Grade1)
