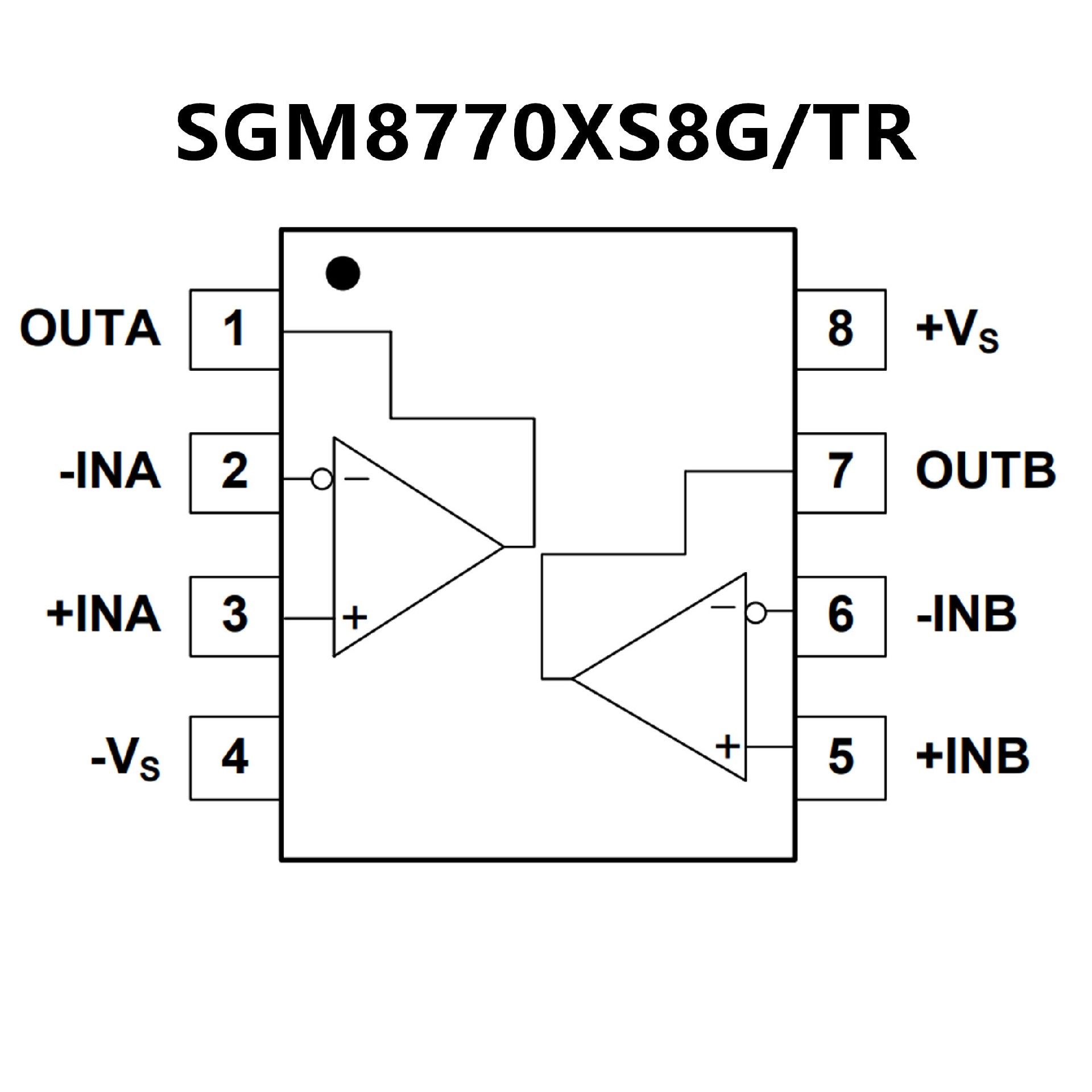

SGM8770.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Open-Drain Output
• Low Supply Current Independent of
Supply Voltage:310μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage
Range IncludesGround
• Differential Input Voltage Range Equal
• toMaximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-3×3-8LPackages

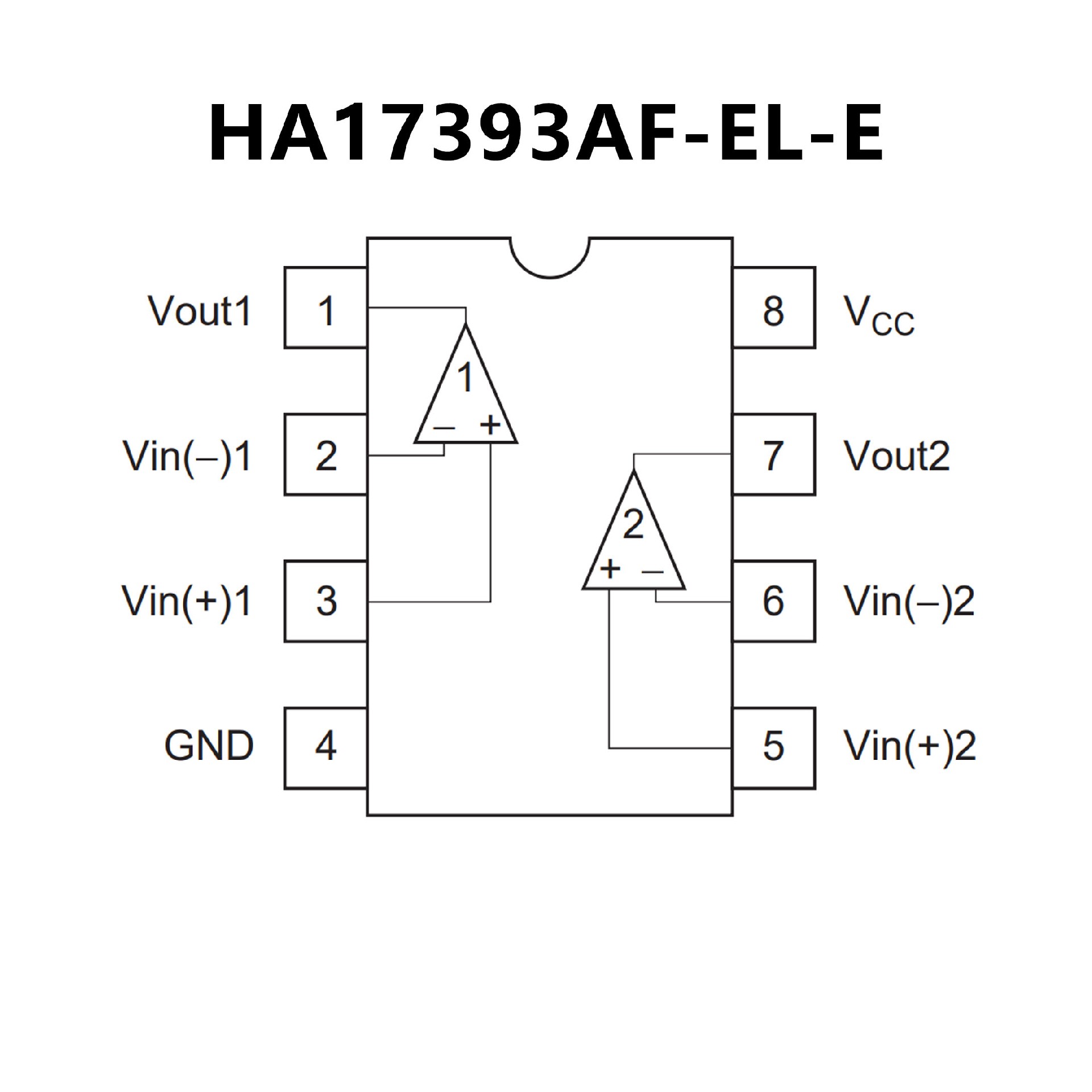

• Wide power-supply voltage range : 2 to 36 V
• Very low supply current : 0.8 mA Typ.
• Low input bias current : 25 nA Typ.
• Low input offset current : 3 nA Typ.
• Low input offset voltage : 2 mV Typ.
• The common-mode input voltage range includes ground
• Output voltages compatible with CMOS logic systems
