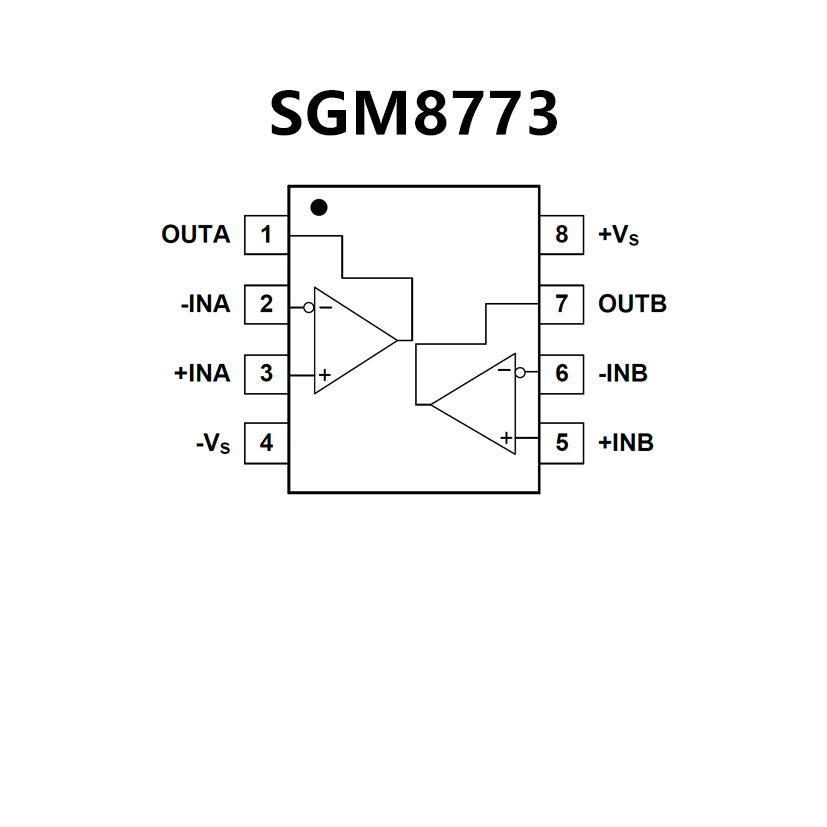

SGM8773XS8G.pdf• Single Supply or Dual Supplies
• Wide Supply Voltage Range: 2.8V to 36V
• Push-Pull Output
• Low Supply Current Independent of Supply Voltage:
330μA (TYP)
• Low Input Offset Voltage: 2.4mV (MAX)
• Low Input Bias Current: ±20pA (TYP)
• Input Common Mode Voltage Range Includes
Ground
• Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
• Low Output Saturation Voltage
• Output Compatible with TTL and CMOS
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-3×3-8L
Packages

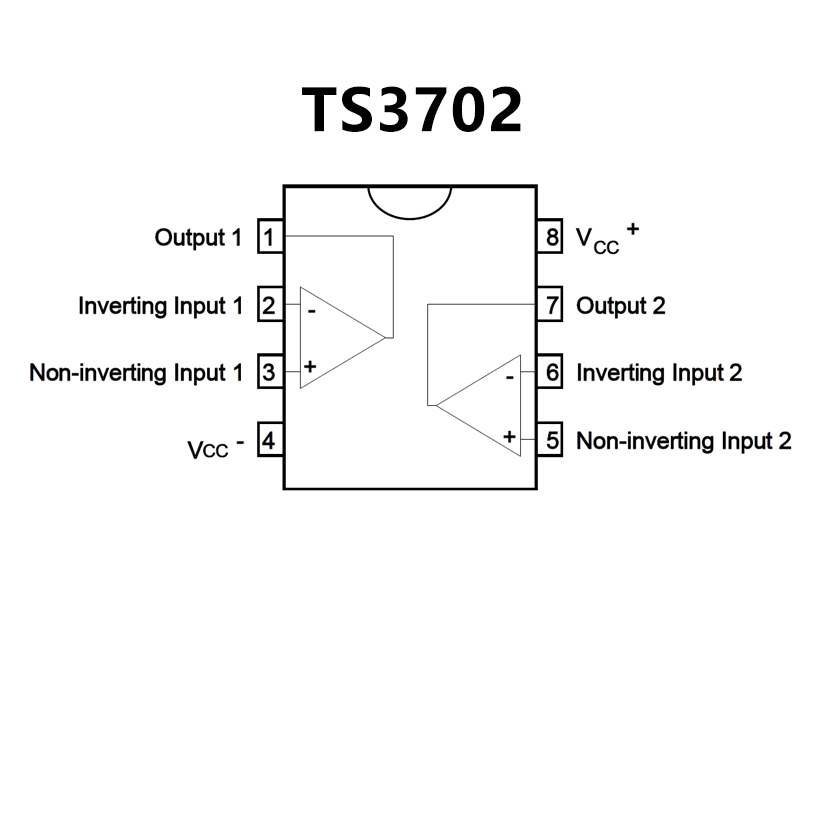

• Push-pull CMOS output (no external pull-up
resistor required)
• Extremely low supply current: 9μA typ /
comparator
• Wide single supply range: 2.7V to 16V or dual
supplies (±1.35V to ±8V)
• Extremely low input bias current: 1pA typ
• Extremely low input offset currents: 1pA typ
• Input common-mode voltage range includes
GND
• High input impedance: 1012Ω typ
• Fast response time: 2μs typ for 5mV overdrive
• Pin-to-pin and functionally compatible with
bipolar LM393
