Capless 3Vrms Line Driver with Adjustable Gain, SGM8903 Replace DRV603.
SGM8903
SGM8903.pdf
SGM8903.pdfFEATURES
• Capless Structure
Eliminates Pop/Clicks
Eliminates Output DC-Blocking CapacitorsProvides
Flat Frequency Response from DC to 20kHz
• Low Noise and THD
Typical SNR = 114dB
Typical VN = 5.5μVrms
Typical THD+N = 0.001% (f = 1kHz)
• 3Vrms Output Voltage into 2.5kΩ
Load with 5VSupply Voltage
• Differential Input
• -40℃ to +85℃ Operating Temperature Range
• Available in the Green TSSOP-14 Package

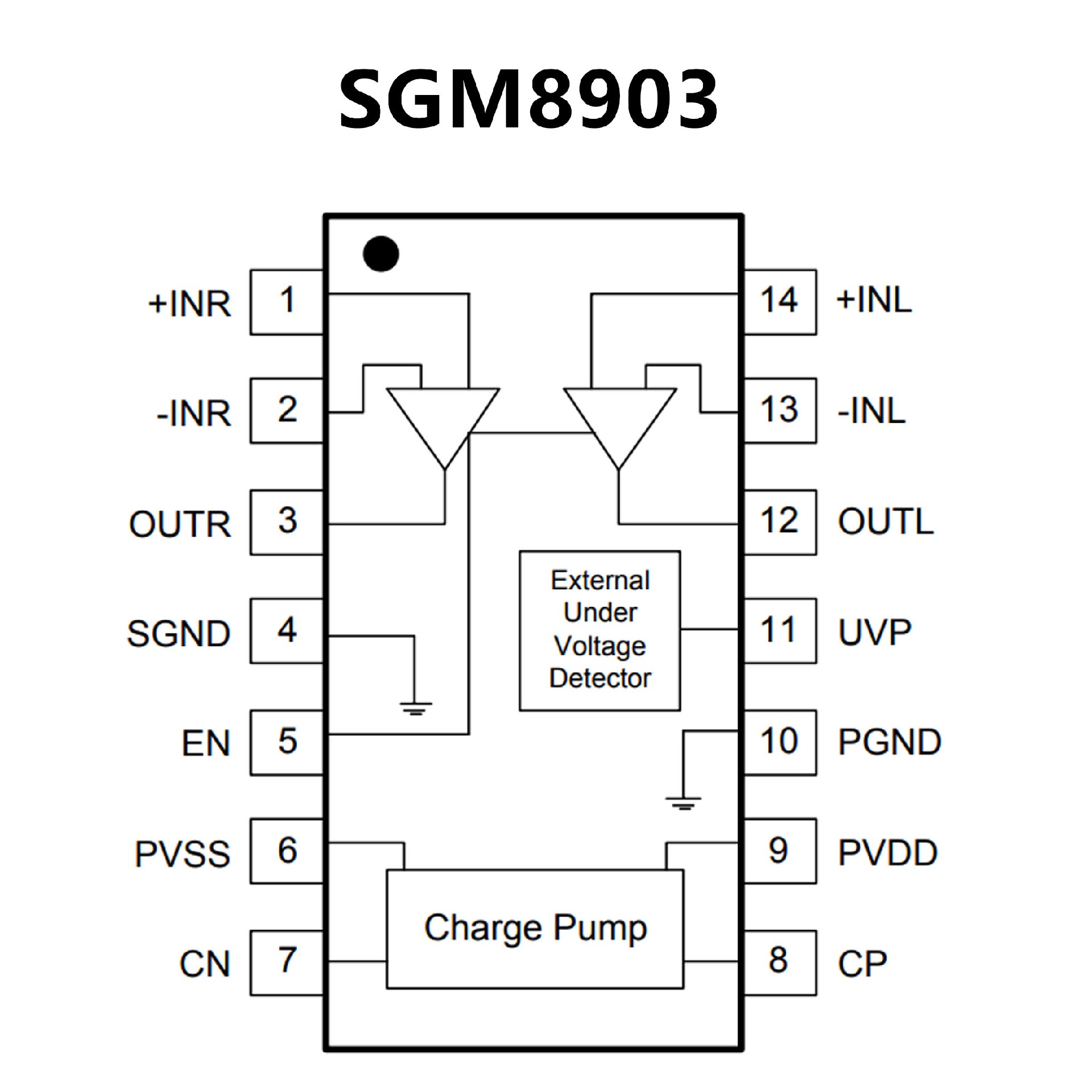

PIN CONFIGUTION
优势替代
FEATURES
• DirectPath™
• Eliminates Pop/Clicks
• Eliminates Output DC-Blocking Capacitors
• Provides Flat Frequency Response 20 Hz–20 kHz
• SNR > 109 dB
• Typical Vn < 7 μVms
• THD+N < 0.002%
• 2 Vrms With 3.3-V Supply Voltage
• 3 Vrms With 5-V Supply Voltage

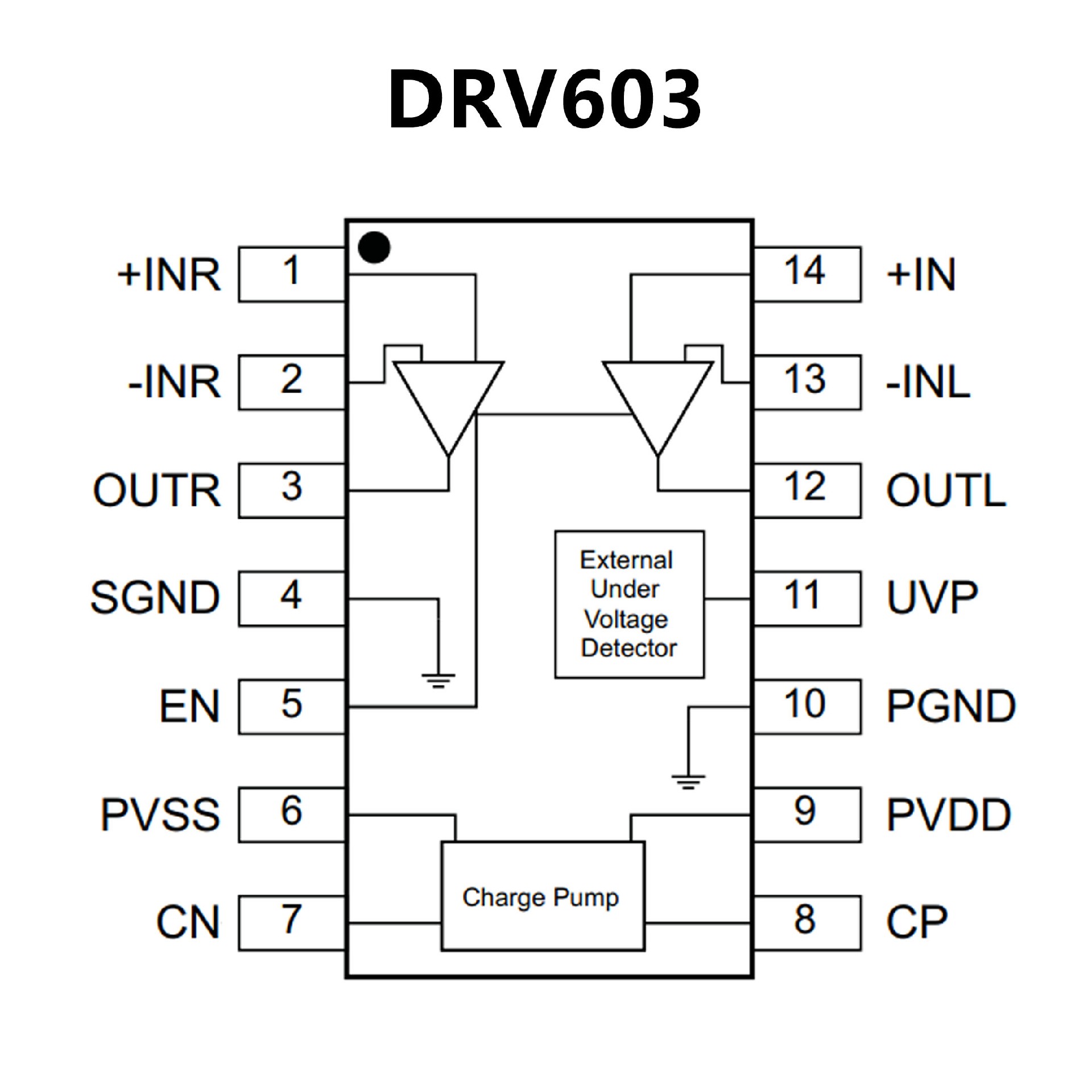

PIN CONFIGUTION
