• Capless Structure to Eliminate Pop-Clicks

  and Output DC-Blocking Capacitors

• 2.8V to 12V Supply Voltage

• Low Noise, Low THD and Low Crosstalk:

  Typical Vn < 6.5μVRMS from 20Hz to 20kHz at Gain = -1

  THD+N < 0.002% for 10kΩ Load and Gain = -1 at 1kHz

  Crosstalk is -89dB at 1kHz

• 4Vrms Output Voltage into 600Ω Load for 10V VDD

• 1Vrms Output Voltage into 600Ω Load for 3.3V VDD

• Supports to Drive 32Ω to 600 Ω Headset:

  10mW for 32Ω Headset at VDD = 3.3V

• Single-Ended Output

• Differential or Single-Ended Input

• UVP Function to Cancel Turn Off Click-Pop Noise

• Adjustable Power-On Blanking Time to Eliminate

  Turn on Click-Pop Noise

• Short-Circuit and Thermal Protection for Audio Driver

• Negative LDO has Output Auto-Discharge

  Function in Disable Status

• 1.8V Logical Control for EN and MUTE

• -40℃ to +85℃ Operating Temperature Range

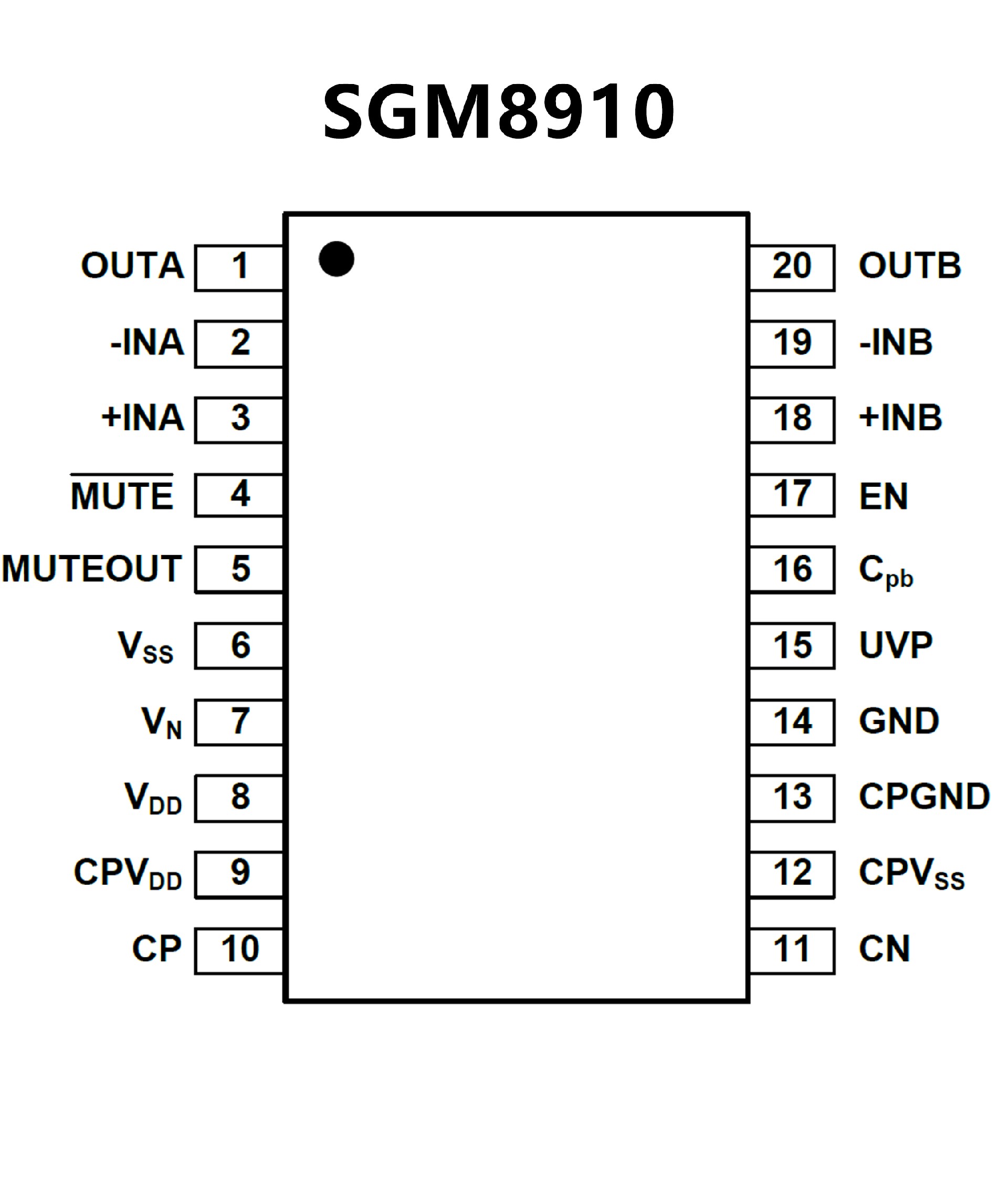

• Available in the Green TSSOP-20 and TQFN-4×4-20L

  Packages
