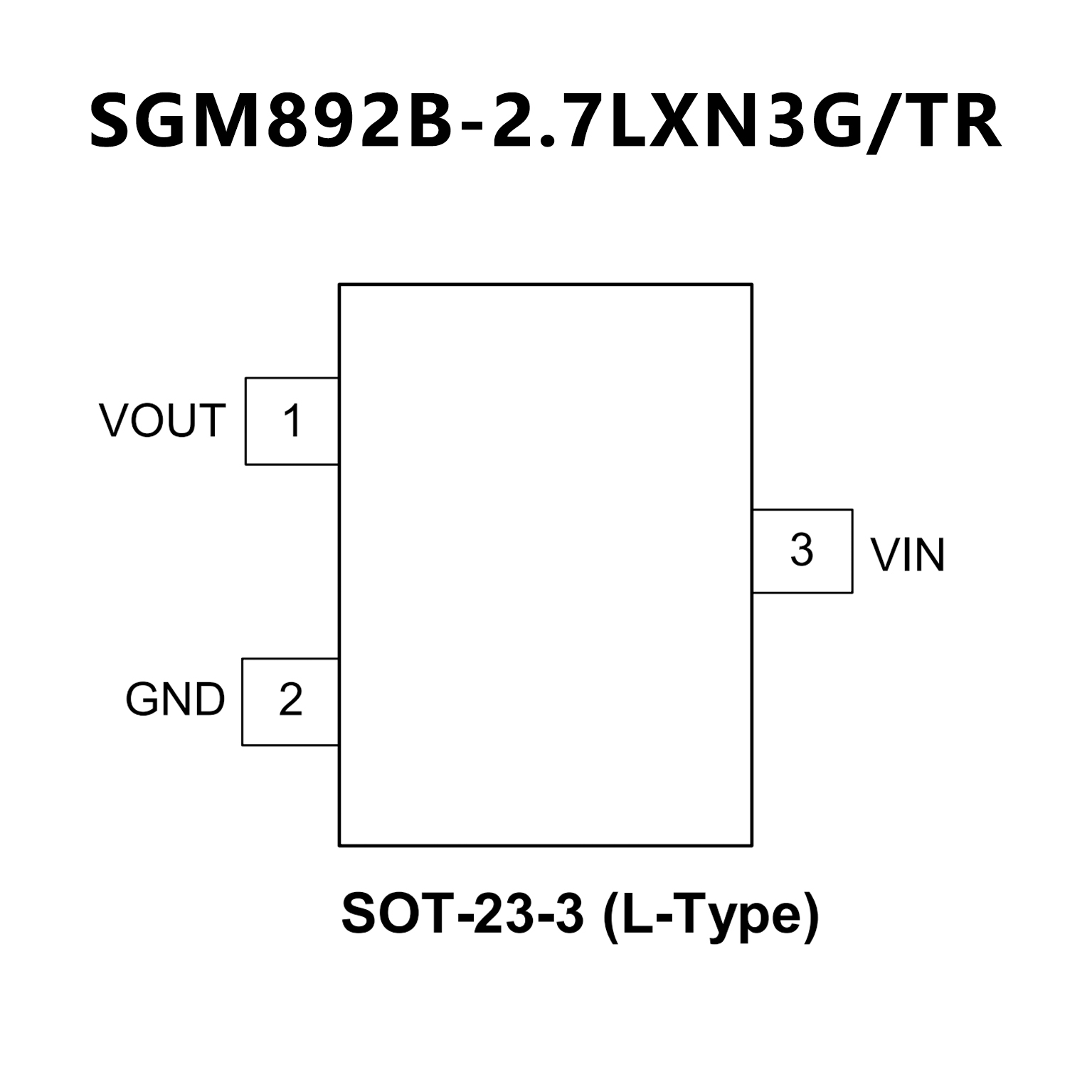

SGM892B-2.7.pdf• High Accuracy Detection: ±1% (TYP)
• Low Power Consumption: 0.4μA (TYP) at VIN = 1V
• Detection Voltage Range: 1V to 5V (0.1V Increments)
• Operating Voltage Range: 1V to 6V
• Detection Voltage Temperature
Coefficient:±40ppm/℃ (TYP)
• Manual-Reset Input (SGM893B Only)
• N-Channel Open-Drain Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM892B Available in Green SOT-23-5, SOT-23-3a
nd UTDFN-1×1-4L Packages
SGM893B Available in Green SOT-23-5
andUTDFN-1×1-4L Packages

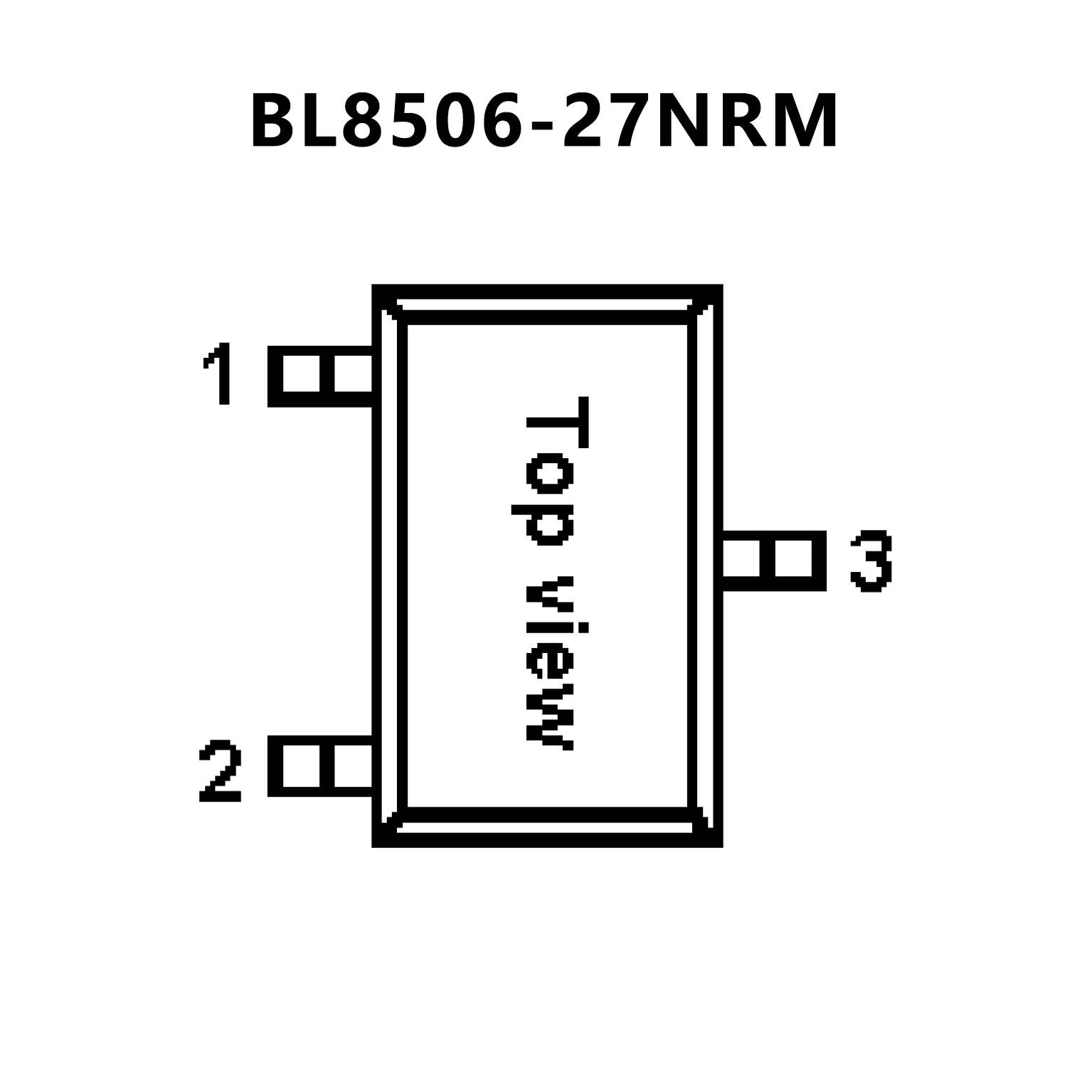

• High-precision detection Voltage:±2%
• Detection Voltage：0.9V~6.0V (in 0.1Vsteps)
• Precise hysteresis：4% typ.
• Operating Voltage range：0.7V~10V
• Ultra-low current consumption：
500nAtyp. (at VDD＝3.0V)
• Two Output Forms ：CMOS(Active Low)
and N-channel open-drain(Active Low)
