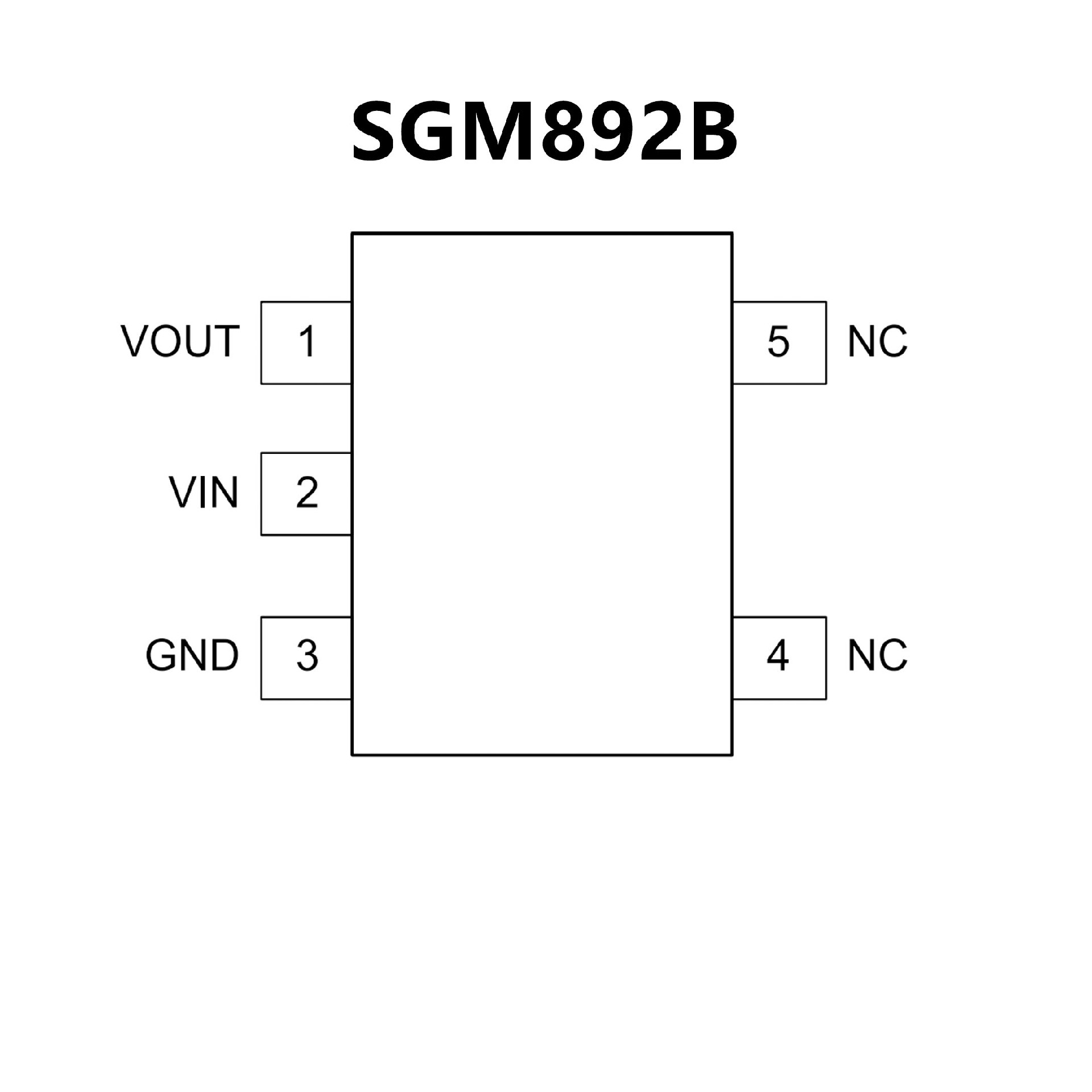

SGM892B.pdf• High Accuracy Detection: ±1% (TYP)
• Low Power Consumption: 0.4μA (TYP) at VIN = 1V
• Detection Voltage Range: 1V to 5V (0.1V Increments)
• Operating Voltage Range: 1V to 6V
• Detection Voltage Temperature Coefficient:
±40ppm/℃ (TYP)
• Manual-Reset Input (SGM893B Only)
• N-Channel Open-Drain Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM892B Available in Green SOT-23-5,
SOT-23-3 and UTDFN-1×1-4L Packages
SGM893B Available in Green
SOT-23-5 and UTDFN-1×1-4L Packages

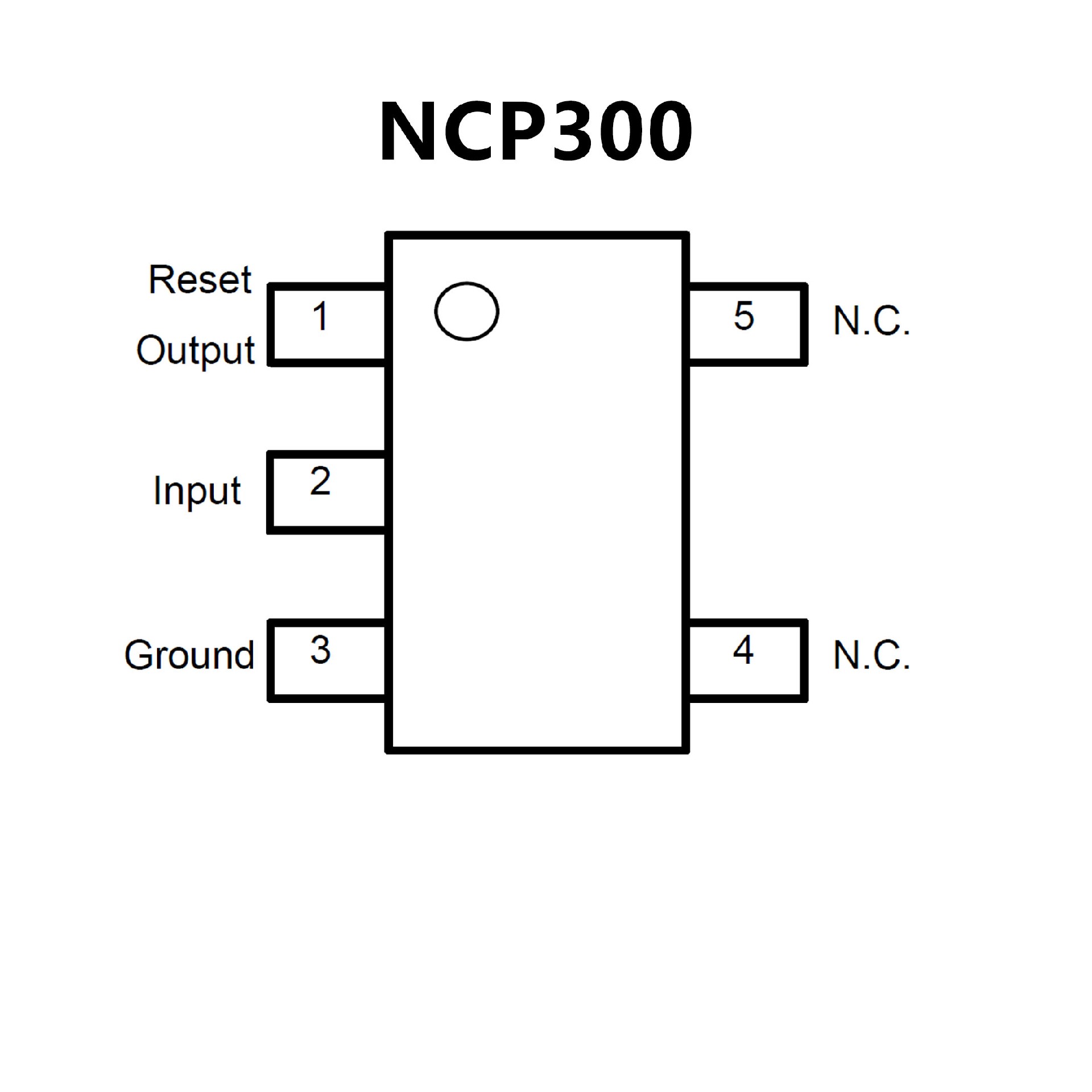

• Quiescent Current of 0.5µA Typical
• High Accuracy Undervoltage Threshold of 2.0%
• Wide Operating Voltage Range of 0.8 V to 10 V
• Complementary or Open Drain Reset Output
• Active Low or Active High Reset Output
• Specified Over the −40°C to +125°C Temperature Range
(Except for Voltage Options from 0.9 to 1.1 V)
• NCV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change
Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
