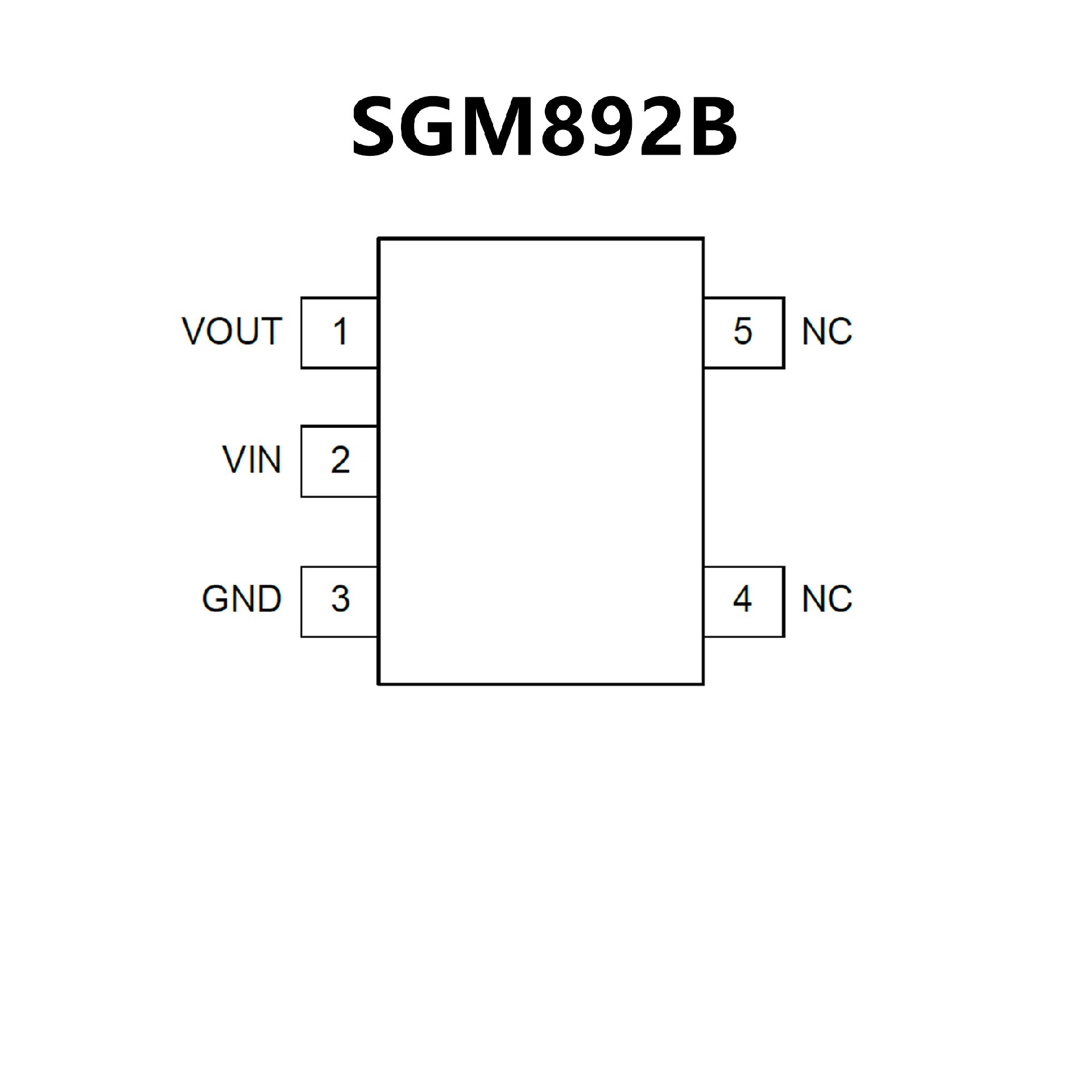

SGM892B-4.5XN5G.pdf• High Accuracy Detection: ±1% (TYP)
• Low Power Consumption: 0.4μA (TYP) at VIN = 1V
• Detection Voltage Range: 1V to 5V (0.1V Increments)
• Operating Voltage Range: 1V to 6V
• Detection Voltage Temperature
Coefficient:±40ppm/℃ (TYP)
• Manual-Reset Input (SGM893B Only)
• N-Channel Open-Drain Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM892B Available in Green SOT-23-5,
SOT-23-3and UTDFN-1×1-4L Packages
SGM893B Available in Green SOT-23-5
andUTDFN-1×1-4L Packages

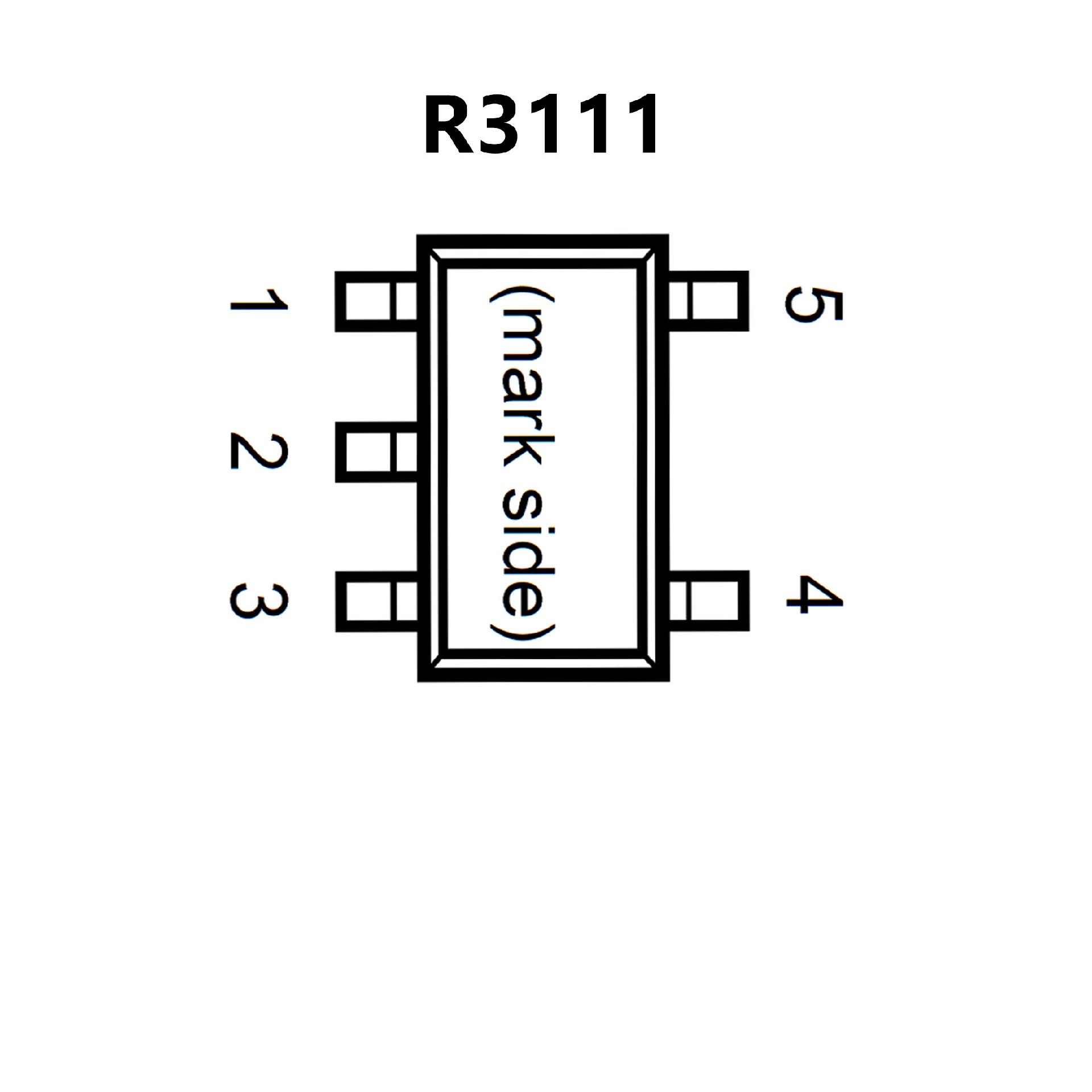

• Ultra-low Supply Current TYP. 0.8μA (VDD=1.5V)
• Wide Range of Operating Voltage 0.7 to 10.0V(Topt=25°C)
• Detector Threshold Stepwise setting
with a step of 0.1V in the range of
0.9V to 6.0V is possible.
• High Accuracy Detector Threshold ±2.0%
• Low Temperature-Drift Coefficient of Detector
Threshold TYP. ±100ppm/°C
• Two Output Types Nch Open Drain and CMOS
• Four Types of Packages TO-92, SOT-89(Mini-power Mold),
SOT-23-5 (Minimold),SC-82AB
