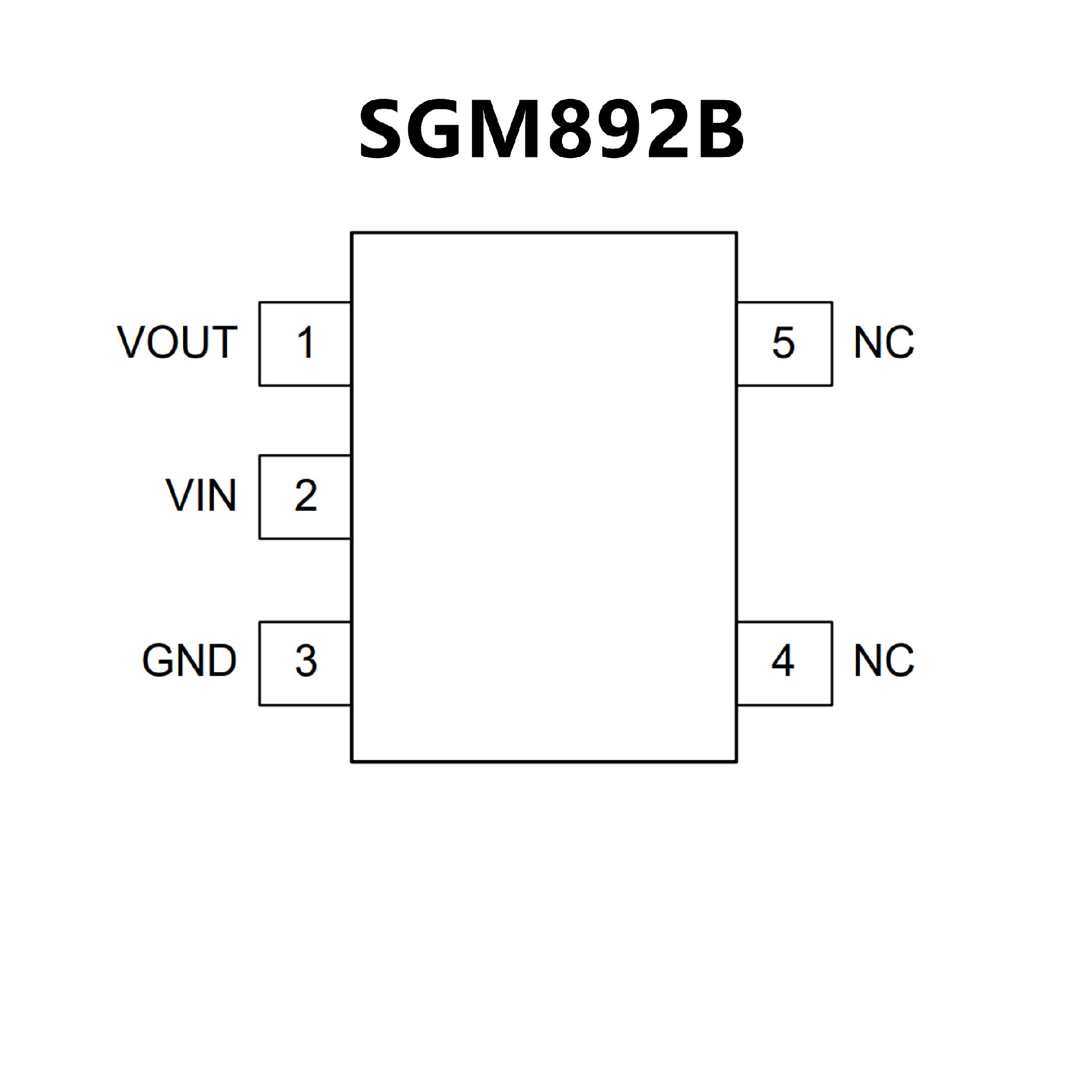

SGM892B.pdf• High Accuracy Detection: ±1% (TYP)
• Low Power Consumption: 0.4μA (TYP) at VIN = 1V
• Detection Voltage Range: 1V to 5V (0.1V Increments)
• Operating Voltage Range: 1V to 6V
• Detection Voltage Temperature Coefficient:±40ppm/℃ (TYP)
• Manual-Reset Input (SGM893B Only)
• N-Channel Open-Drain Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM892B Available in Green SOT-23-5,
SOT-23-3and UTDFN-1×1-4L Packages
SGM893B Available in Green SOT-23-5
andUTDFN-1×1-4L Packages

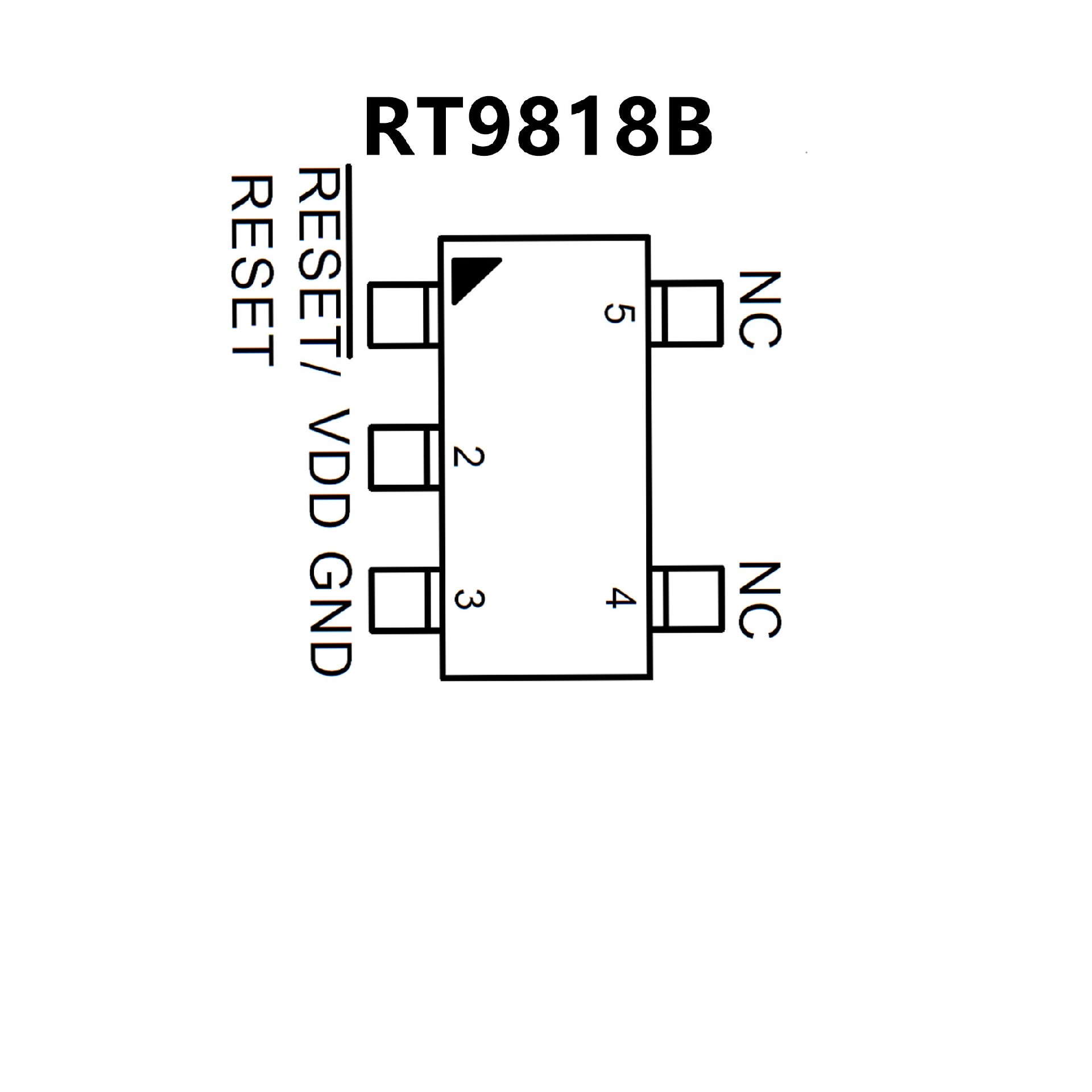

• Internally Fixed Threshold 1.2V to 5V in 0.1V Step
• High Accuracy ±1.5%
• Low Supply Current 3μA
• No External Components Required
• Quick Reset within 20μs
• Built-In Recovery Delay Include 0ms, 55ms, 220ms,
450ms Options
• Low Functional Supply Voltage 0.9V
• N-Channel Open-Drain Output
• Small SC-82, SC-70-3, SOT-23-3, SOT-23-5, SOT-89
Packages
• RoHS Compliant and 100% Lead (Pb)-Free
