High precision Operational Amplifier ,Replace LMV821
SGM8931
SGM8931.pdf
SGM8931.pdfFEATURES
• Rail-to-Rail Output
• Low Noise: 30nV/ Hz
• Low Distortion
• Supply Voltage Range: 1.8V to 5.5V
• Low Input Offset Voltage: 0.9mV (MAX)
• Gain Bandwidth Product: 1.5MHz
• Slew Rate: 0.8V/μs
• Low Supply Current
80μA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8933
• Small Packaging: SOT-23-5, SC70-5, SOIC-8 and MSOP-8

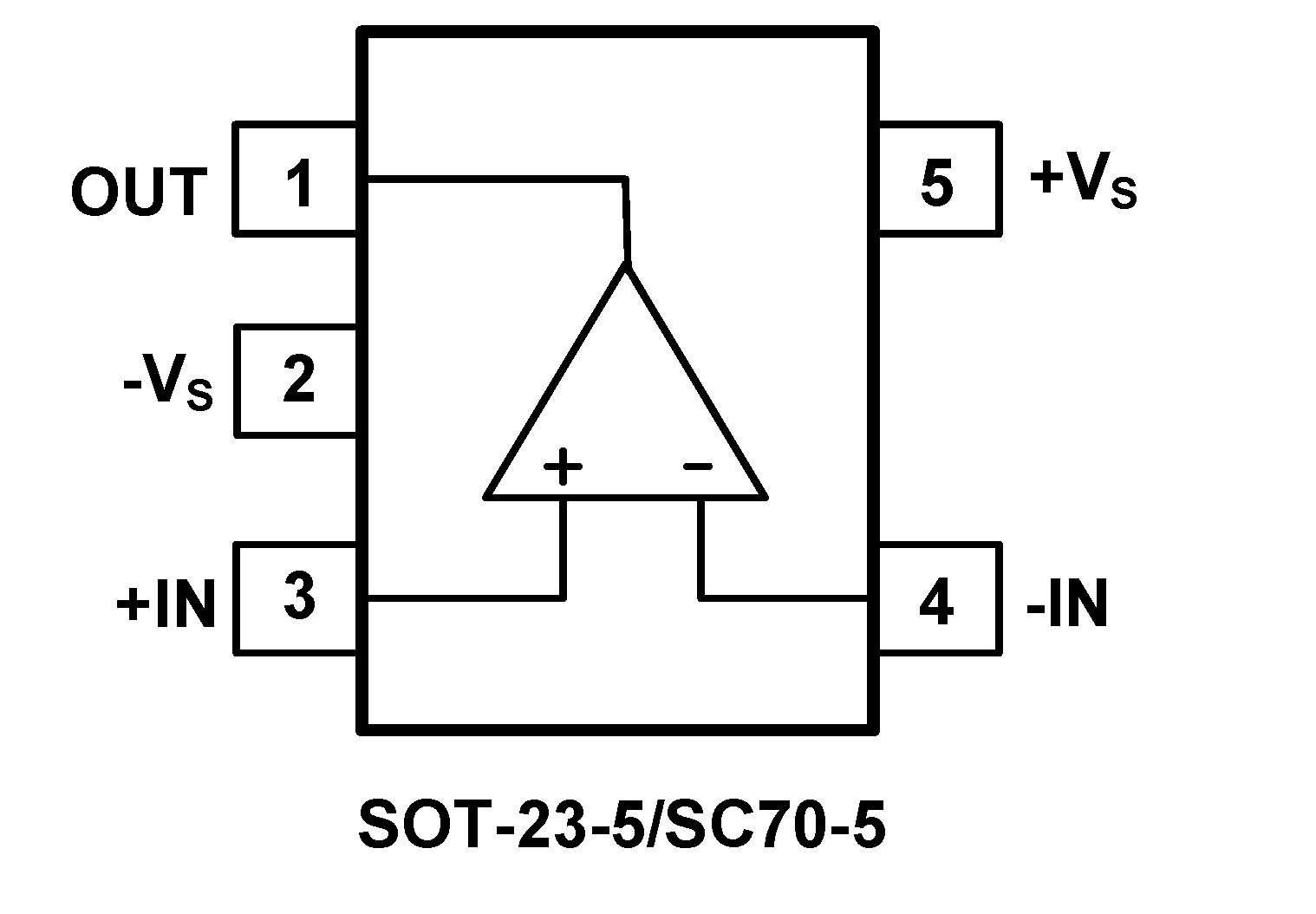

PIN CONFIGUTION
优势替代
FEATURES
• Guaranteed 2.5 V, 2.7 V and 5 V Performance
• Maximum VOS 3.5 mV (Guaranteed)
• VOS Temp. Drift 1 uV/° C
• GBW product @ 2.7 V 5 MHz
• ISupply @ 2.7 V 220 μA/Amplifier
• Minimum SR 1.4 V/us (Guaranteed)
• CMRR 90 dB
• PSRR 85 dB
• Rail-to-Rail (R-to-R) Output Swing
• VCM @ 5 V -0.3 V to 4.3 V
• Stable with High Capacitive Loads

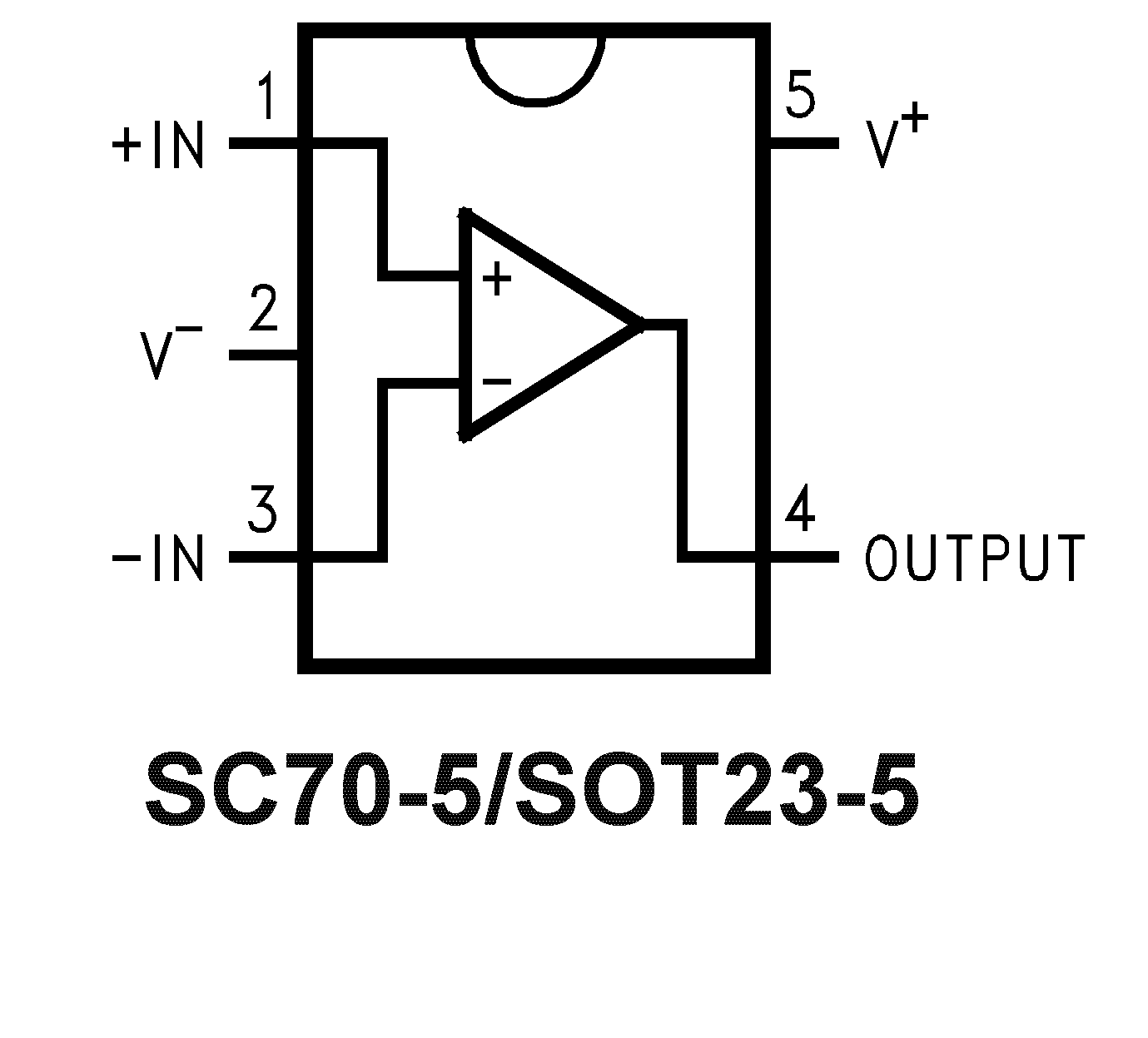

PIN CONFIGUTION
