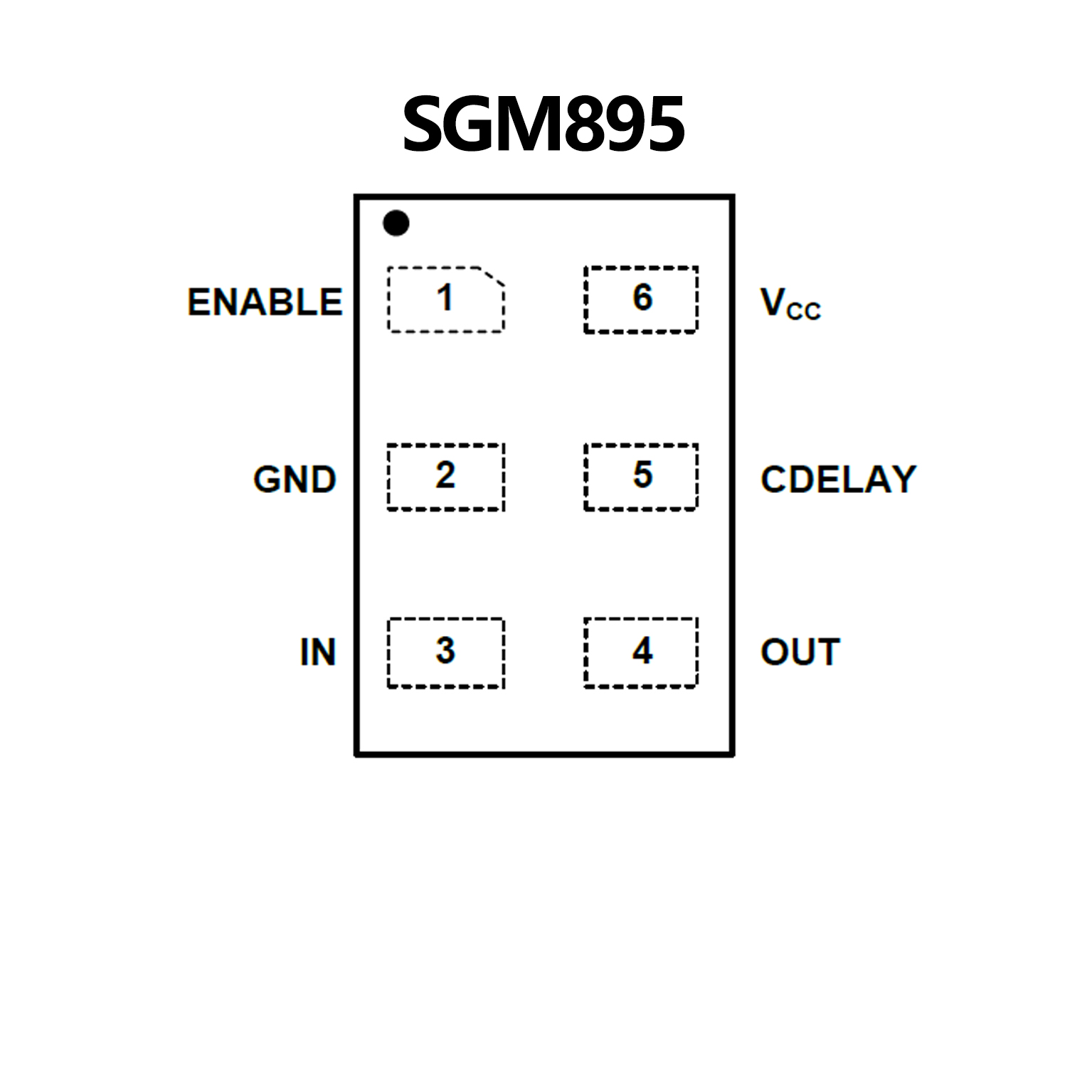

SGM895.pdf• High Voltage Threshold Accuracy:
• +25℃: ±1%
• -40℃ to +125℃: ±1.6%
• Low Power Consumption: 2.1μA (TYP)
• Operating Supply Voltage Range: 1.6V to 5.5V
• Capacitor-Adjustable Delay
• Active-High/Active-Low Enable Input Options
• Active-High/Active-Low Output Options
• Open-Drain (28V Tolerant)/Push-Pull Output Options
• Available in Ultra-Small Green
UTDFN-1.45×1-6ALand TSOT-23-6 Packages
• 1.8% Accurate Adjustable
Threshold Over Temperature
• Operate from VCC of 1.5V to 5.5V
• Capacitor-Adjustable Delay
• Active-High/-Low Enable Input Options
• Active-High/-Low Output Options
• Open-Drain (28V Tolerant)/Push-Pull
Output Options
• Low Supply Current (10µA, typ)
• Fully Specified from -40°C to +125°C
• Ultra-Small 6-Pin µDFN Package or Thin SOT23 Package

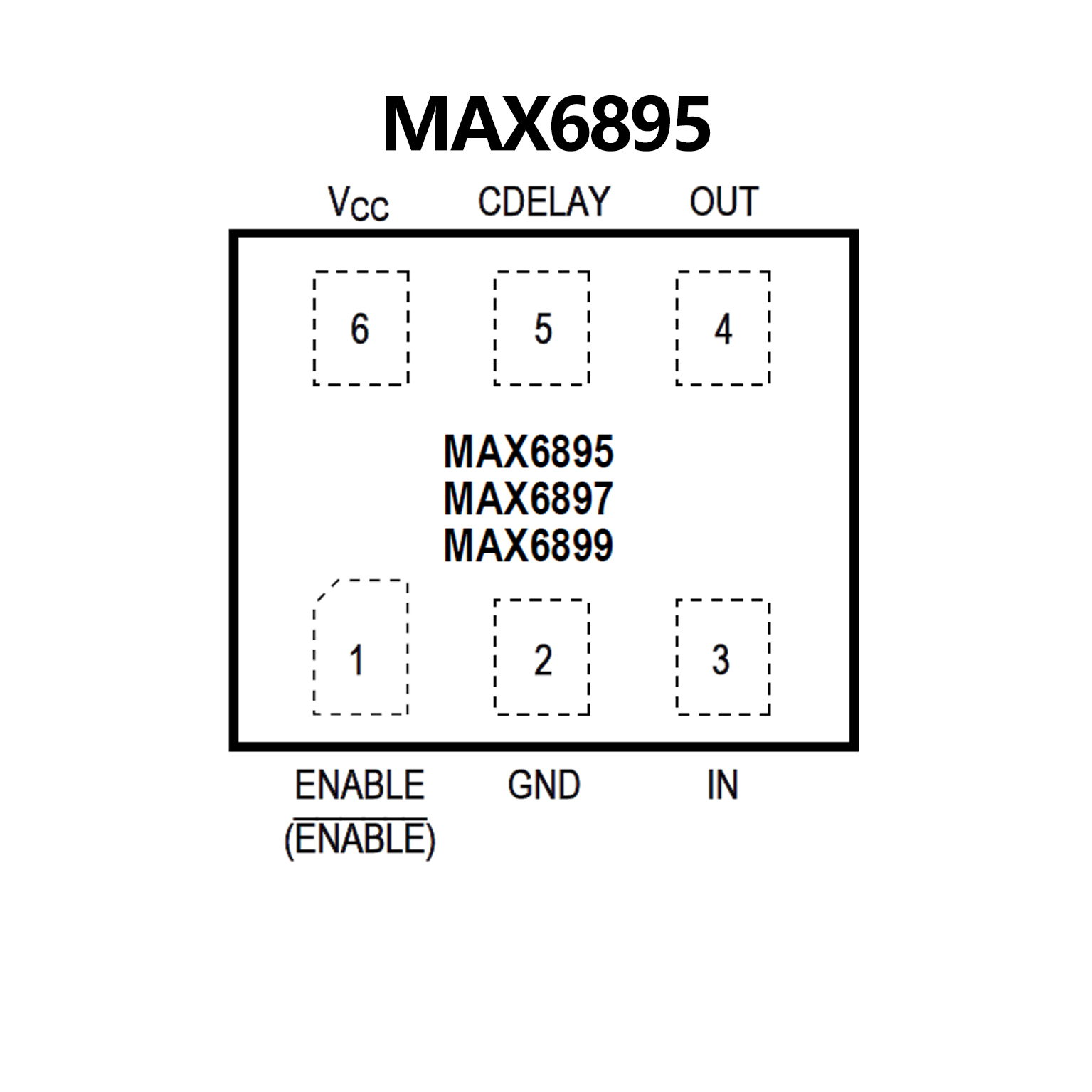

• AEC-Q100 Qualified (MAX6896AAZT/V+,
MAX6895AAZT/V+T, MAX6897AAZT/V+ Only)
