Ultra Small, Supervisory Circuits with Adjustable Sequencing, SGM895 Replace TPS3897.
SGM895
SGM895.pdf
SGM895.pdfFEATURES
• High Voltage Threshold Accuracy:
+25℃: ±1%
-40℃ to +125℃: ±1.6%
• Low Power Consumption: 2.1μA (TYP)
• Operating Supply Voltage Range: 1.6V to 5.5V
• Capacitor-Adjustable Delay
• Active-High/Active-Low Enable Input Options
• Active-High/Active-Low Output Options
• Open-Drain (28V Tolerant)/Push-Pull Output Options
• Available in Ultra-Small Green UTDFN-1.45×1-
6ALand TSOT-23-6 Packages
PIN CONFIGUTION
优势替代
FEATURES
• Very Small USON (1.45 mm × 1.00 mm) Package
• Adjustable Threshold Down to 500 mV
• Threshold Accuracy: 1% Over Temperature
• Capacitor-Adjustable Delay Time
• Low Quiescent Current: 6 µA (Typical)
• External Enable Input
• Open-Drain (Rated at 18 V) and Push-Pull Output Options
• Temperature Range: –40°C to 125°C
• Pin-for-Pin Compatible With MAX6895/6/7/8

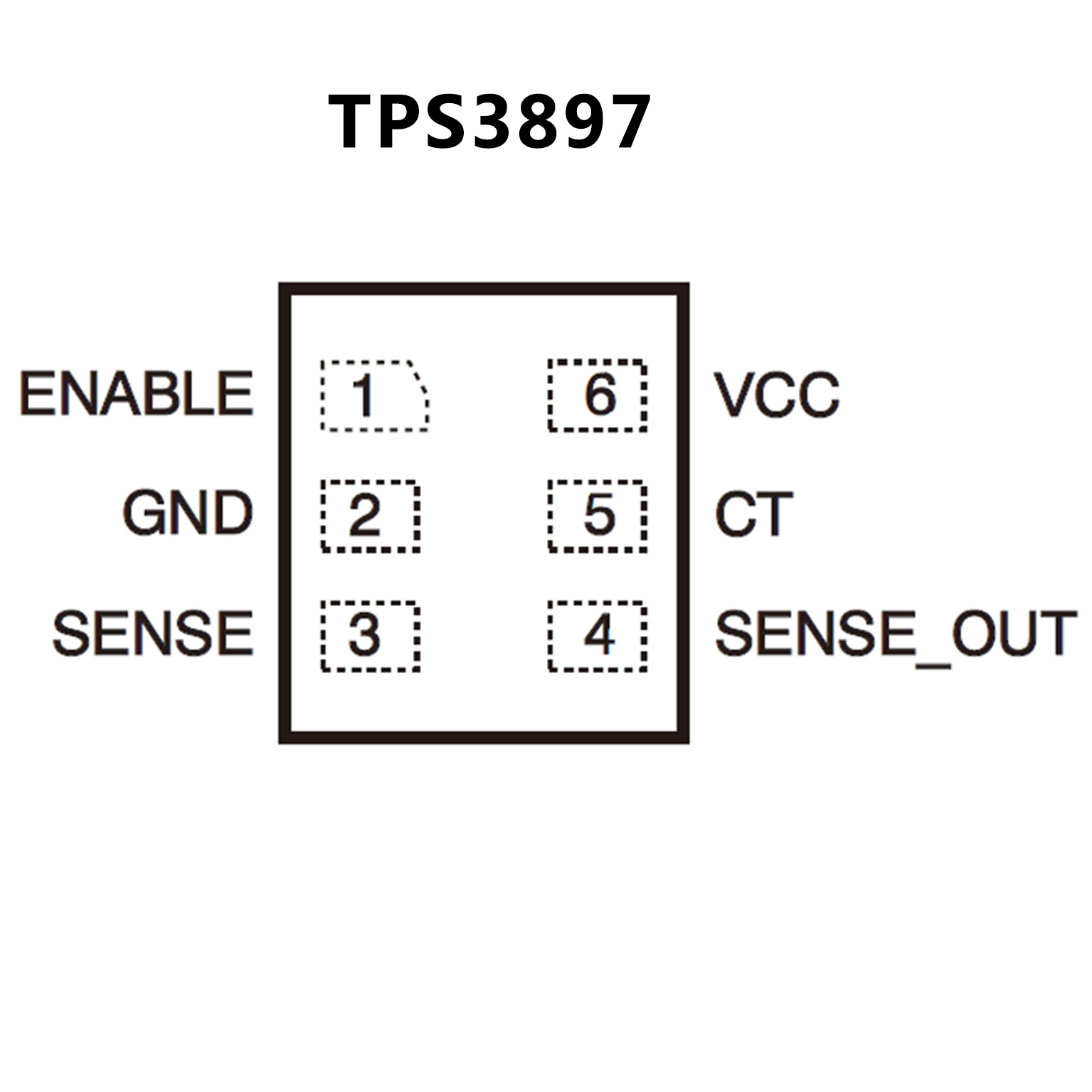

PIN CONFIGUTION
