110kHz, Rail-to-Rail Input and Output Operational Amplifiers, SGM8952 Replace AD8602.
SGM8952
SGM8952.pdf
SGM8952.pdfFEATURES
• Rail-to-Rail Input and Output
• Supply Voltage Range: 1.8V to 5.5V
• Low Input Offset Voltage: 0.2mV (TYP)
• Gain-Bandwidth Product: 110kHz
• Low Supply Current:
SGM8951 26μA (TYP)
SGM8952 34μA (TYP)
• -40℃ to +85℃ Operating Temperature Range
• Small Packaging:
SGM8951 Available in SOT-23-5 and SOIC-8Packages
SGM8952 Available in MSOP-8 and SOIC-8 Packages

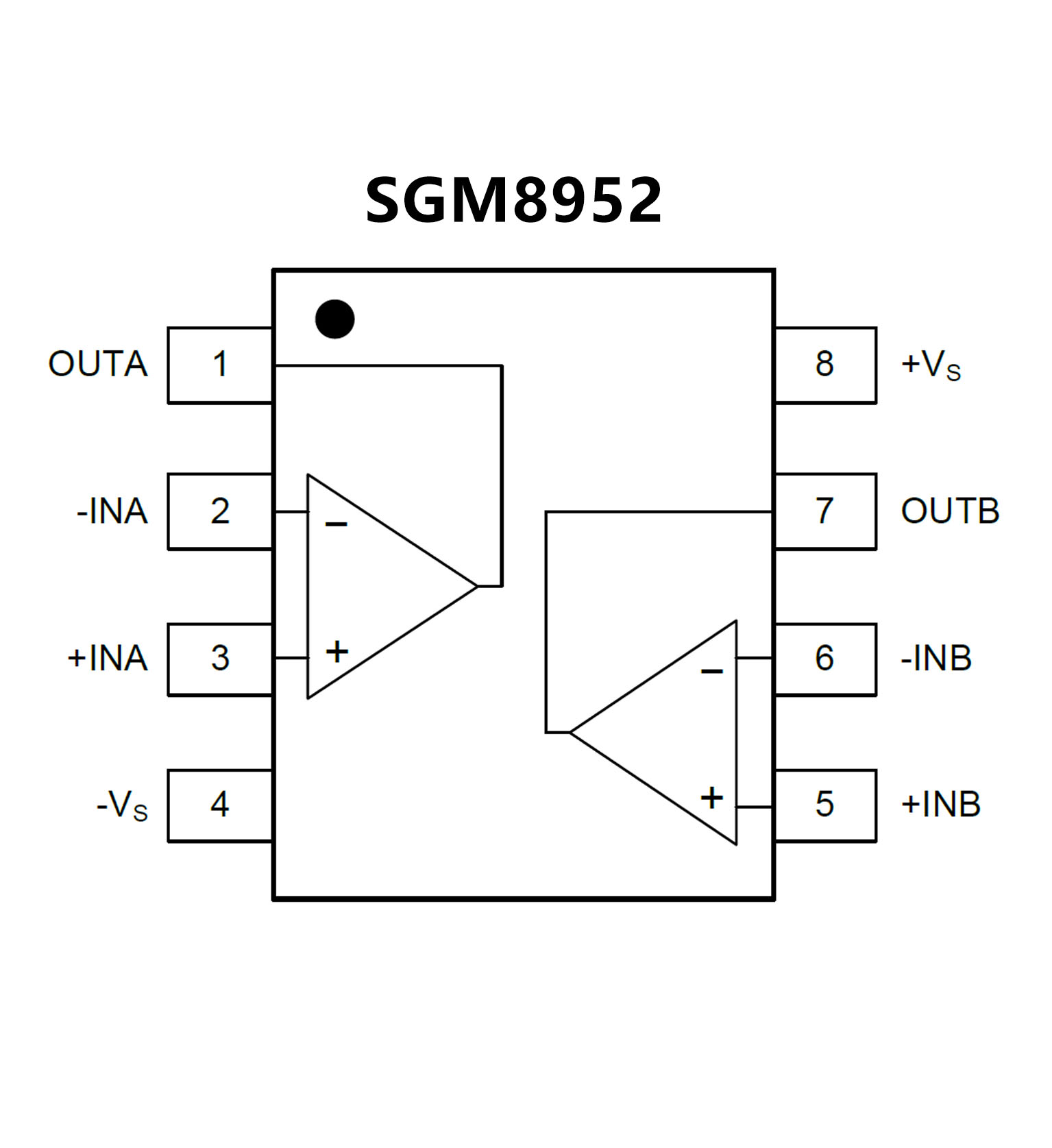

PIN CONFIGUTION
优势替代
FEATURES
• Low offset voltage: 500 µV maximum
• Single-supply operation: 2.7 V to 5.5 V
• Low supply current: 750 µA/Amplifier
• Wide bandwidth: 8 MHz
• Slew rate: 5 V/µs
• Low distortion
• No phase reversal
• Low input currents
• Unity-gain stable
• Qualified for automotive applications

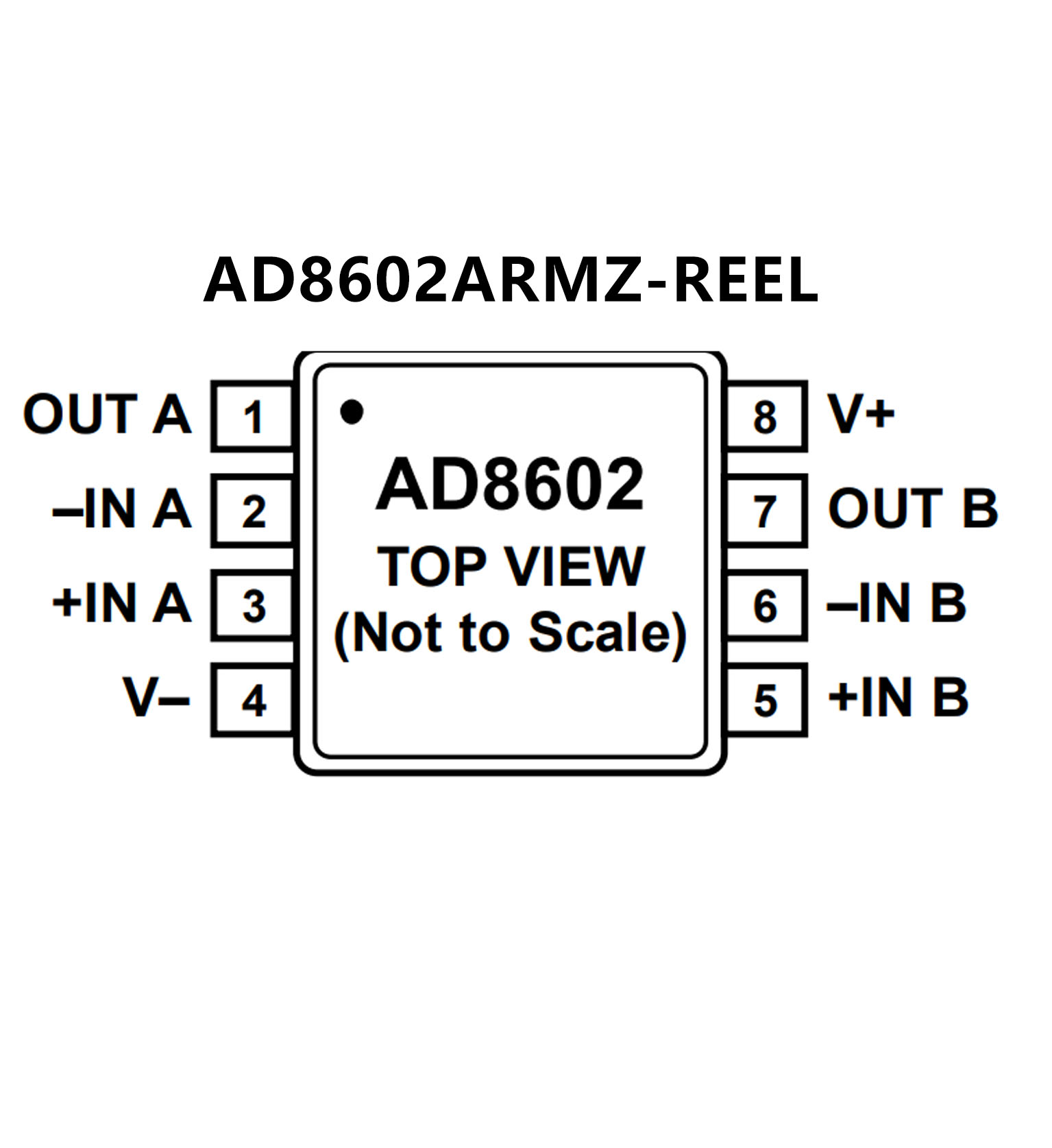

PIN CONFIGUTION
