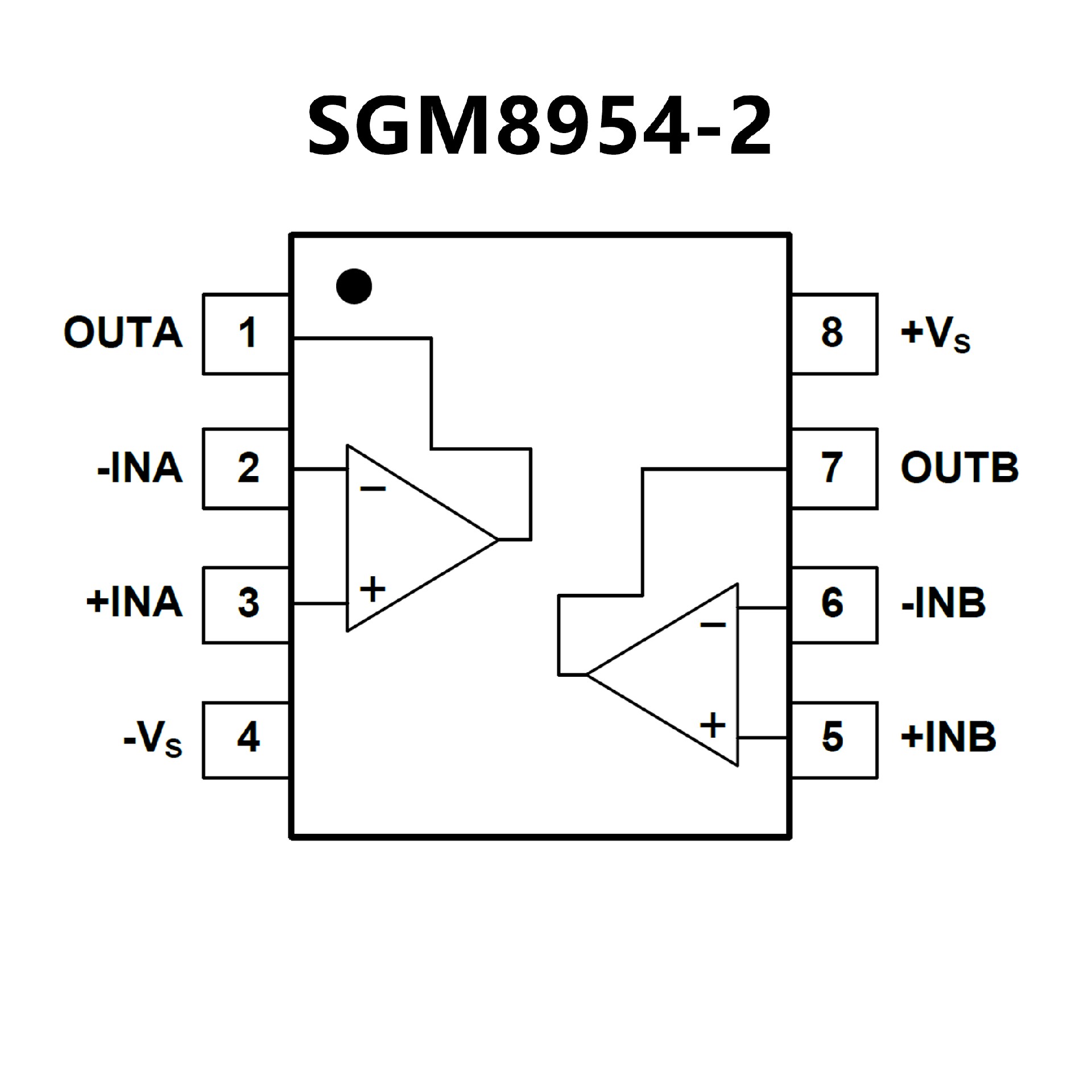

SGM8954-2.pdf• Quiescent Current: 9μA/Amplifier (TYP)
• Low Offset Voltage: 8μV (TYP), 35μV (MAX)
• Low 0.1Hz to 10Hz Noise: 1μVP-P
• Gain-Bandwidth Product: 110kHz
• Unity-Gain Stable
• Integrated RFI Filter
• Single or Dual Supply Operation
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input and Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8954-1 Available in Green SOT-23-5, SOIC-8
and UTDFN-1.6×1.6-6L Packages
SGM8954-2 Available in Green SOIC-8, MSOP-8
and TDFN-2×2-8L Packages

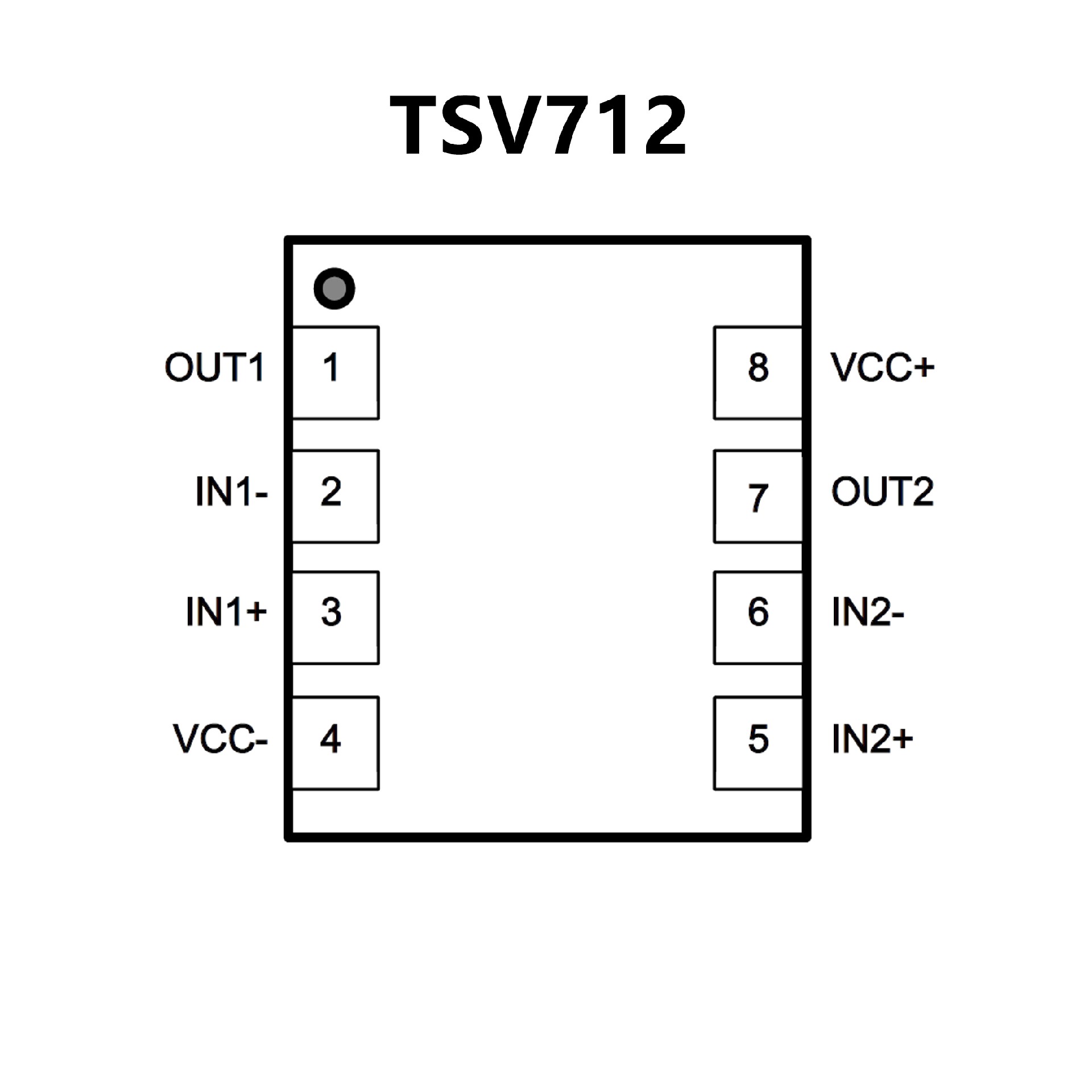

• Low offset voltage: 200 μV max.
• Low power consumption: 10 μA at 5 V
• Low supply voltage: 1.5 V to 5.5 V
• Gain bandwidth product: 150 kHz typ.
• Low input bias current: 1 pA typ.
• Rail-to-rail input and output
• EMI hardened operational amplifiers
• High tolerance to ESD: 4 kV HBM
• Extended temperature range: -40 to +125 °C
