High precision Operational Amplifier,SGM8955 Replace MCP616.
SGM8955
SGM8955.pdf
SGM8955.pdfFEATURES
• Low Offset Voltage: 50μV (MAX)
• Low 0.1Hz to 10Hz Noise: 2μVP-P
• Quiescent Current: 20μA/Amplifier (TYP)
• Integrated RFI Filter
• Single-Supply Operation
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input and Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8955 Available in Green SOT-23-5, SC70-5 and SOIC-8

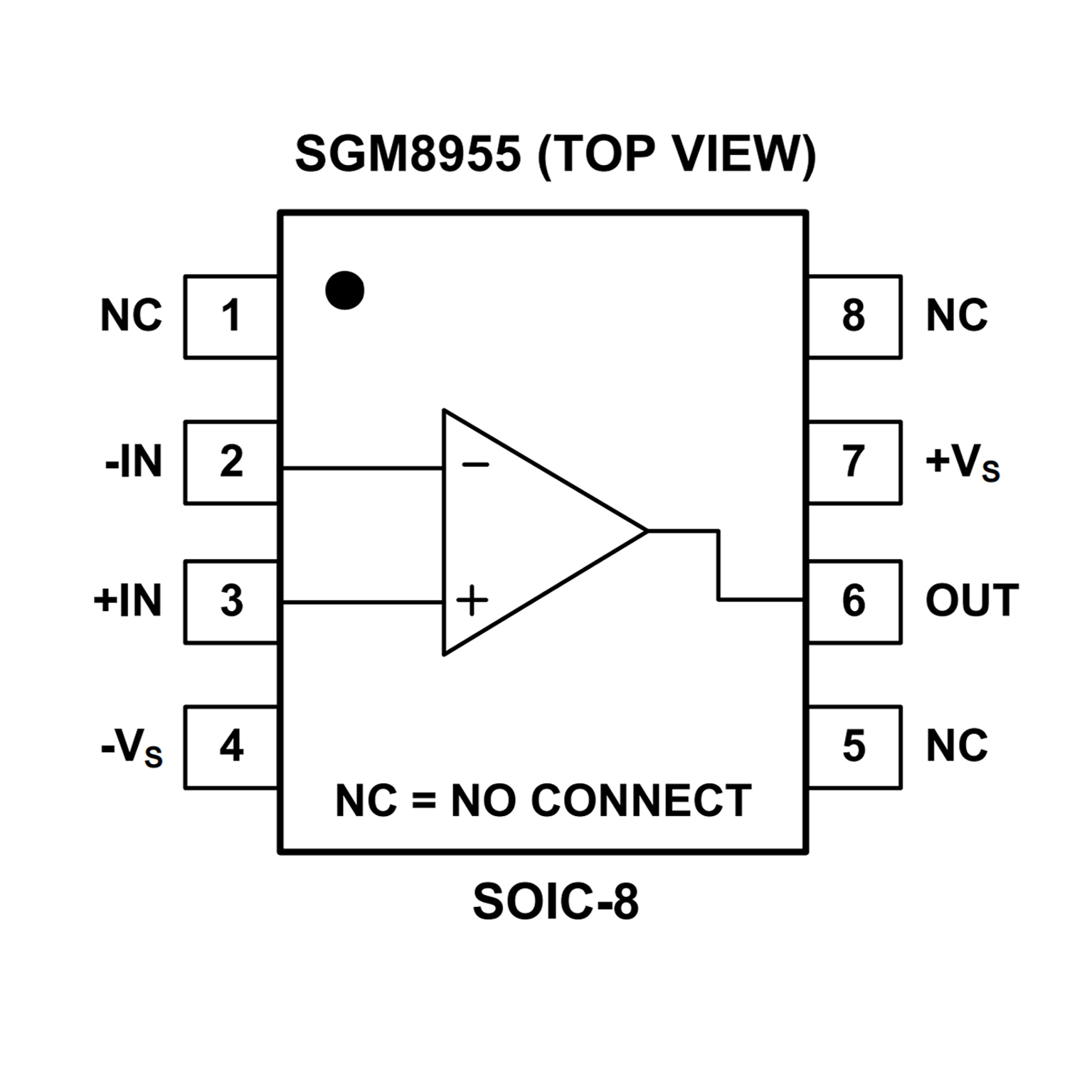

PIN CONFIGUTION
优势替代
FEATURES
• Low Input Offset Voltage: ±150 µV (maximum)
• Low Noise: 2.2 µVP-P (typical, 0.1 Hz to 10 Hz)
• Rail-to-Rail Output
• Low Input Offset Current: 0.3 nA (typical)
• Low Quiescent Current: 25 µA (maximum)
• Power Supply Voltage: 2.3V to 5.5V
• Unity Gain Stable
• Industrial Temperature Range: -40°C to +85°C
• No Phase Reversal
• Available in Single, Dual and Quad Packages

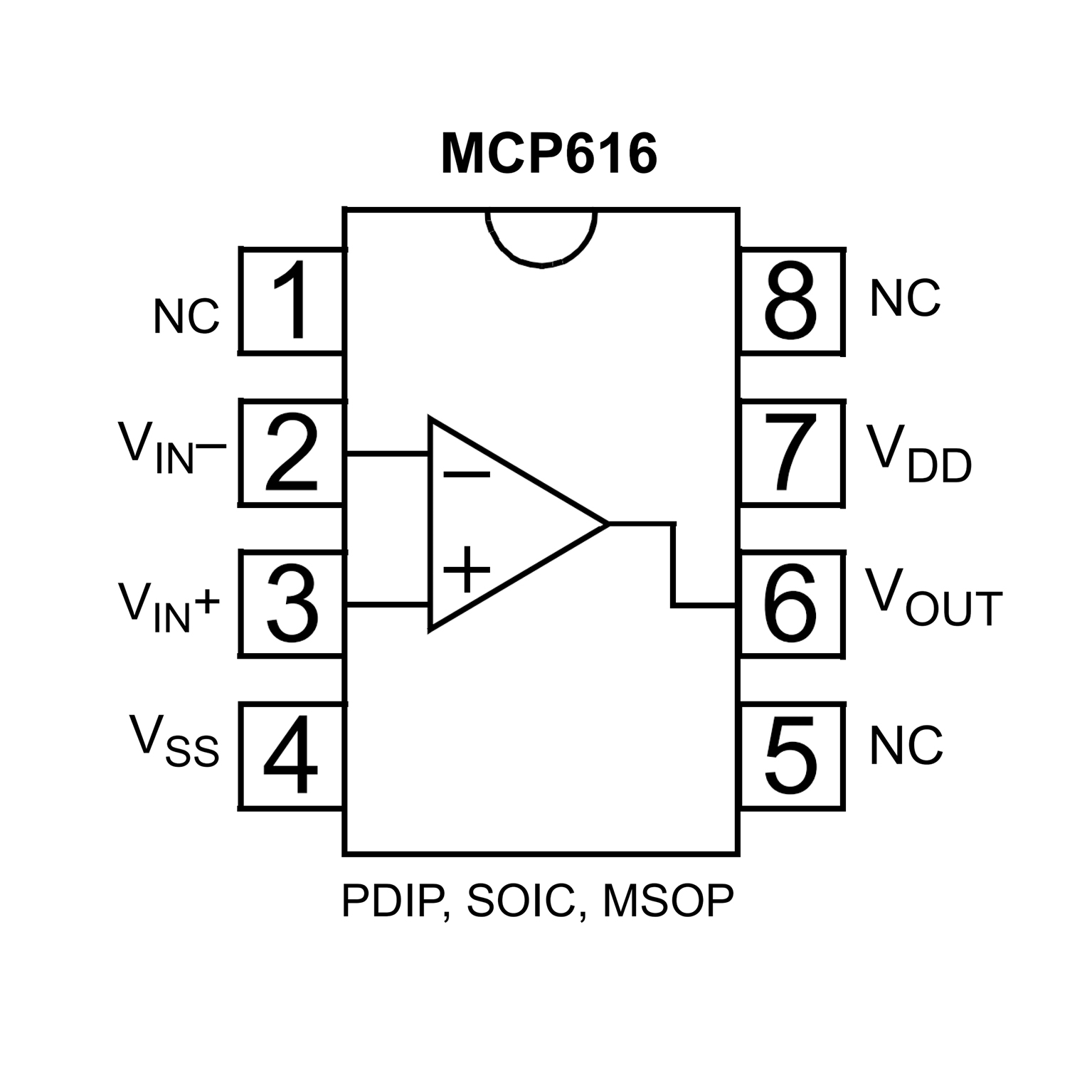

PIN CONFIGUTION
