High precision Operational Amplifier,SGM8956 Replace MCP6062.
SGM8956
SGM8956.pdf
SGM8956.pdfFEATURES
• Low Offset Voltage: 50μV (MAX)
• Low 0.1Hz to 10Hz Noise: 2μVP-P
• Quiescent Current: 20μA/Amplifier (TYP)
• Integrated RFI Filter
• Single-Supply Operation
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input and Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8956 Available in Green SOIC-8, MSOP-8
and TDFN-3×3-8L

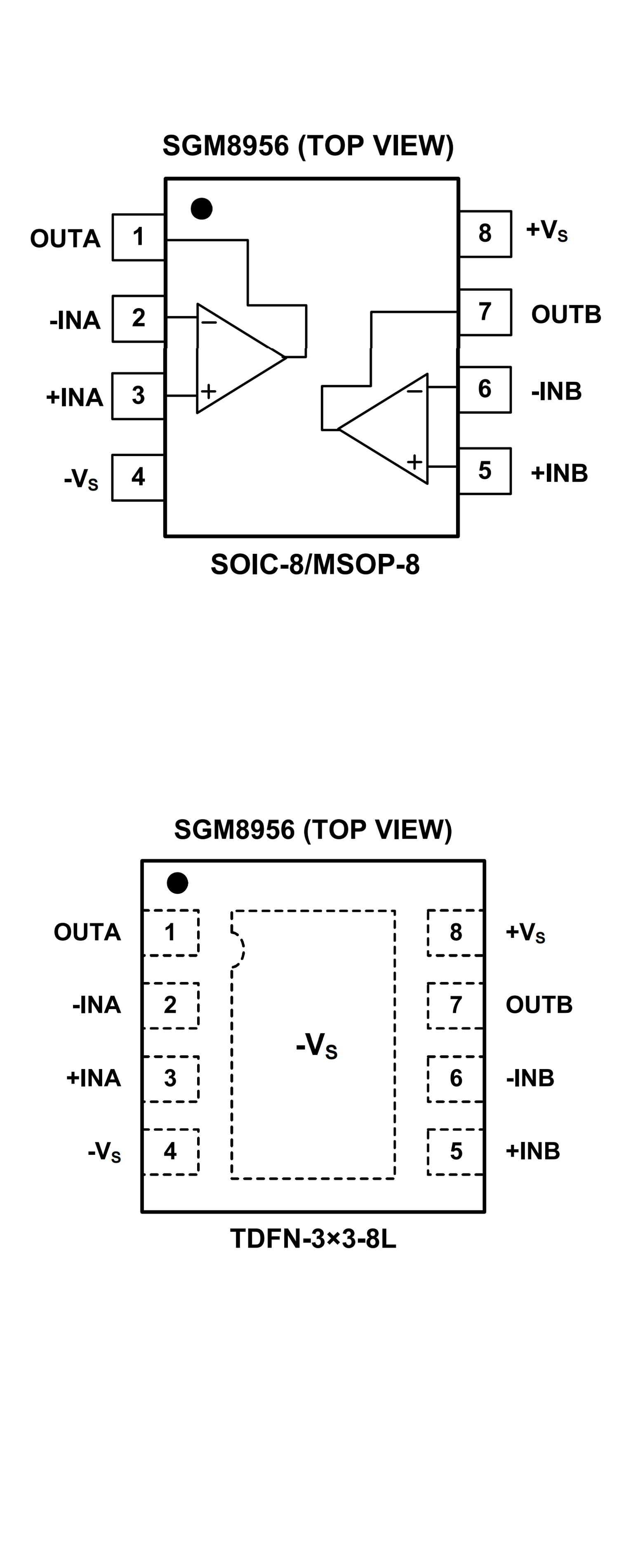

PIN CONFIGUTION
优势替代
FEATURES
• Low Offset Voltage: ±150 µV (maximum)
• Low Quiescent Current: 60 µA (typical)
• Rail-to-Rail Input and Output
• Wide Supply Voltage Range: 1.8V to 6.0V
• Gain Bandwidth Product: 730 kHz (typical)
• Unity Gain Stable
• Extended Temperature Range: -40°C to +125°C
• No Phase Reversal

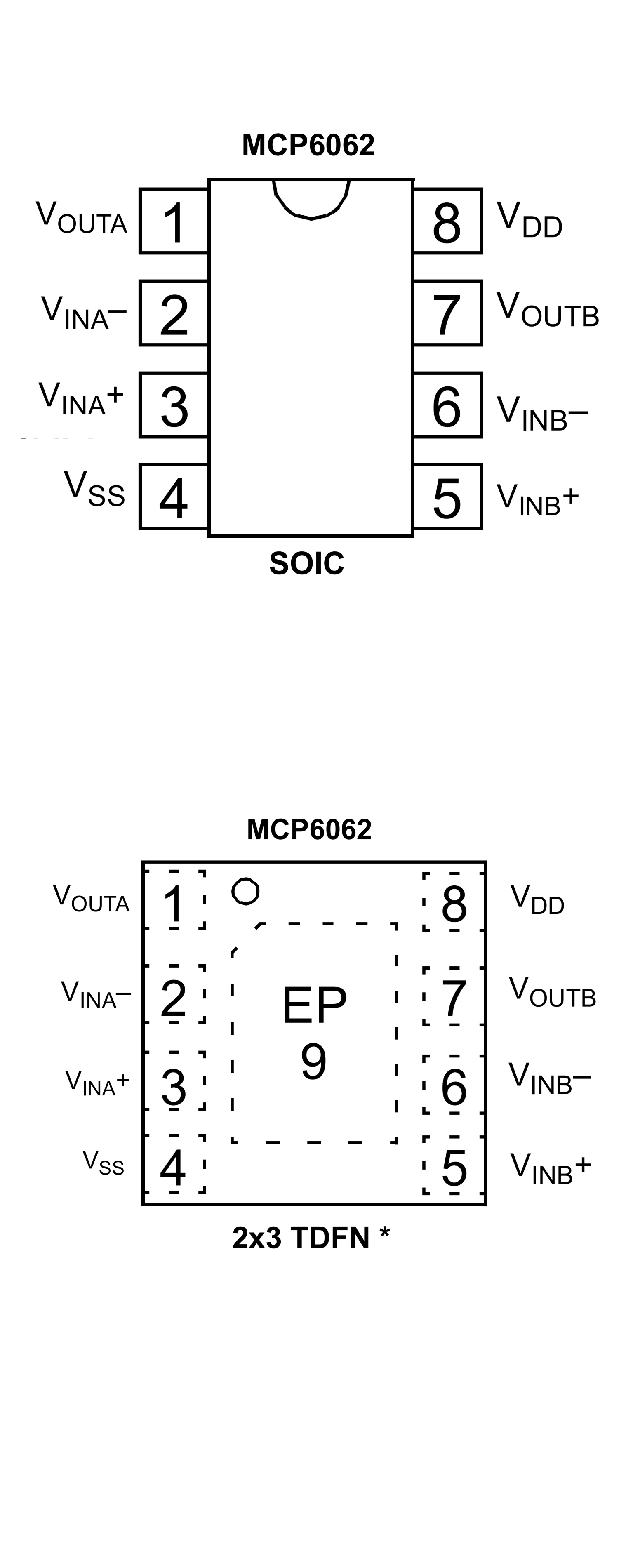

PIN CONFIGUTION
