High Precision Operational Amplifier, SGM8956 Replace OPA2330.
SGM8956
SGM8956.pdf
SGM8956.pdfFEATURES
• Low Offset Voltage: 50μV (MAX)
• Low 0.1Hz to 10Hz Noise: 2μVP-P
• Quiescent Current: 20μA/Amplifier (TYP)
• Integrated RFI Filter
• Single-Supply Operation
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input and Output
• Small Packaging: SGM8956 Available in Green
SOIC-8, MSOP-8 and TDFN-3×3-8L

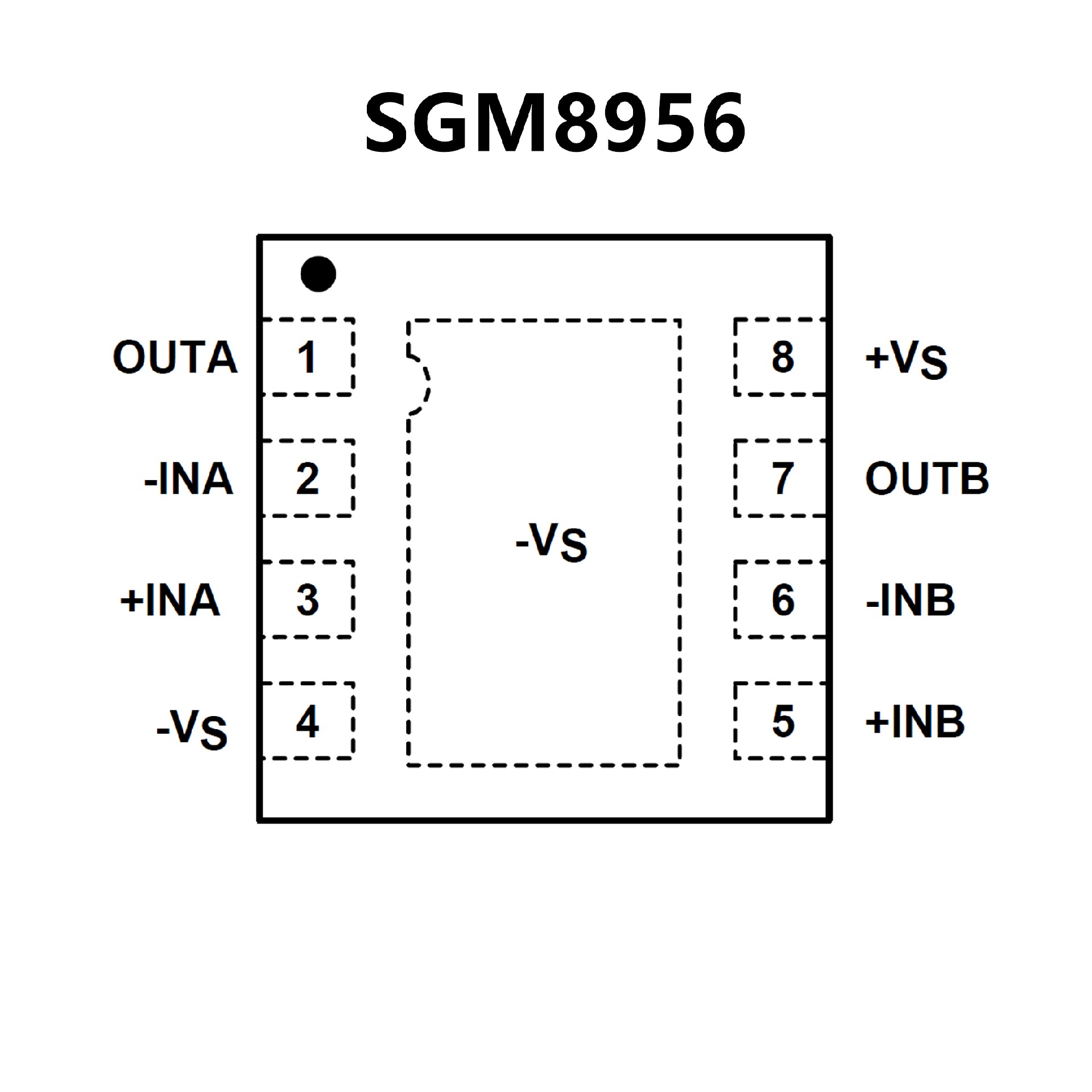

PIN CONFIGUTION
优势替代
FEATURES
• Unmatched Price Performance
• Low Offset Voltage: 50 μV (Maximum)
• Zero Drift: 0.25 μV/°C (Maximum)
• Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
• Quiescent Current: 35 μA (Maximum)
• Supply Voltage: 1.8 V to 5.5 V
• Rail-to-Rail Input and Output
• Internal EMI Filtering
• microSize Packages: DSBGA, SC70, VQFN

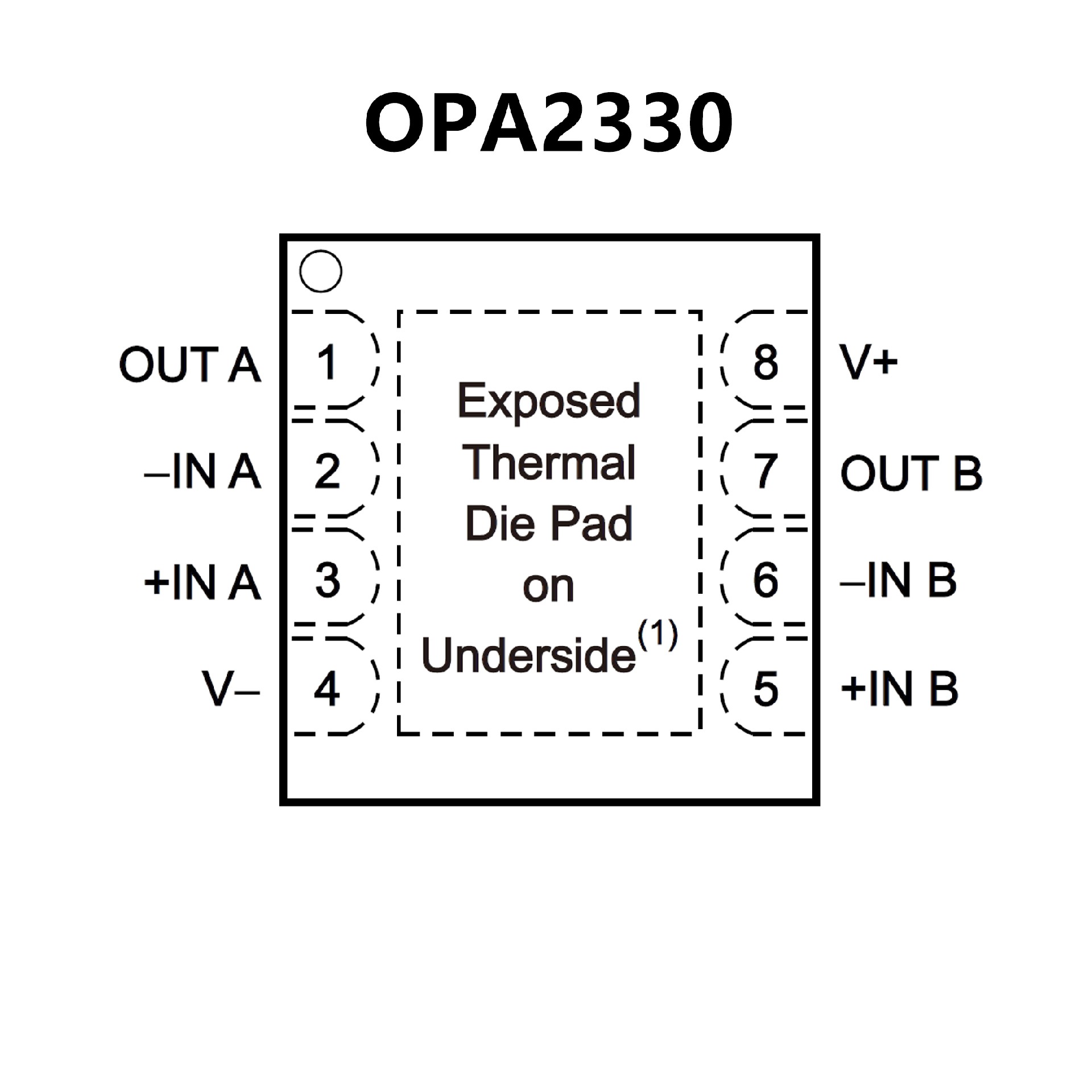

PIN CONFIGUTION
