High Precision Operational Amplifier, Replace MCP6V12
SGM8957-2
SGM8957-2.pdf
SGM8957-2.pdfFEATURES
• Low Offset Voltage: 25μV (MAX)
• Low 0.1Hz to 10Hz Noise: 2μVP-P
• Quiescent Current: 20μA/Amplifier (TYP)
• Single Supply Operation
• Integrated RFI Filter
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input/Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging: SGM8957-2 Available in Green
SOIC-8, MSOP-8 and TDFN-3×3-8L Packages

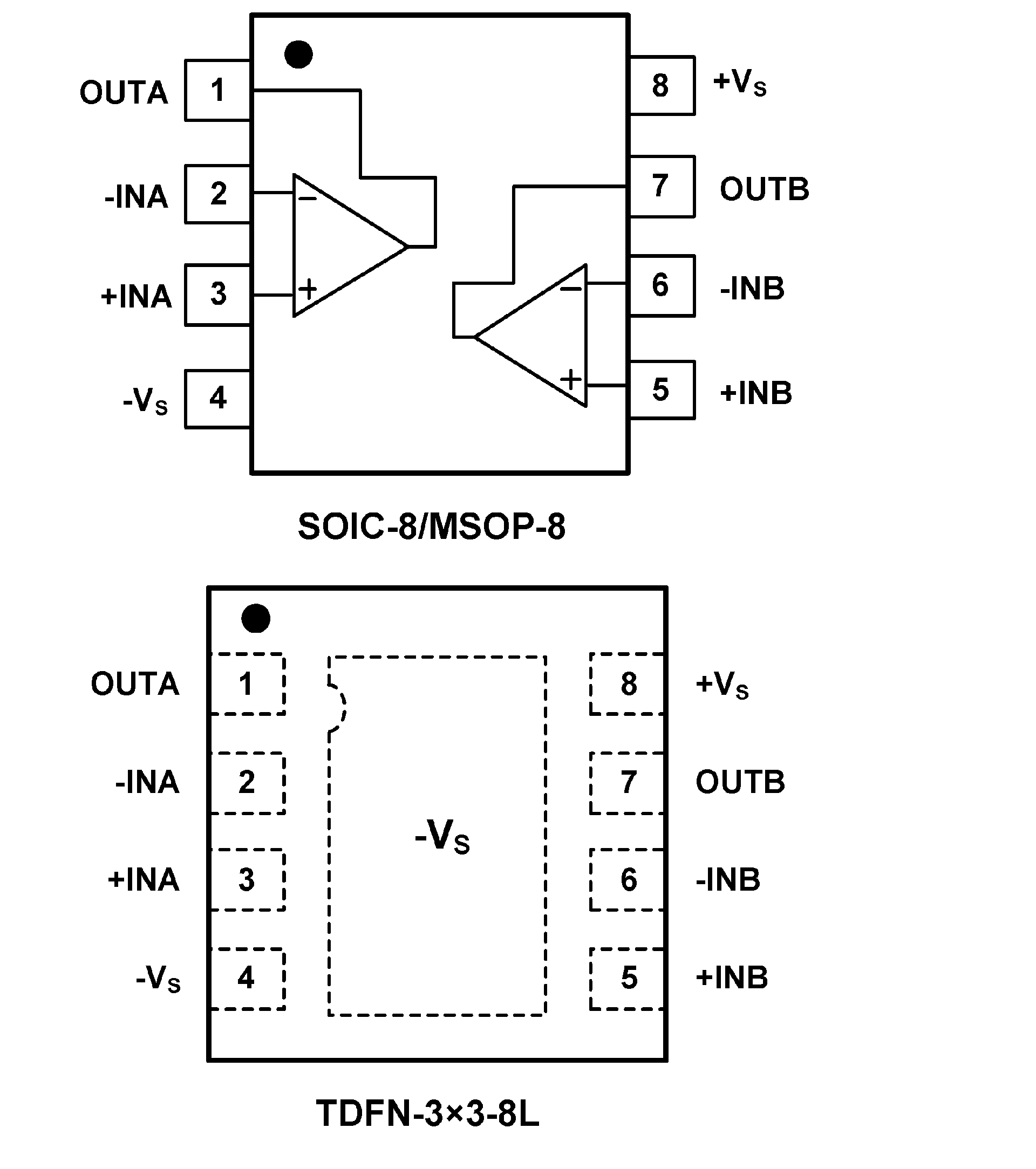

PIN CONFIGUTION
优势替代
FEATURES
• High DC Precision:
- VOS Drift: ±50 nV/°C (maximum)
- AOL: 112 dB (minimum, VDD = 5.5V)
- PSRR: 118 dB (minimum, VDD = 5.5V)
- CMRR: 119 dB (minimum, VDD = 5.5V)
• Low Power and Supply Voltages:
- IQ: 7.5 μA/amplifier (typical)
- Wide Supply Voltage Range: 1.6V to 5.5V
• Easy to Use:
- Rail-to-Rail Input/Output
- Gain Bandwidth Product: 80 kHz (typical)
PIN CONFIGUTION
