High Precision Operational Amplifier, SGM8957-2 Replace OPA2333.
SGM8957-2
SGM8957-2.pdf
SGM8957-2.pdfFEATURES
• Low Offset Voltage: 25μV (MAX)
• Low 0.1Hz to 10Hz Noise: 2μVP-P
• Quiescent Current: 20μA/Amplifier (TYP)
• Single Supply Operation
• Integrated RFI Filter
• Supply Voltage Range: 1.8V to 5.5V
• Rail-to-Rail Input/Output
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8957-2 Available in Green SOIC-8, MSOP-8 and
TDFN-3×3-8L Packages

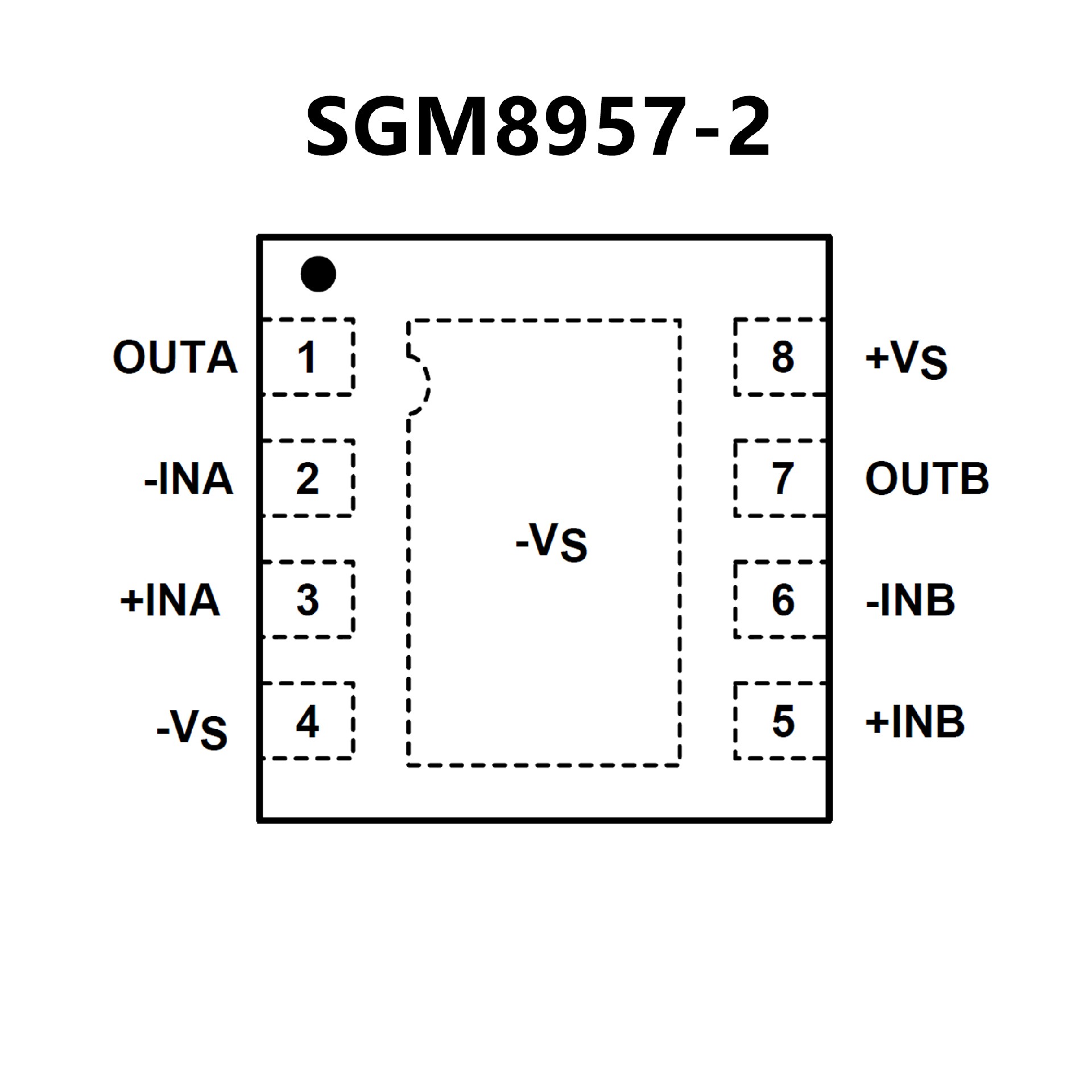

PIN CONFIGUTION
优势替代
FEATURES
• Low Offset Voltage: 10 μV (Maximum)
• Zero Drift: 0.05 μV/°C (Maximum)
• 0.01-Hz to 10-Hz Noise: 1.1 μVPP
• Quiescent Current: 17 μA
• Single-Supply Operation
• Supply Voltage: 1.8 V to 5.5 V
• Rail-to-Rail Input/Output

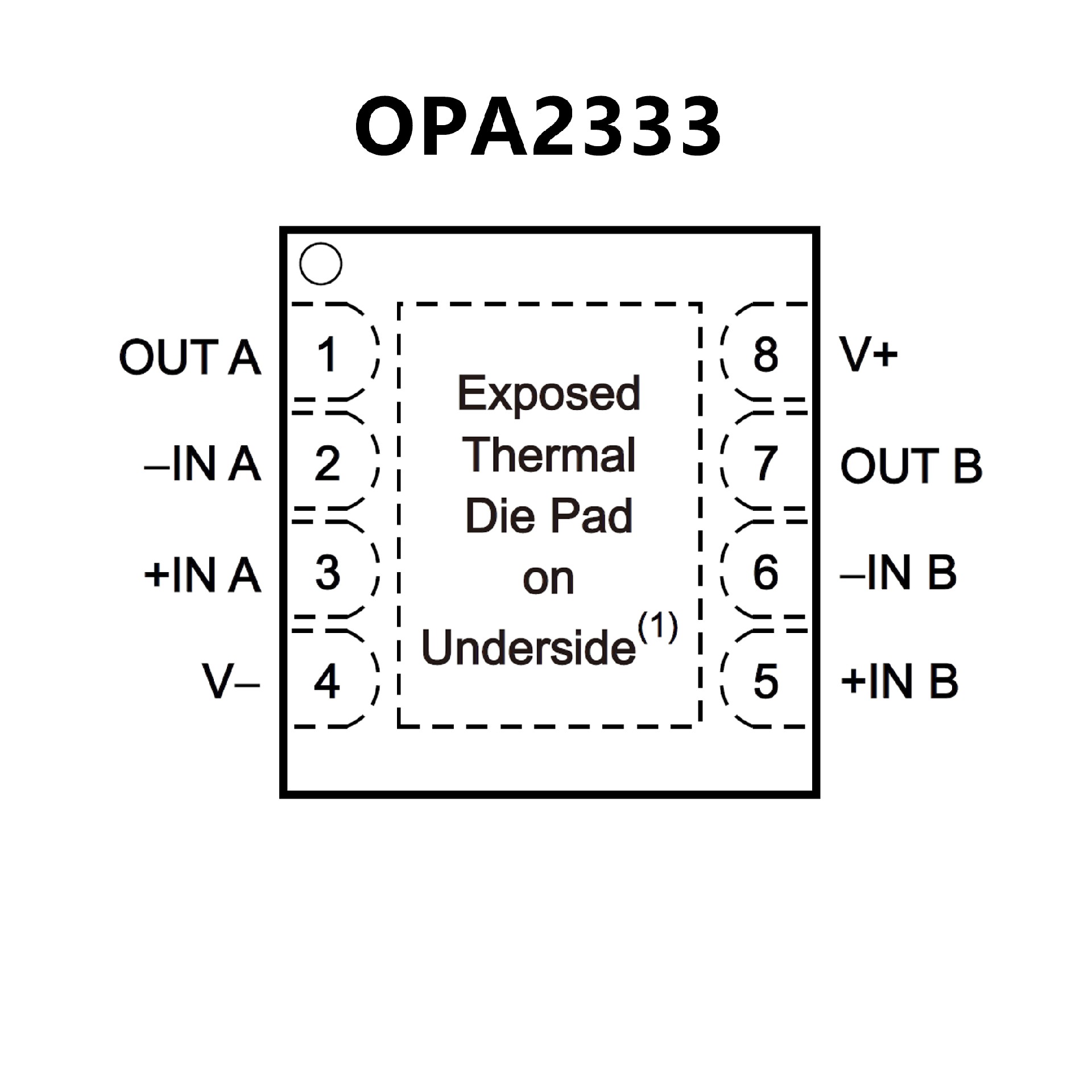

PIN CONFIGUTION
